Assembling the extractor hood

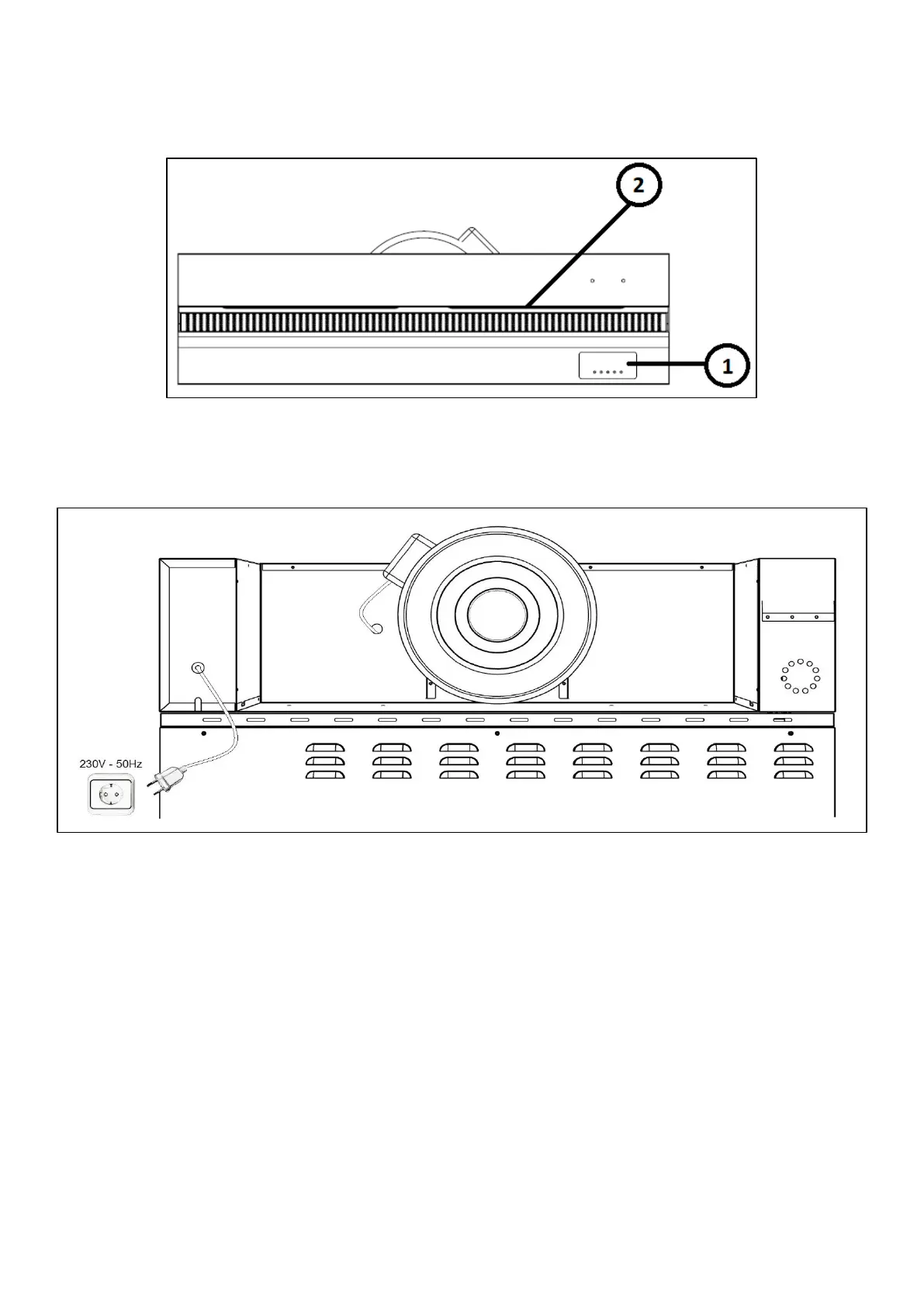

The hood designed for mechanical ovens is always fitted with a light (position 2) and controls to turn on the light (position 1).
If fitted with an extractor motor, the controls (position 1) can also be used to switch on and adjust the motor.
It must be positioned above the oven and secured with the appropriate screws (see the instructions attached to the hood’s
packaging).
The hood must be connected to a single-phase socket (10 A, 230 V, 50 Hz).
