Planar ep46L - Power Input; Signal Source Input

Power Input
16 ep46L/ep55L User Manual
If your installation included a lot of construction or dust, it is highly recommended
that you clean all of the screens after the wall installation and configuration are
complete.
Power Input
Signal Source Input

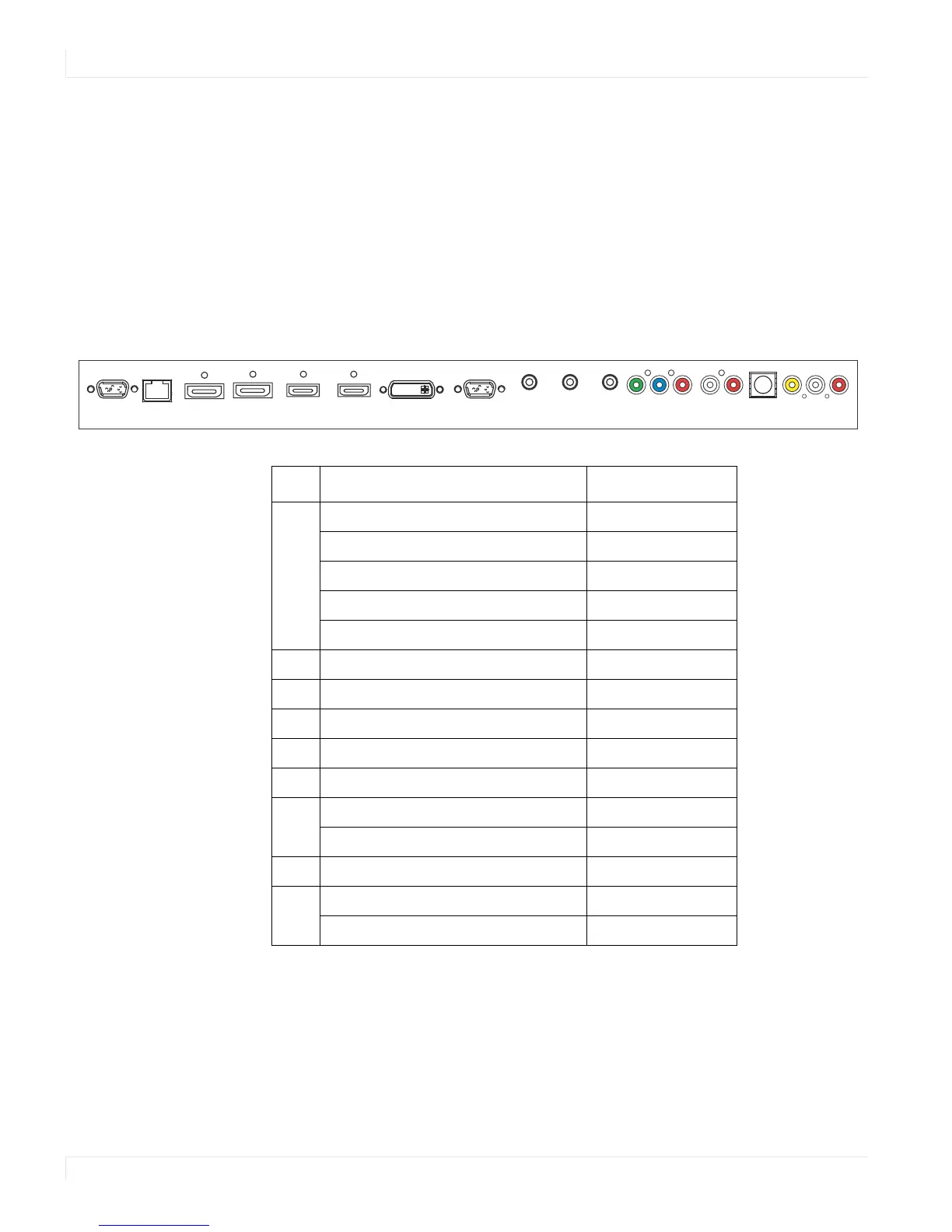

Source inputs are located on the rear of the display.
LAN
DisplayPort HDMI 1 HDMI 2
VGADVI-D
Touch USB
PC
Audio
In
IR
Extender
Line
Out
COMPONENTRS232C Audio InS-Video Video Audio In
Name Connector
RS232C input x 1 D-Sub 9-pin
LAN input x 1 RJ45
DisplayPort x 1 DisplayPort
HDMI 1 input x 1 HDMI
HDMI 2 input x 1 HDMI
DVI-D input x 1 D-Sub 24-pin
VGA (PC) input x 1 D-Sub 15-pin
PC audio in x 1 Mini jack
IR Extender x 1 Mini jack
Lineout x 1 Mini jack
Y-Pb-Pr (Y-Cb-Cr) input x 1 RCA G/B/R
Audio In for Component input x 1 RCA L/R
S-video input x 1 Mini Din 4-pin
Video (composite) input x 1 RCA
Audio In for S-Video/Video input x 1 RCA L/R
