22
2. Make sure both sides of the SFP transceiver are with the same
media type or WDM pair, for example, 100BASE-FX to 100BASE-FX,
100BASE-BX20-U to 100BASE-BX20-D.
3. Check whether the ber-optic cable type matches with the SFP
transceiver model.
To connect to MFB-FX SFP transceiver, use the multi-mode ber
cable, with one side being the male duplex LC connector type.
To connect to MFB-F20/F40/F60/FA20/FB20 SFP transceiver, use
the single-mode ber cable, with one side being the male duplex
LC connector type.
Connecting the ber cable
1. Insert the duplex LC connector on the network cable into the SFP
transceiver.
2. Connect the other end of the cable to a device, switches with SFP
installed, to ber NIC on a workstation or a Media Converter.
3. Check the LNK/ACT LED of the SFP slot of the switch / converter.
Make sure that the SFP transceiver is operating correctly.
2.1.6.2 Removing the Transceiver Module
1. Make sure there is no network activity by consulting or checking with
the network administrator. Or through the management interface of
the switch/converter (if available) to disable the port in advance.
2. Remove the Fiber Optic Cable gently.
3. Turn the lever of the MGB/MFB module to a horizontal position.
4. Pull out the module gently through the lever.
12
Series

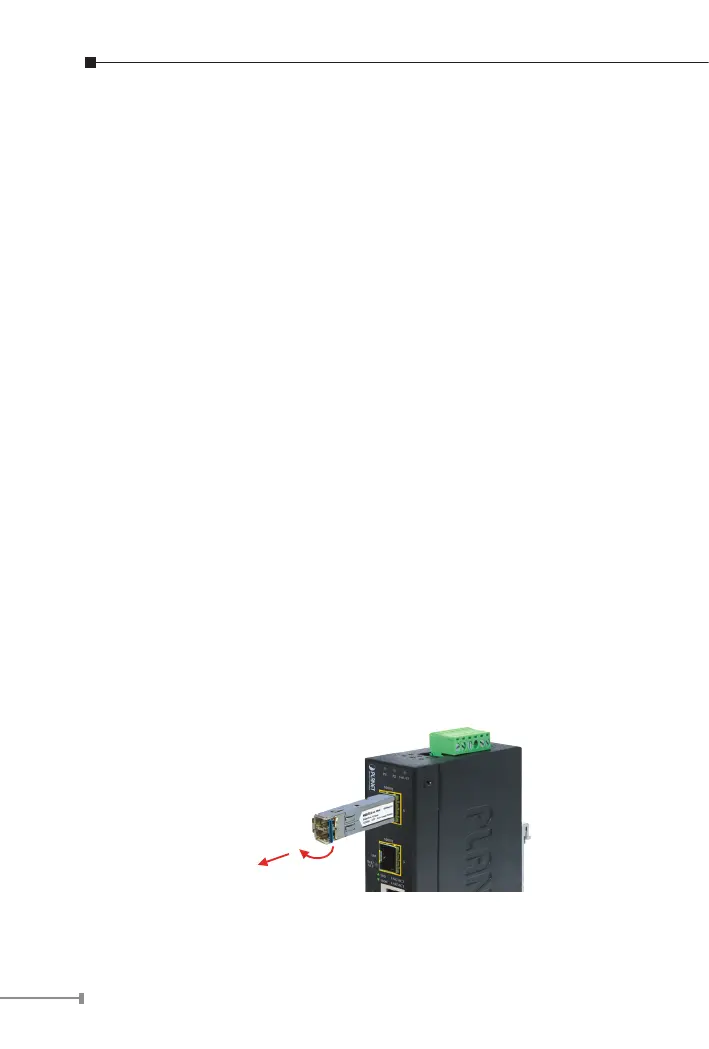

Figure 2-4: Pull Out from the Transceiver
