User’s Manual of IVS-H125 Series
15
2.3.2 Chassis Installation and Rack Mounting (IVS-H125 only)
To install the Video Server in a 10-inch or 19-inch with standard rack, follow the instructions
described below.
1. Place your IVS-H125 on a hard flat surface, with the front panel positioned towards your front
side.
2. Carefully slide in the module until it is fully and firmly fitted into the slot of the chassis.

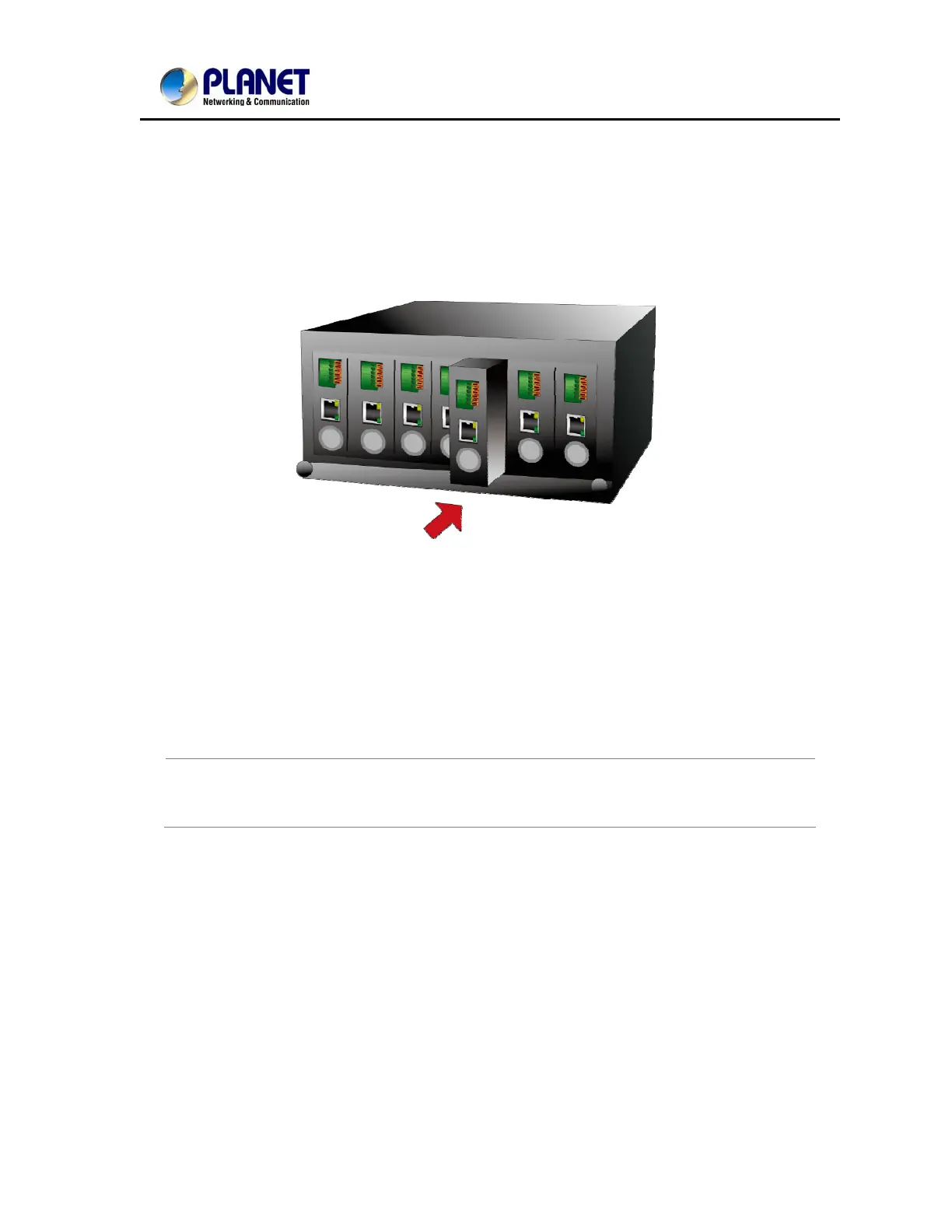

Figure 2-1: Insert a media converter into an available slot
3. Attach a rack-mount bracket to each side of the Chassis with supplied screws attached to the
package.
4. After the brackets are attached to the chassis, use suitable screws to securely attach the
brackets to the rack, as shown in Figure 2-2.
5. Precede with the steps 1~4 of session 2.3.1 Stand-alone Installation to connect the network
cabling and supply video source to Video Server.
Caution: You must use the screws supplied with the mounting brackets. Damage caused to
the parts by using incorrect screws would invalidate your warranty.
