1.3.2 The Rear Panel

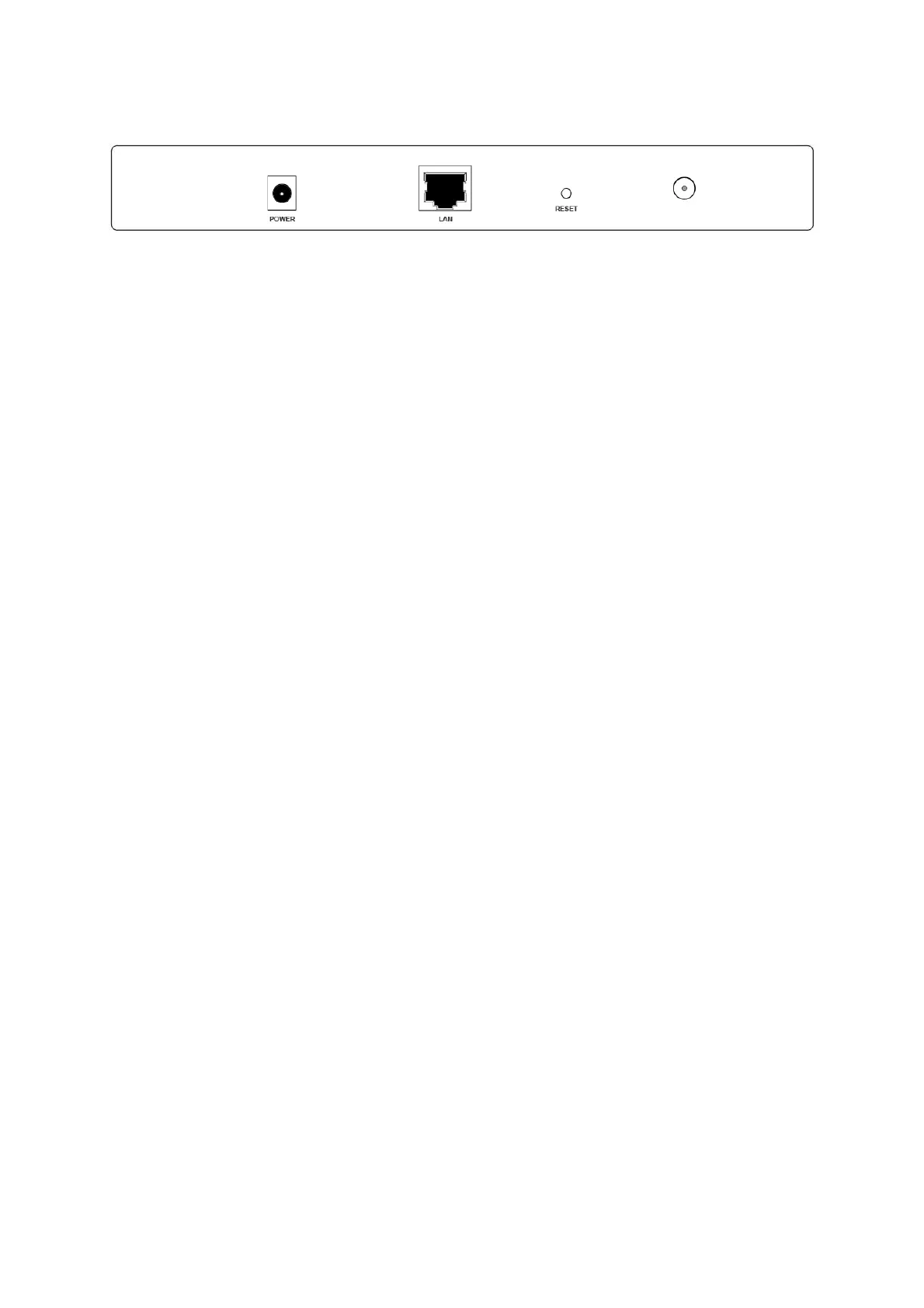

Figure 1-2
Viewed from left to right, the following parts are located on the rear panel of WNAP-1110.
POWER: The power port connects to the power adapter provided with the WNAP-1110 Wireless
Access Point.
LAN: One LAN 10/100Mbps RJ45 port connects to a network device, such as a switch or a router.
RESET: The Reset button is used to restore the AP’s factory default settings. There are two ways
to reset the Access Point’s factory defaults:
z
Method one: With the AP booted ready, use a pin to press and hold the reset button (about 5
seconds) until the System LED becomes quick-flash from slow-flash. And then release the
button and wait the AP to reboot to its factory default settings.
z
Method two: Restore the default settings from “System Tools > Factory Defaults” of the
AP's Web-based management page.
Wireless antenna: The external antenna is used to transmit and receive wireless data.
)
Note:
Ensure the AP is powered on before it restarts completely.
