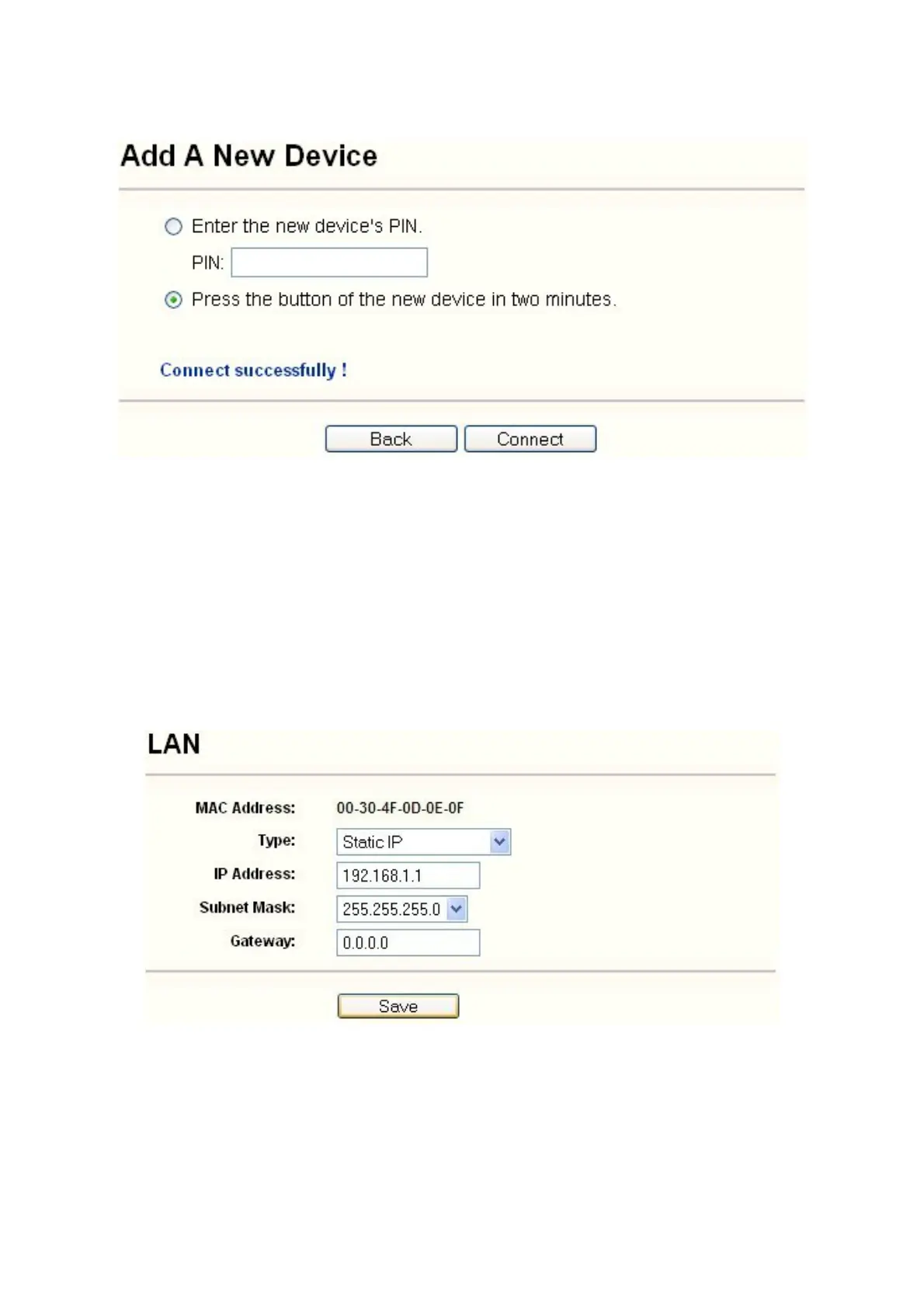

You will see the following screen when the new device has successfully connected to the network.
)
Note:
a. The WPS LED on the AP will light green for five minutes if the device has been successfully
added to the network.
b. The WPS function cannot be configured if the Wireless function of the AP is disabled. Please
make sure the Wireless function is enabled before configuring the WPS.
4.4 Network
The Network option allows you to customize your local network manually by changing the default
settings of the AP.
Selecting Network will enable you to configure the IP parameters of Network on this page.
Figure 4-6 Network
¾
Type - Select Dynamic IP to get IP address from DHCP server or select Static IP to
configure IP address manually from the drop-down list.
¾
IP Address - Enter the IP address of your AP in dotted-decimal notation (factory default
setting is 192.168.1.1).
¾
Subnet Mask - An address code that determines the size of the network. Normally use
19
