TECHNICAL SPECIFICATIONS
56 Planmeca Intra X-ray Unit
User’s Manual
The nominal x-ray voltage together with the highest x-ray tube current
obtainable from the high-voltage generator when operated at it’s highest
x-ray tube voltage
70 kV, 8 mA
The nominal x-ray tube current when operated at the highest x-ray tube
voltage
8 mA, 70 kV
The x-ray tube voltage and tube current which result in the highest electric
output power
70 kV, 8 mA
The nominal electric power for a load time of 0.1 sec and at the nominal
x-ray tube voltage
1.4 kW at 70 kV, 8 mA

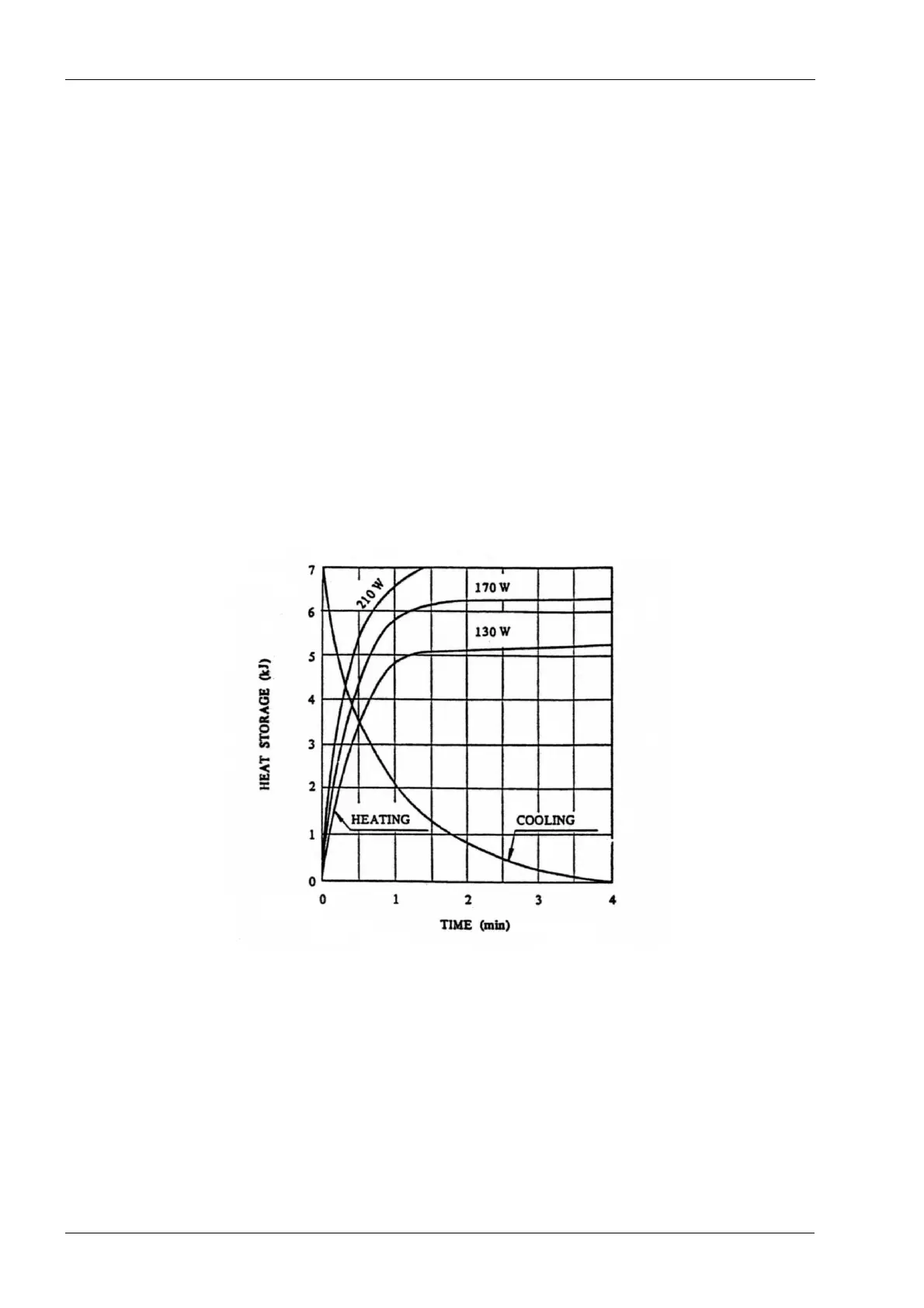

Anode heating/cooling curve of the X-ray tube

Planmeca intra Specifications

General

Manufacturer	Planmeca
Model	Planmeca Intra
Frequency	50/60 Hz
Tube Voltage	60-70 kV
Tube Current	7 mA
Type	Dental X-ray Unit
Voltage	100-240 V
Weight	Varies depending on configuration; refer to specific model documentation
