Planmeca intra - Page 61

Planmeca Intra X-ray Unit 57
TECHNICAL SPECIFICATIONS
User’s Manual

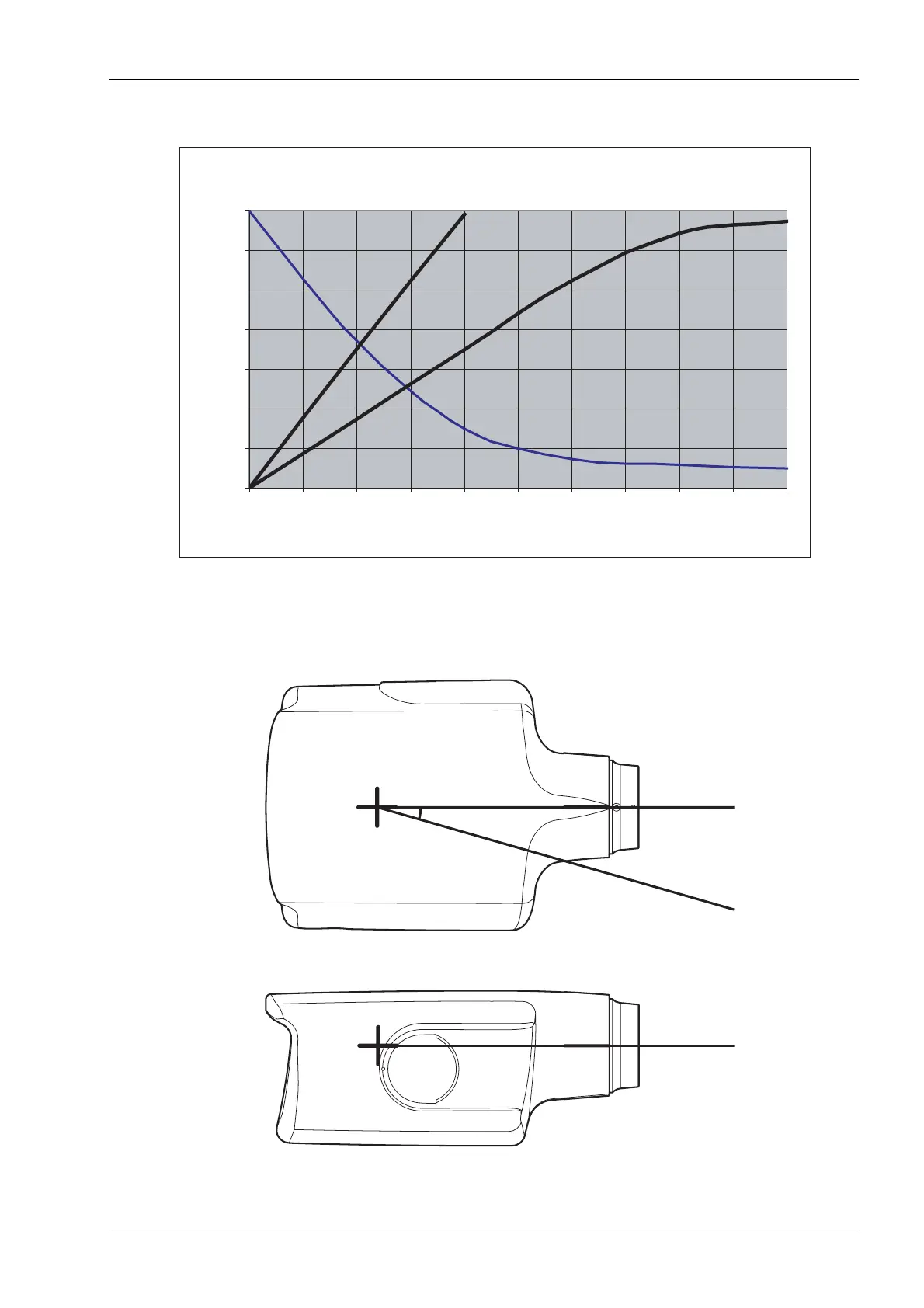

X-ray tube assembly heating/cooling curve
Reference axis to which the target angle and the focal spot characteristics
of the tube head assembly refer
X-ray tube assembly heating/cooling curve
0
20
40
60
80
100
120
140
0 30 60 90 120 150 180 210 240 270 300
Time (min)
Heat Storage (kJ)
18 W
13 W
Cooling
16°
