Plustek PT2160 - Page 49

45

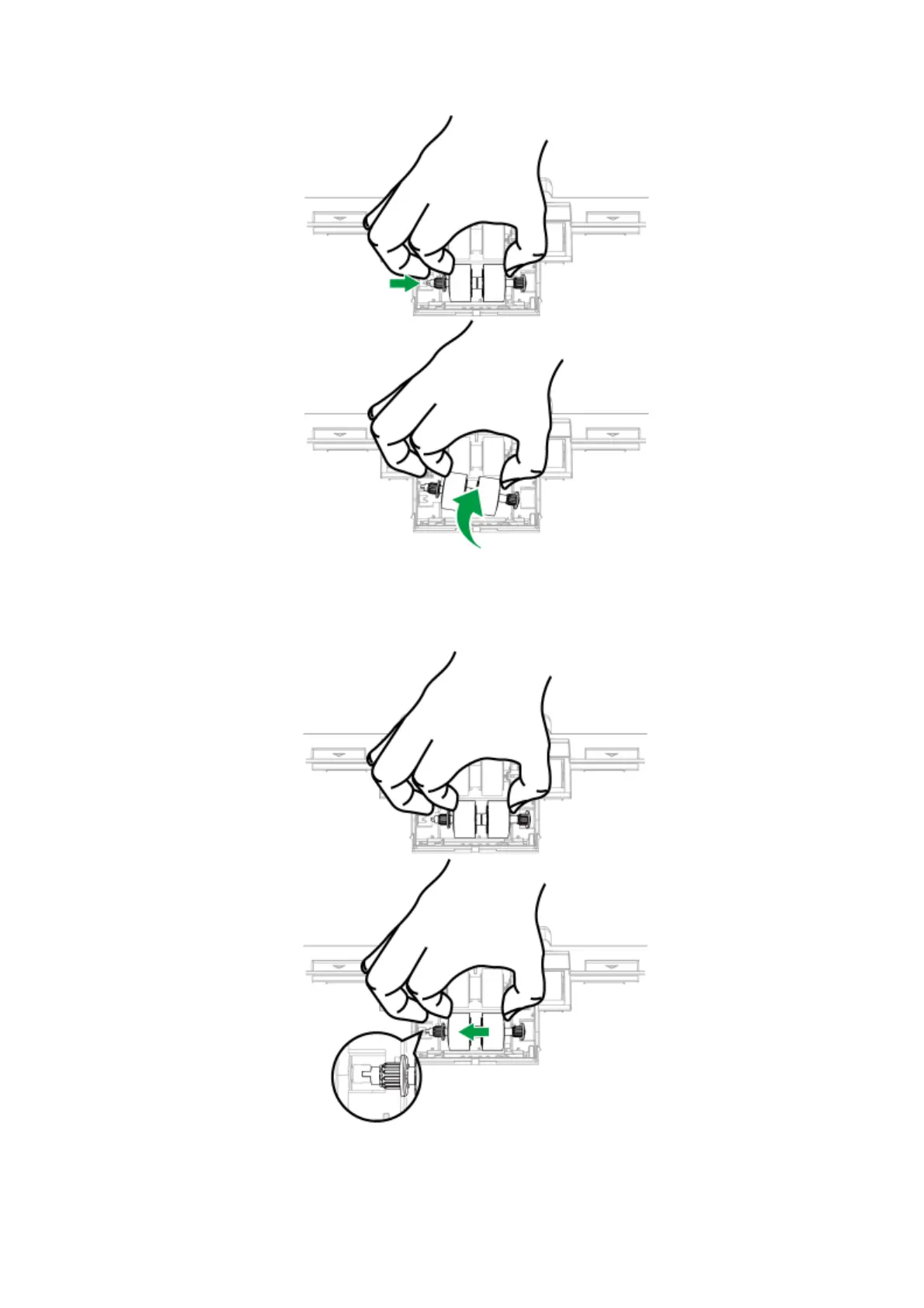

4. Install the new separation roller with the shaft by aligning and inserting the roller
with the shaft onto the roller pitman on the scanner (in the direction of arrow
shown in the picture).
5. Roll the roller to make sure the roller is positioned at the right place. Close the
roller cover.
