Follow the recommended procedure in the indicated order to install the Proportioner:
1. Insert the main power cable by passing it through the strain relief at the bottom of the
Electrical Console and connect as shown in the above diagram.

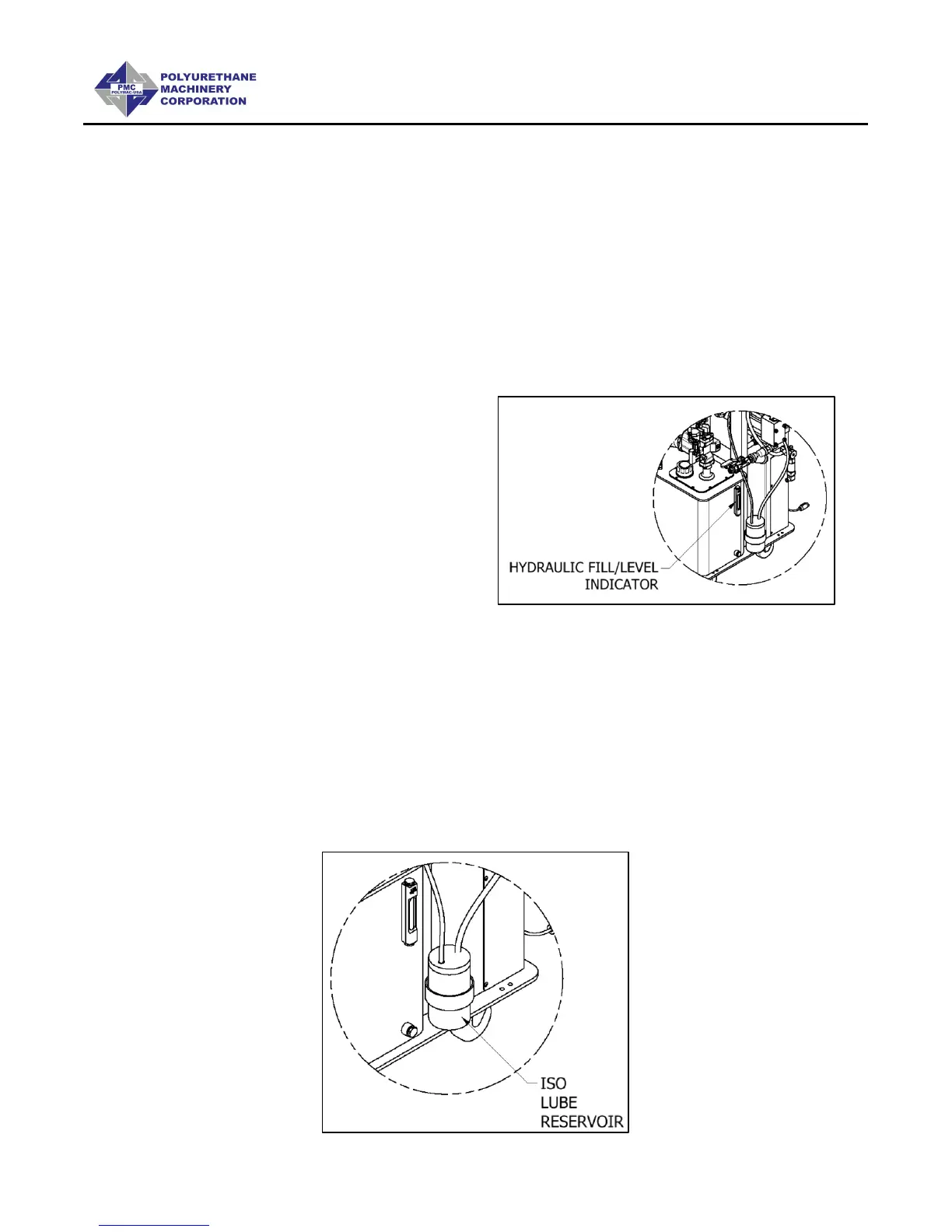

2. Fill the Hydraulic Reservoir with 20 gallons (76 Liters) of approved hydraulic fluid. See
page 56 for specifications.
NOTE! Do not fill the tank to maximum capacity; use the Visual Level
Indicator on the tank to make sure the amount of hydraulic fluid is not more
than 20 gallons (76 liters) or 80% of the tank max capacity.
3. Check the level of the hydraulic fluid in
the Hydraulic Pump Case: Disconnect
the Hydraulic Hose from the 90 fitting
and remove the Fitting from Hydraulic
Case. Add fluid as required to the top of
threaded hole. Reattach Fitting and
Hydraulic Hose.
NOTE! Ensure that the Emergency
Stop is not engaged.
4. Three-phase Proportioner Only: Check the Electric Motor to ensure rotation is
clockwise when viewing the end of the Electric Motor. A counter clockwise rotation
indicates two of the incoming power leads need to be reversed. Recheck rotation before
proceeding with Installation.
CAUTION! Ensure Main Power Switch is OFF and incoming power is
locked OFF before reversing power leads.
5. Fill the Lube Reservoir with PMC Pump Lube or suitable diluents. It is not necessary to
prime the system.
