PMC PH-40 - Part Identification; Pumpline Assembly

1
An asterisk (*) next to an item number represents a part that is different for specific models.
See the description in the part list table for details.
57

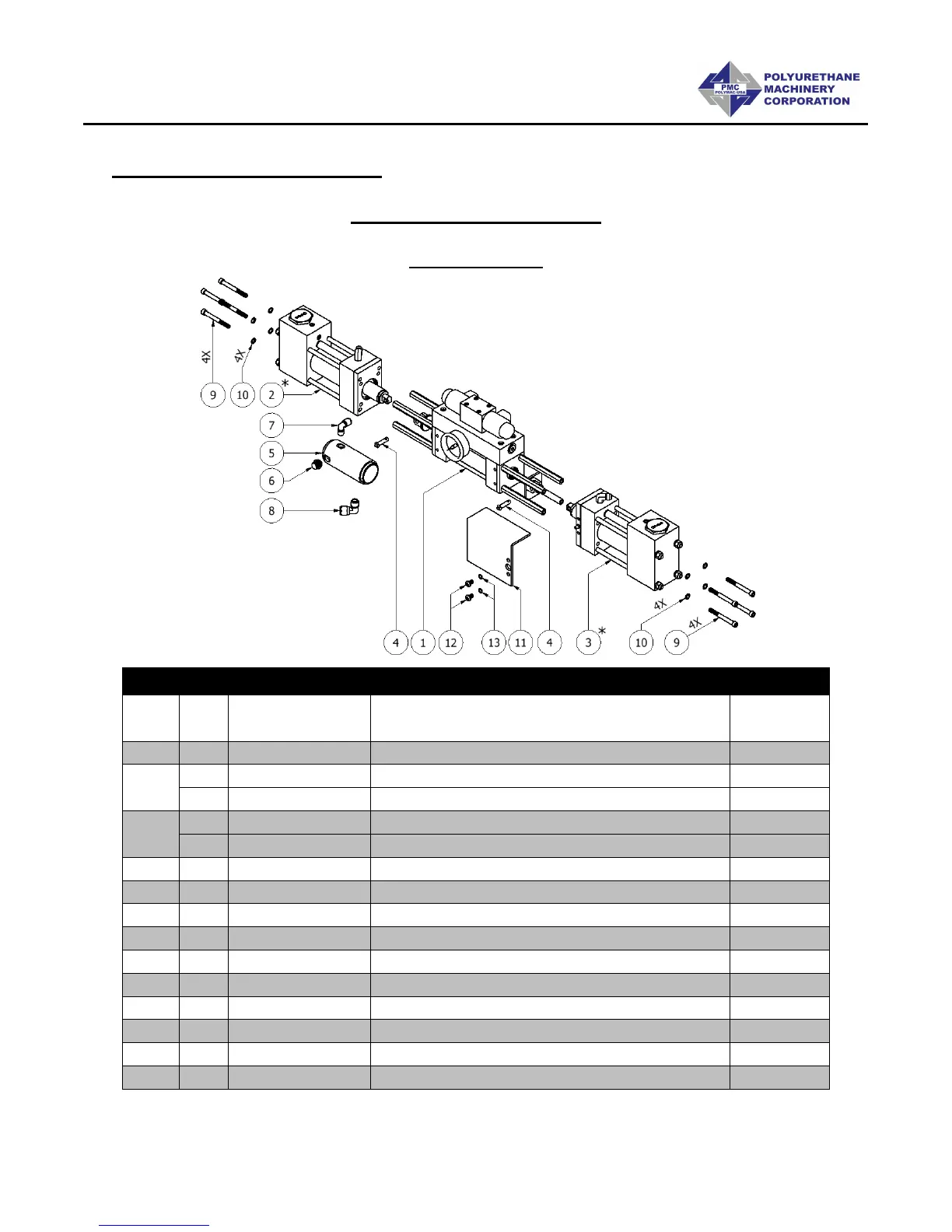

PART IDENTIFICATION
PUMPLINE ASSEMBLY
(PL-1A/PL-2)
PUMPLINE ASSEMBLY (PL-1A/PL-2)
ITEM
QTY
PART NUMBER
DESCRIPTION
FOR
PUMPLINE
1
1
HI-01
HYDRAULIC CYLINDER COMPLETE (SEE PAGE 58)
ALL
2*
1
PU-05001-120
“A” PUMP ASSEMBLY, SIZE 120 (SEE PAGE 64)
PL-1A
1
PU-05001-80
“A” PUMP ASSEMBLY, SIZE 80 (SEE PAGE 66)
PL-2
3*
1
PU-05002-120
“R” PUMP ASSEMBLY, SIZE 120 (SEE PAGE 62)
PL-1A
1
PU-05002-80
“R” PUMP ASSEMBLY, SIZE 80 (SEE PAGE 62)
PL-2
4
2
PU-05007
CLEVIS PIN
ALL
5
1
PU-05003
LUBE CYLINDER
ALL
6
1
RA-00065A
PUMP CYLINDER PLUG
ALL
7
1
RA-00066A
CBMB 90° MALE ELBOW NPT
ALL
8
1
RA-00067A
CBMB 90° MALE ELBOW NPT
ALL
9
8
PU-05008
MOUNTING BOLT
ALL
10
8
PU-05008-1
SERRATED WASHER 5/16
ALL
11
1
PU-01027
ACTIVATOR PLATE COVER
ALL
12
2
FLOOR STOCK
5/16-18 X 1/2 BHCS
ALL
13
2
FLOOR STOCK
011 O-RING
ALL
