PMC PH-40 - Pump Base Assembly

PART IDENTIFICATION
1
An asterisk (*) next to an item number represents a part that is different for specific models.
See the description in the part list table for details.
69

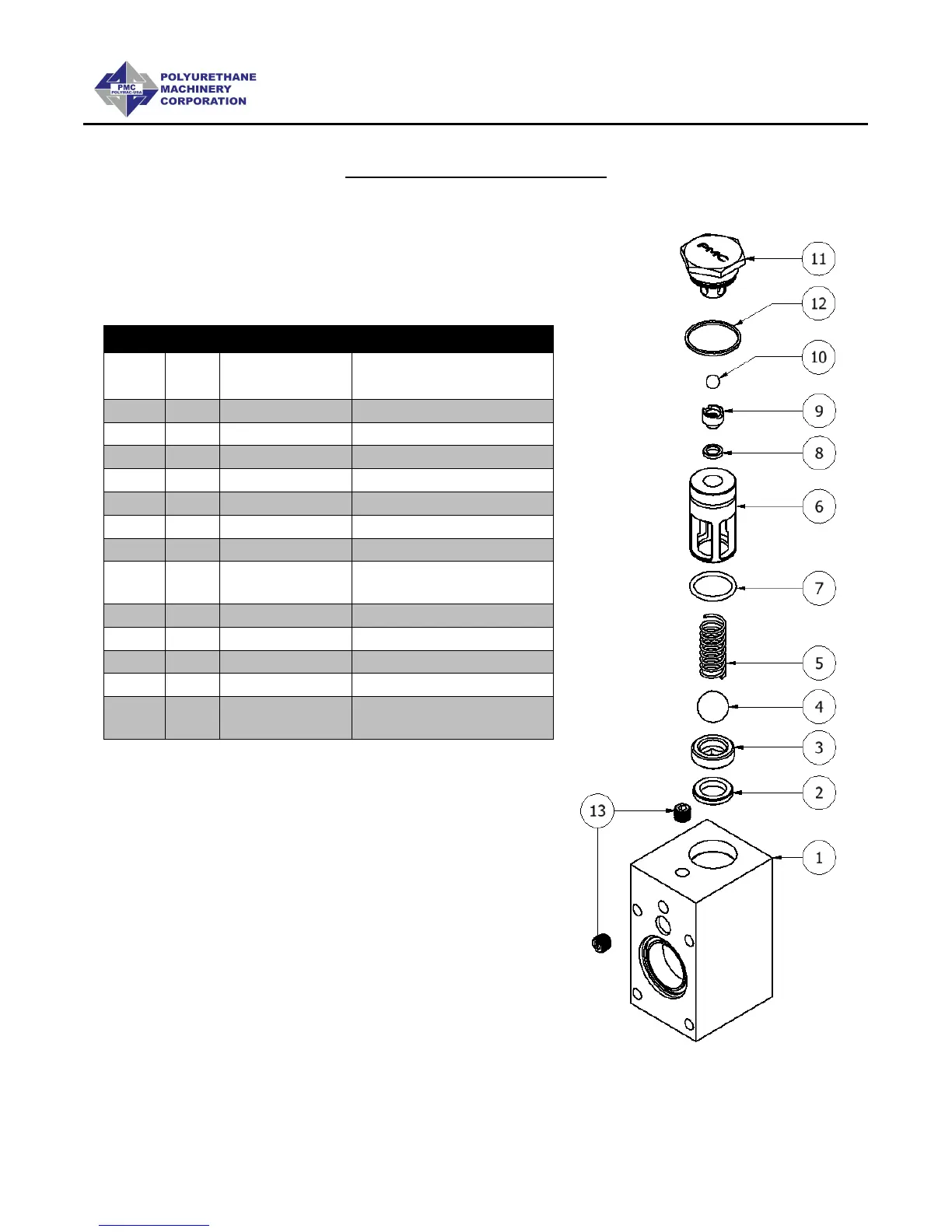

PUMP BASE ASSEMBLY
PUMPBASE ASSEMBLY
ITEM
QTY
PART
NUMBER
DESCRIPTION
1
1
PU-05018
PUMP BASE
2
1
PU-01003-DG
INLET BALL SEAT GASKET
3
1
PU-05019
INLET SEAT
4
1
PU-05020
INLET BALL
5
1
PU-05021
SPRING
6
1
PU-05022A
SLEEVE
7
1
OR-00051B
#218 AFLAS 80D O-RING
8
1
PU-01003-IG
DISCHARGE BALL SEAT
GASKET
9
1
PU-05024
DISCHARGE SEAT
10
1
PU-05025
DISCHARGE BALL
11
1
PU-05023-R
PUMP RETAINER NUT
12
1
PU-05023-1
GASKET
13
2
HI-05067
PIPE PLUG 1/4-18; 7/8
TAPER
