PMC PH-40 - Piston Assembly

PART IDENTIFICATION
1
An asterisk (*) next to an item number represents a part that is different for specific models.
See the description in the part list table for details.
68

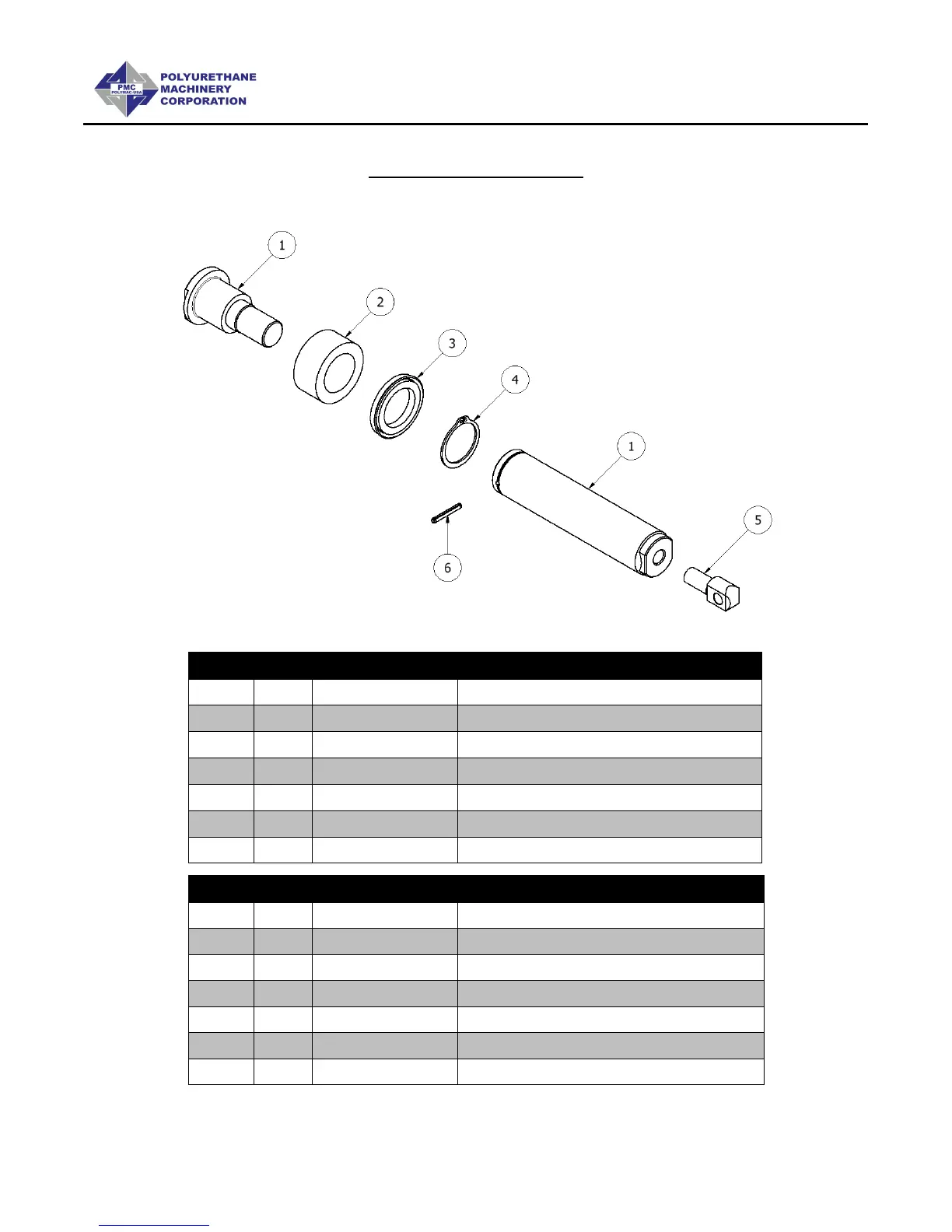

PISTON ASSEMBLY
See page 50 for replacement kits (assembly instructions included)
120 PUMP PISTON ASSEMBLY
ITEM
QTY
PART NUMBER
DESCRIPTION
1
1
PU-05011-120
PISTON SHAFT; SIZE 120
2
1
PU-05041
PISTON BEARING, 120
3
1
PU-01016A-012
PISTON SEAL; SIZE 120
4
1
PU-05030
120 SNAP RING
5
1
PU-05031
PISTON CLEVIS
6
1
PU-05029
120 SPRING PIN
80 PUMP PISTON ASSEMBLY
ITEM
QTY
PART NUMBER
DESCRIPTION
1
1
PU-05011-80
PISTON SHAFT; SIZE 80
2
1
PU-05042
PISTON BEARING, 80
3
1
PU-01016A-008
PISTON SEAL; SIZE 80
4
1
PU-05030-80
80 SNAP RING
5
1
PU-05031
PISTON CLEVIS
6
1
PU-05029-80
80 SPRING PIN
