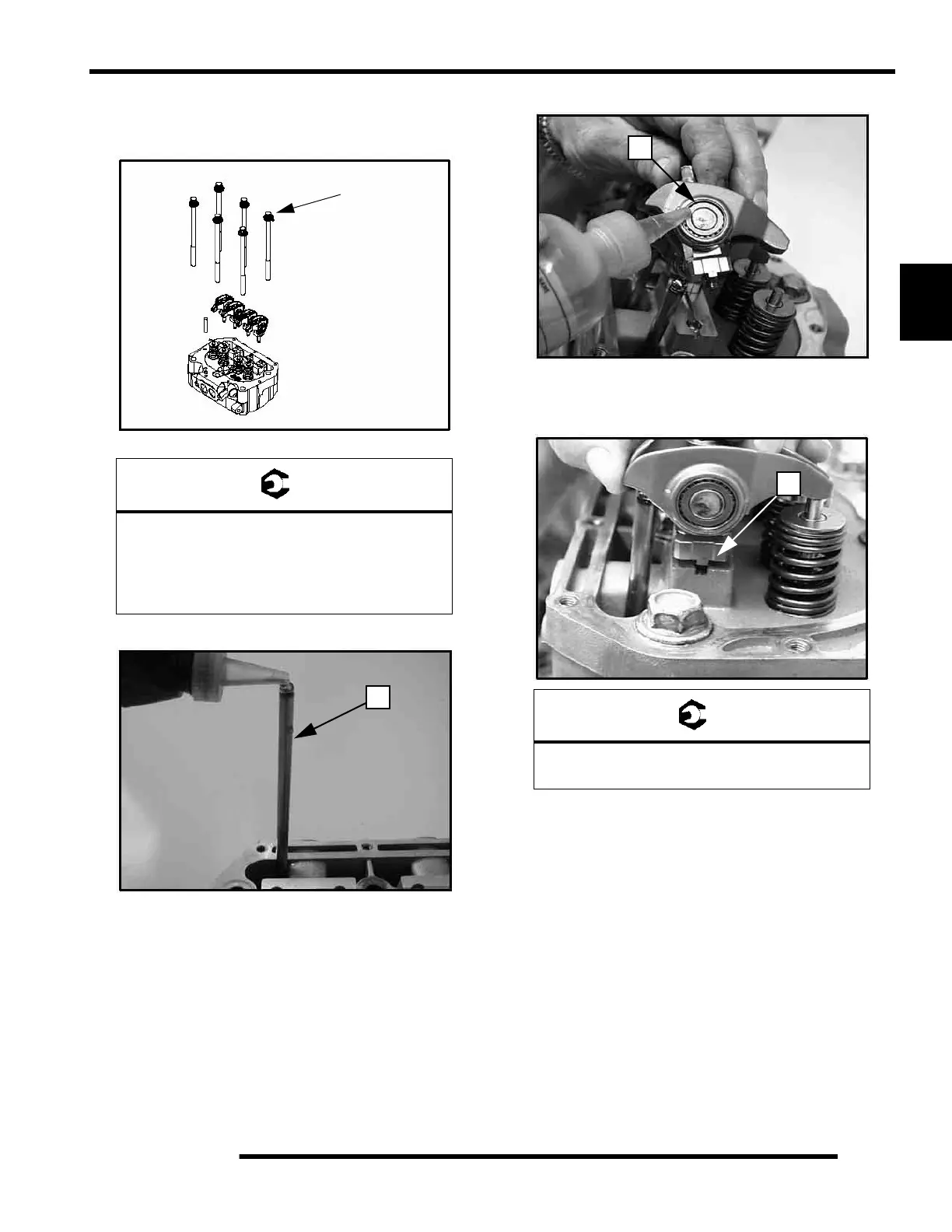

3. Lubricate threads and top of washers underside of bolt head
with engine oil. Install head bolts (C) and torque to
specification.
4. Lubricate push rods (D) and install into lifters.
5. Lubricate rockers (E) with engine oil.
6. Verify pushrods are engaged in lifters.
7. Install rockers. Be sure that tab of fulcrum (F) is seated in
head stand-off. Torque bolts to specification.
= T
Cylinder Head Bolt Torque:
Initial setting: 35 4 ft. lbs. (47.5 5.5 Nm)
Allow to set for 1 minute, then turn
additional 90 (1/4 turn)
*Torque Bolts In Sequence
C
D
= T
Rocker Arm Bolt Torque
22 + 2 ft. lbs. (30 3 Nm)
E
F
