2.10
MAINTENANCE
GENERAL VEHICLE INSPECTION
AND MAINTENANCE
Pre-Ride / Daily Inspection
Perform the following pre-ride inspection daily, and when
servicing the vehicle at each scheduled maintenance.
• Tires - check condition and pressures
• Fuel tank - fill to proper level
• All brakes - check operation and adjustment
• Throttle - check for free operation and closing
• Headlights/Taillights/Brakelights - also check operation
of all indicator lights and switches
• Ignition switch - check for proper function
• Wheels - check for tightness of wheel nuts and axle
nuts; check to be sure axle nuts are secured by cotter
pins
• Air cleaner element - check for dirt; clean or replace
• Steering - check for free operation noting any unusual
looseness in any area
• Loose parts - visually inspect vehicle for any damaged
or loose nuts, bolts or fasteners
• Engine coolant - check for proper level at the recovery
bottle
• Check all front and rear suspension components for
wear or damage.
Frame, Nuts, Bolts, and Fasteners
Periodically inspect the torque of all fasteners in accordance
with the maintenance schedule. Check that all cotter pins are in
place. Refer to specific fastener torques listed in each chapter.
Shift Cable Inspection / Adjustment
Shift cable adjustment may be necessary if symptoms include:
• No AWD or gear position display on instrument cluster
• Ratcheting noise on deceleration
• Inability to engage into a gear
• Excessive gear clash (noise)
• Gear selector moving out of desired range
1. Locate the shift cable in the rear LH wheel well area.
2. Inspect shift cable, clevis pin, pivot bushings, and dust
boot. Replace if worn or damaged.
3. If adjustment is required, loosen the lower jam nut and pull
the cable out of the mount to move the upper jam nut.
4. Adjust the shift cable so there is the same amount of cable
travel when shifting slightly past the detents of HIGH (H)
gear and PARK (P).
5. Thread the upper or lower jam nut as required to obtain
proper cable adjustment.
NOTE: This procedure may require a few attempts to
obtain the proper adjustment.

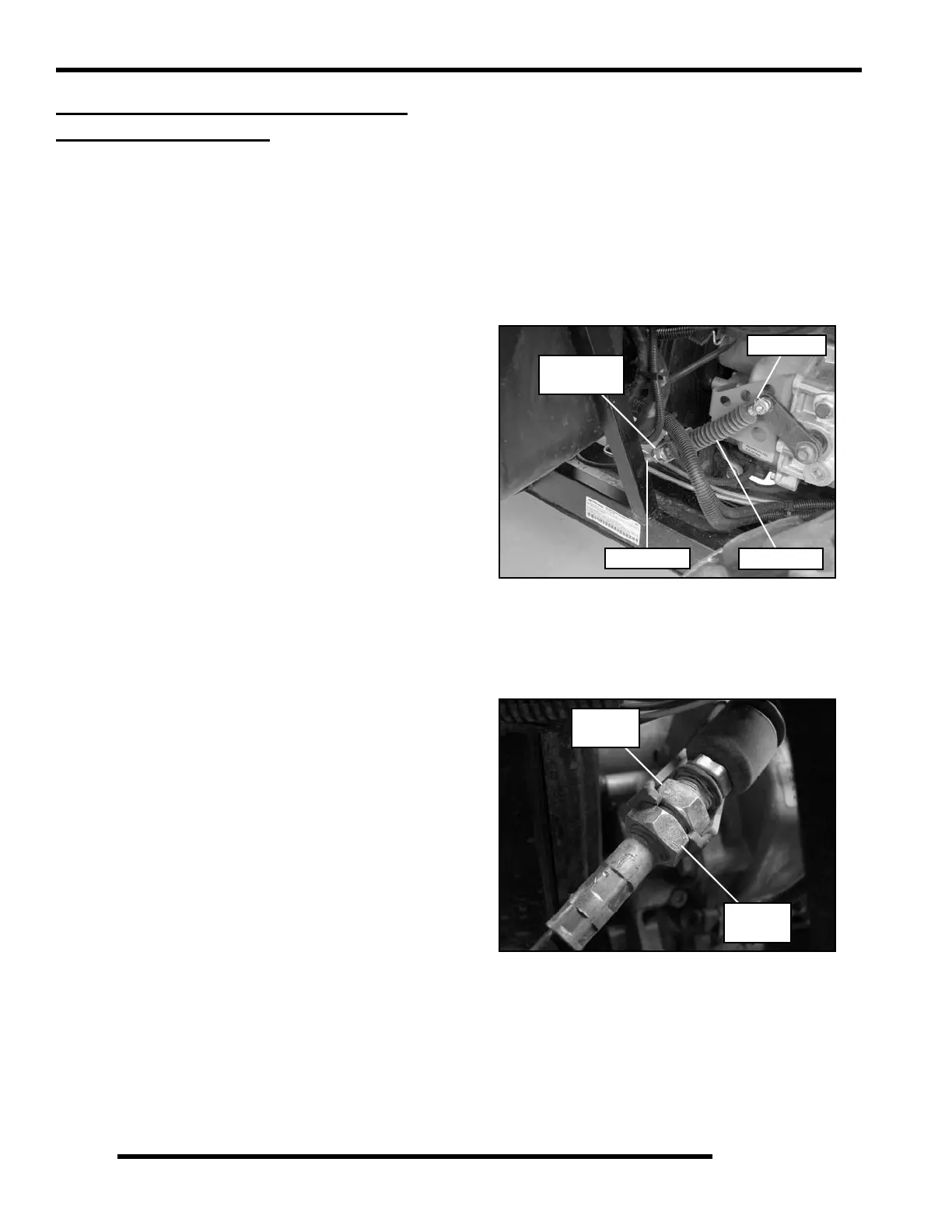

Shift Cable
Mount
Dust Boot
Clevis Pin
Shift Cable
Lower
Jam Nut
Upper
Jam Nut
