5.13
BODY / STEERING / SUSPENSION
5
Hood and Front Body Work

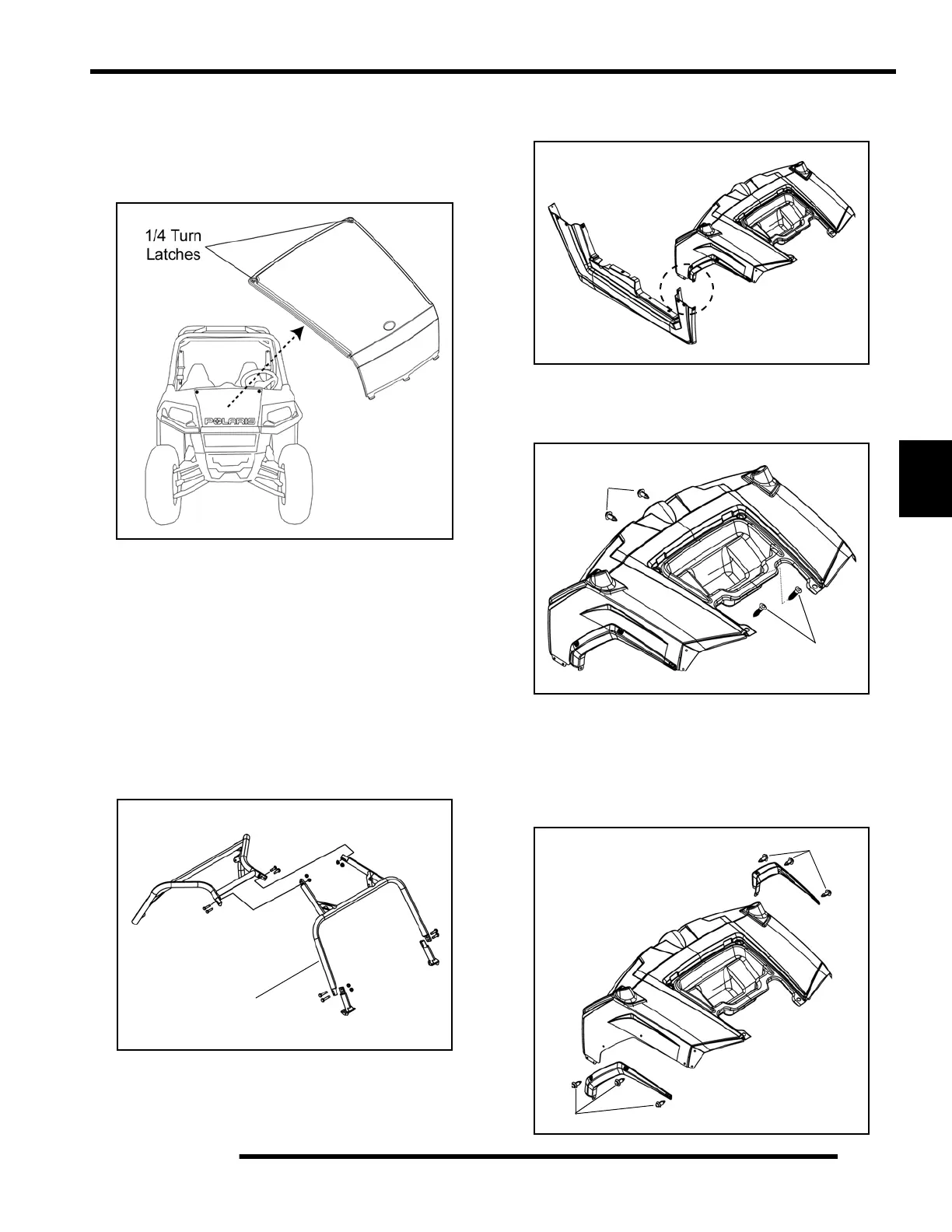

Hood Removal
1. To remove the hood, turn both latches to disengage the
rear portion of the hood.
2. Tilt the hood back to disengage the front tabs and remove
the hood from the vehicle.
Front Body / Dash Removal
1. Remove the hood as previously described.
2. Remove the front bumper (see “BODY COMPONENT
REMOVAL - Front Bumper”).
3. Remove the front portion of the cab frame assembly to
allow dash removal. Refer to “CAB FRAME - Assembly
/ Removal” for assembly torque specifications.
4. Remove the (8) push rivets that attach the dash assembly
to the rocker panels on each side.
5. Remove the (2) Torx screws and (2) push rivets that retain
the front and rear portions of the dash assembly and remove
the dash assembly from the vehicle.
Front Fender Flair Removal
1. If dash is installed, remove the (2) push rivets that attach
the lower portion of the fender flair to the rocker panels.
2. Remove the (6) push rivets or (8) T27 screws (RZR “S”)
and remove fender flairs from the dash assembly.
Remove
Push
Rivets
Torx
Screws
Remove
Remove
Standard RZR
Shown
To Next Page
