Polaris 2009 Ranger RZR 800 EFI - Engine Fastener Torque Patterns

3.7
ENGINE
3
Engine Fastener Torque Patterns
22  2 ft. lbs. (30  3 Nm)

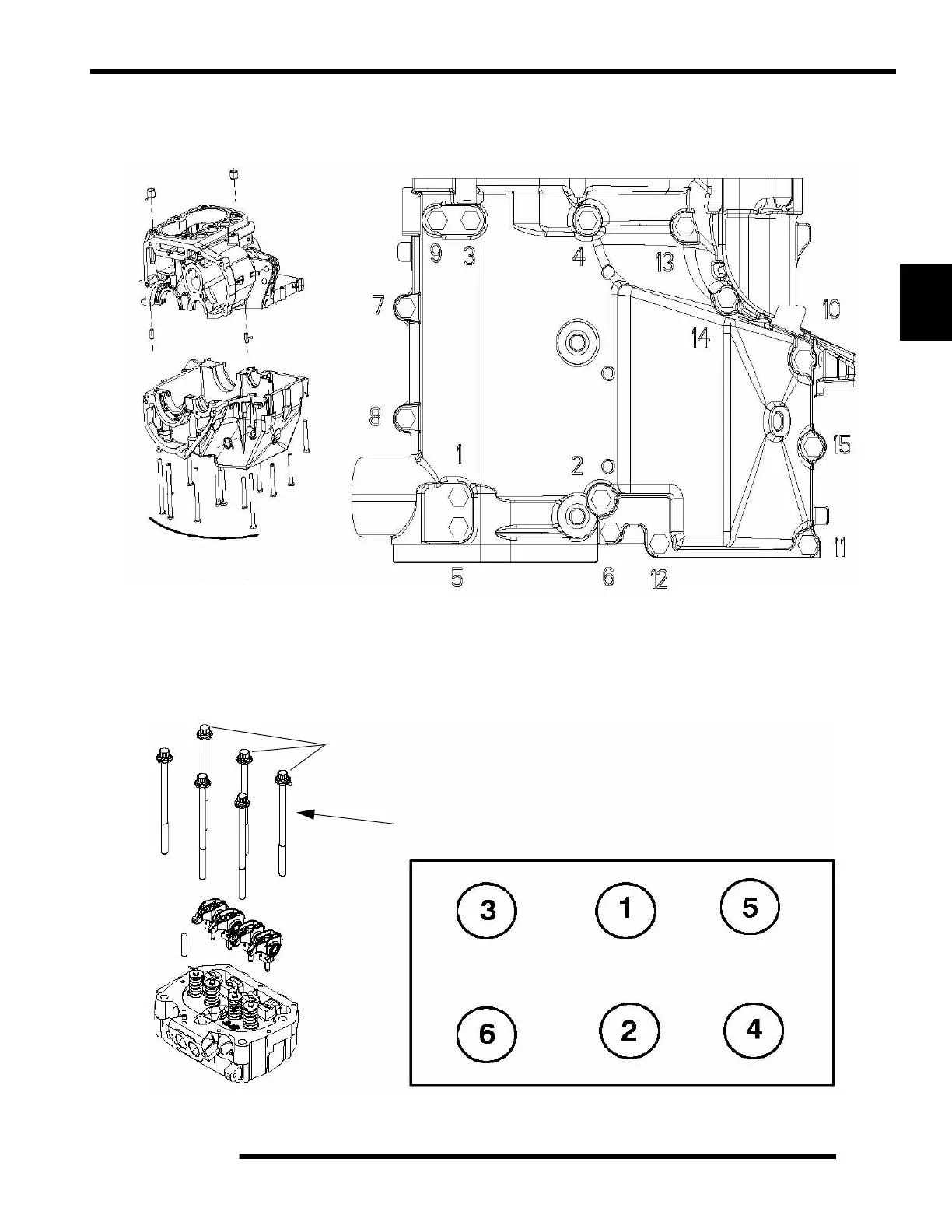

Crankcase Bolt Tighten Sequence
Lubricate threads and between washer and underside of bolt with engine oil.
Torque in sequence to spec provided, allow the gasket to set for 1 minute, then
tighten in sequence 90
 (1/4 turn).
35  4 ft. lbs.
(47.5  5.5 Nm)
+ 90
 (1/4 turn)
Cylinder Head Bolt Tighten Sequence
