Polaris 2009 Ranger RZR 800 EFI - Page 202

6.20
CLUTCHING

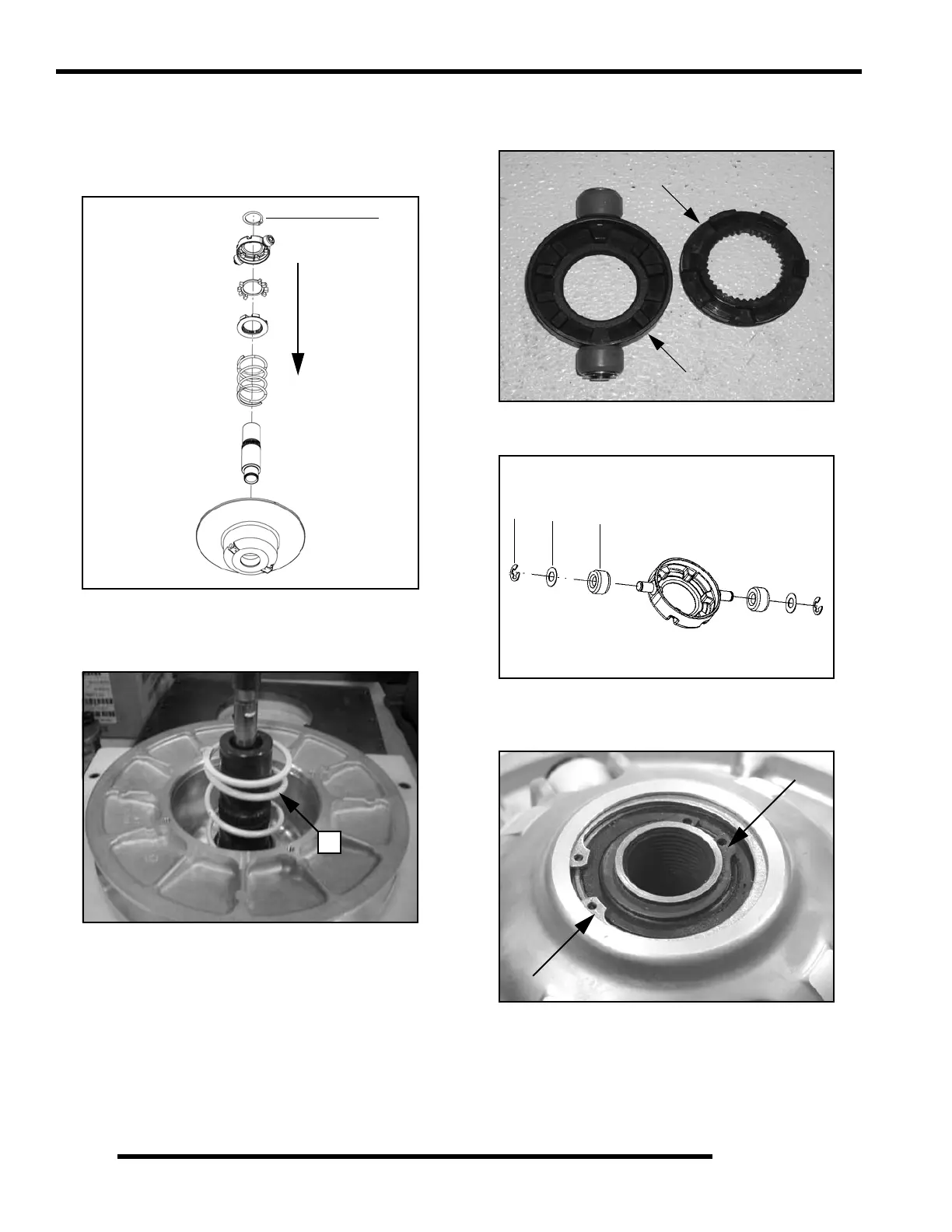

4. Place the clutch into the Clutch Compression Tool PN
8700220. Using Compression Extensions PN PS-45909,
press down on top of the spider assembly, compressing the
spider onto the shaft. Remove snap ring (A) and slowly
release the assembly.
5. Remove the spider assembly and spring (B).
NOTE: Spring is compression only and has no
torsional wind.
6. Remove the inside spider plate (D) and spider dampener
(E). Inspect the spider dampener (E) for wear and replace
if needed.
7. Remove the E-clips (F), washers (G), and the clutch rollers
(H). Inspect the rollers for wear; replace if worn.
8. Remove the clutch assembly from the holding tool.
Remove the large outer retaining ring (I) and the inner
retaining ring (J).
Press down
on spider
A
B
E
D
H
G
F
I
J
