10.7
ELECTRICAL
10

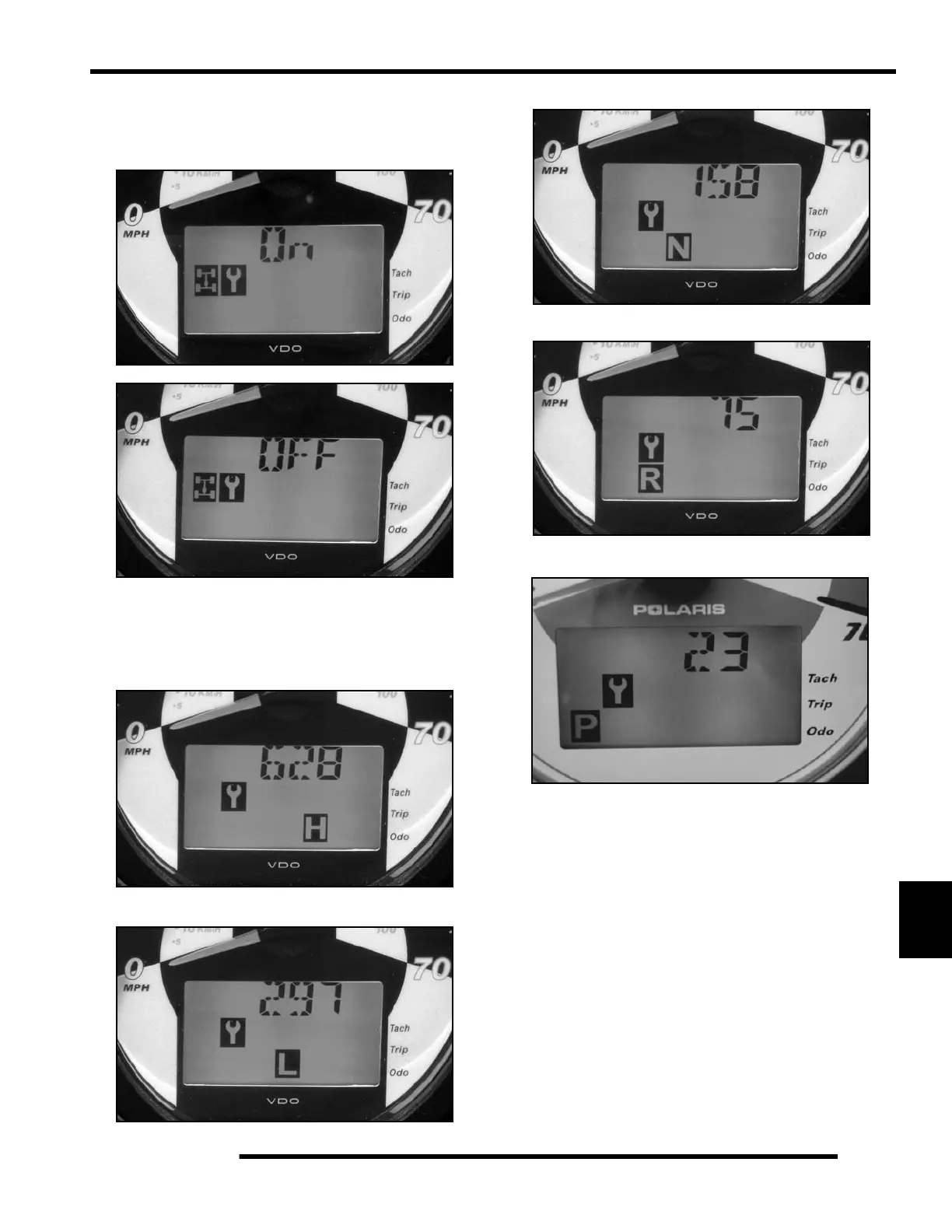

AWD Diagnostic Screen
The gauge indicates whether or not current is flowing through
the AWD coil.
Gear Circuit Diagnostic Screen
This screen displays the resistance value (in ohms) being read at
the gear switch input of the gauge.
NOTE: A 10 - 20% variance from these readings is
within normal parameters.
