ASSEMBLY VIEWS - FINAL DRIVE

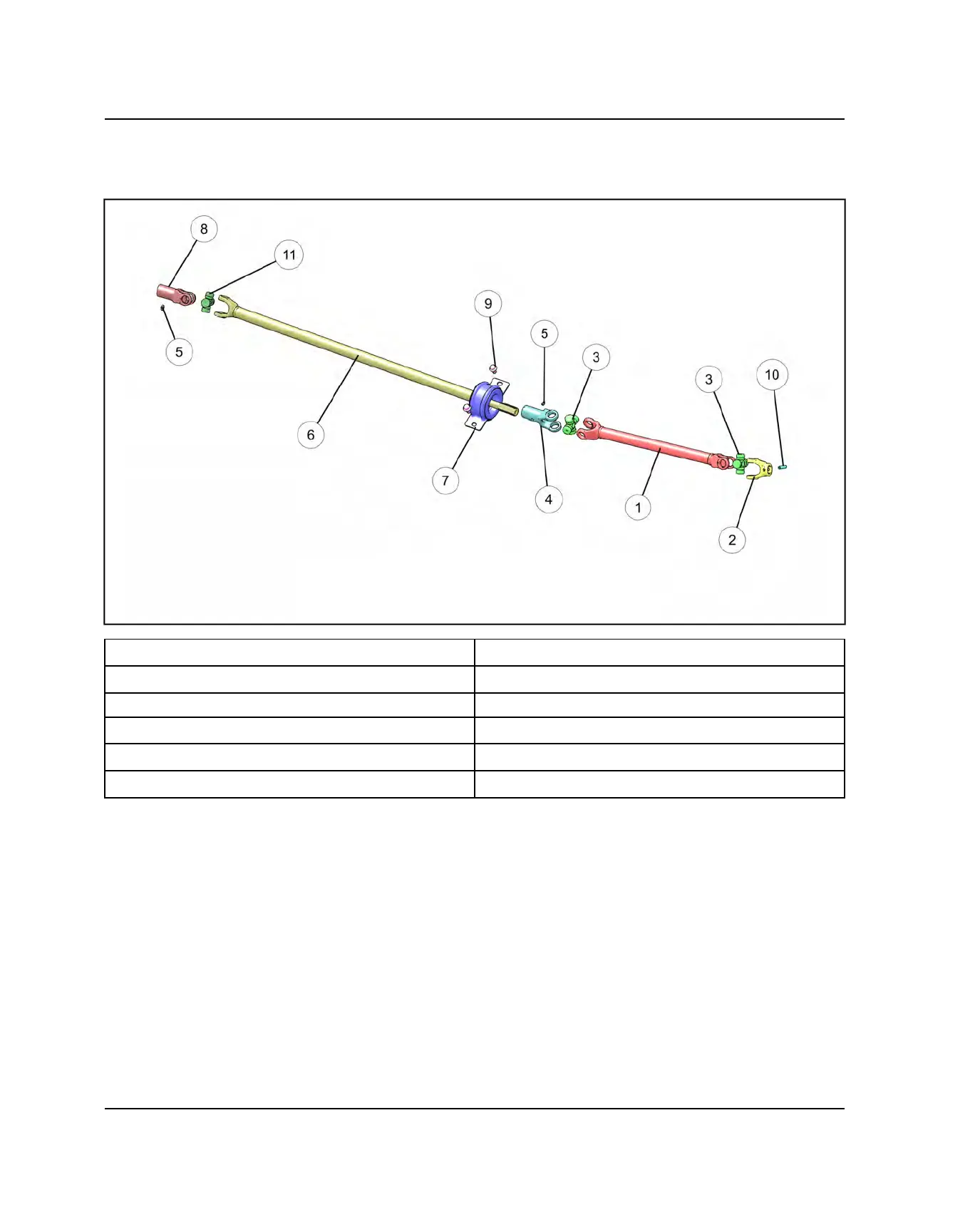

PROPSHAFT ASSEMBLY VIEW (2016–2017)
q
Asm, Propshaft Front
u
Asm, Bearing Flex
w
Yoke, Pin
i
Yoke, Slip
e
U-Joint
o
Bolt
r
Yoke, Slip
a
Pin, Spring
t
Fitting
s
U-Joint
y
Asm, Propshaft Rear
FINAL DRIVE
