EXTERIOR BODY COMPONENT
INSTALLATION - GENERAL 4

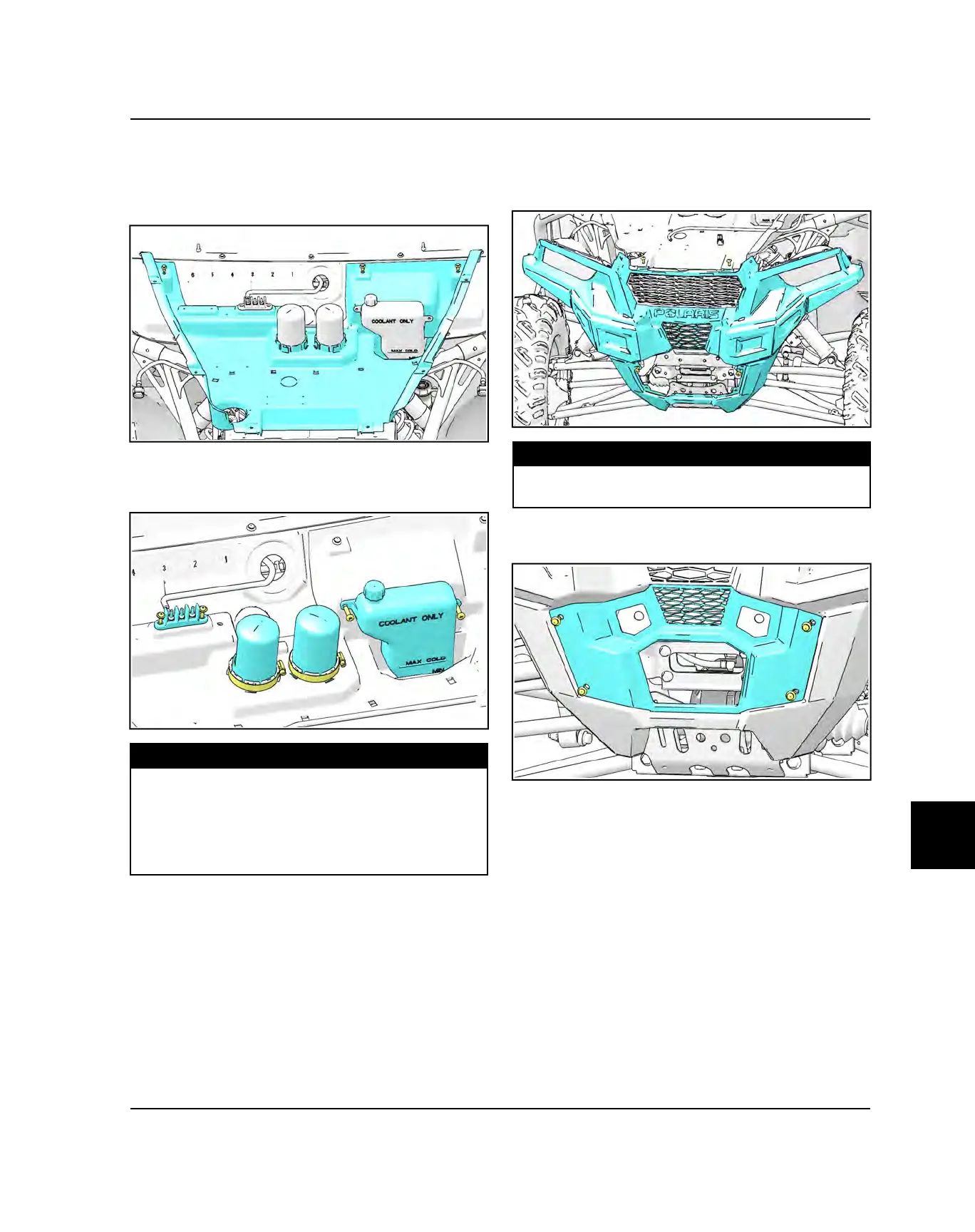

1. If removed, install fasteners holding the hood liner to
the vehicle.
2. Install the fasteners and clamps securing the terminal
block, intake duct, and coolant surge. Torque
fasteners to specification.
TORQUE
Terminal Block Fasteners:
3 lb-ft (4 Nm)
Intake Duct Hose Clamp:
3 lb-ft (4 Nm)
Coolant Surge Tank Fasteners:
2 lb-ft (2.7 Nm)
3. Install the front fascia on the vehicle and connect the
headlights to the wiring harness. Install the fasteners
holding the upper front fascia to the vehicle and the
hood liner. Torque the fasteners to specification.
TORQUE
Upper Front Fascia Fasteners:
3.5 lb-ft (4.7 Nm)
4. Install the fasteners holding the lower front fascia to
the vehicle.
