9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.
9.23

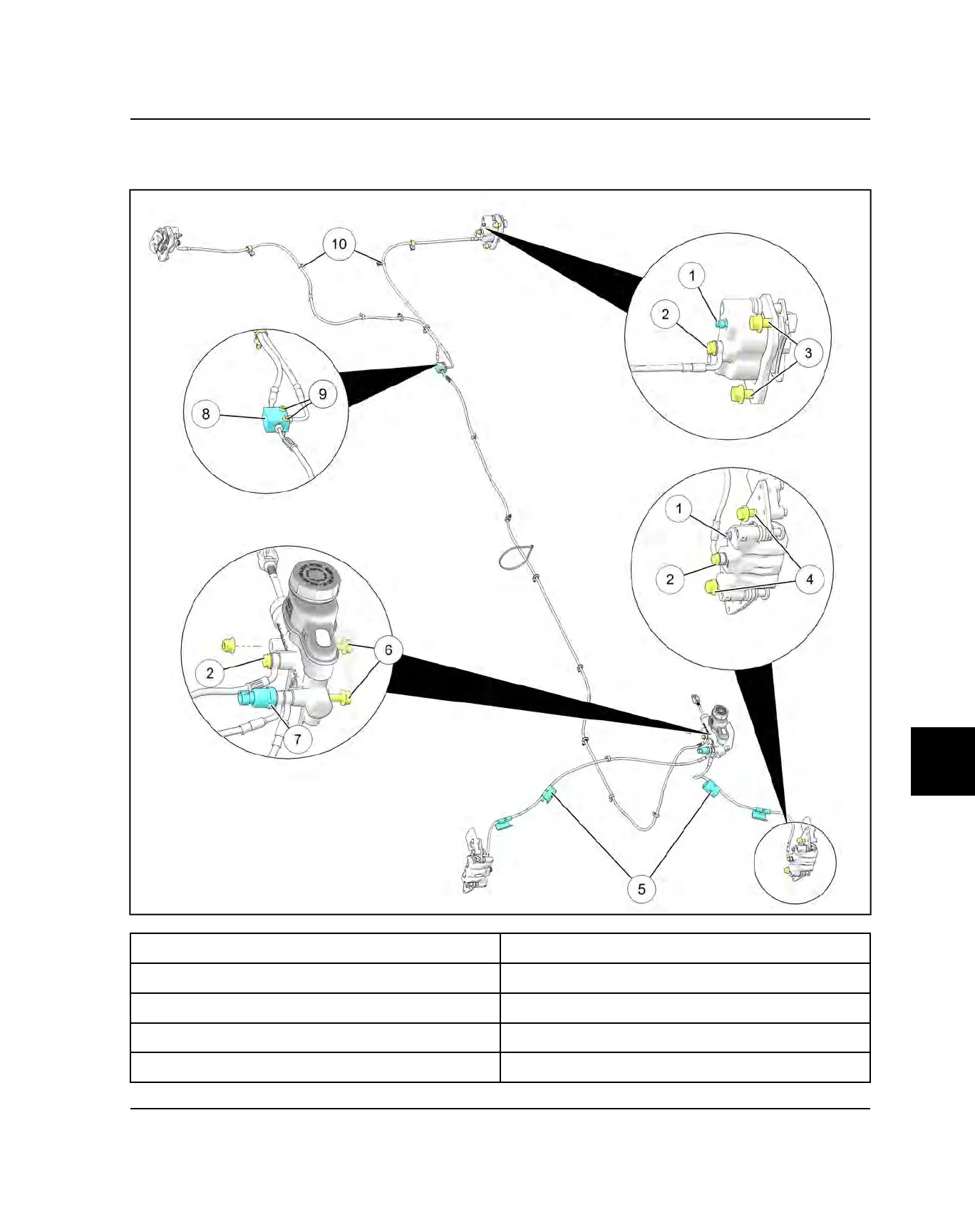

BRAKE SYSTEM ASSEMBLY VIEW — GENERAL 4
GENERAL 4 BRAKE SYSTEM ASSEMBLY VIEW
q
Brake Caliper Bleeder Screw, 4 lb-ft (5.4 Nm)
y
Master Cylinder Fasteners, 22 lb-ft (30 Nm)
w
Banjo Bolt, 15 lb-ft (20 Nm)
u
Brake Switch
e
Rear Caliper Fasteners, 46 lb-ft (62 Nm)
i
Junction Block
r
Front Caliper Fasteners, 30 lb-ft (41 Nm)
o
Junction Block Fasteners, 35 in-lbs (4 Nm)
t
Brake Line Clamp
a
Retention Fasteners
