20.Install the fasteners holding the upper dash panel to
the vehicle.
21.Install the hood, front and rear fenders, and rocker
panels. Refer to “Exterior Body Component
Installation”page 10.50 procedure.

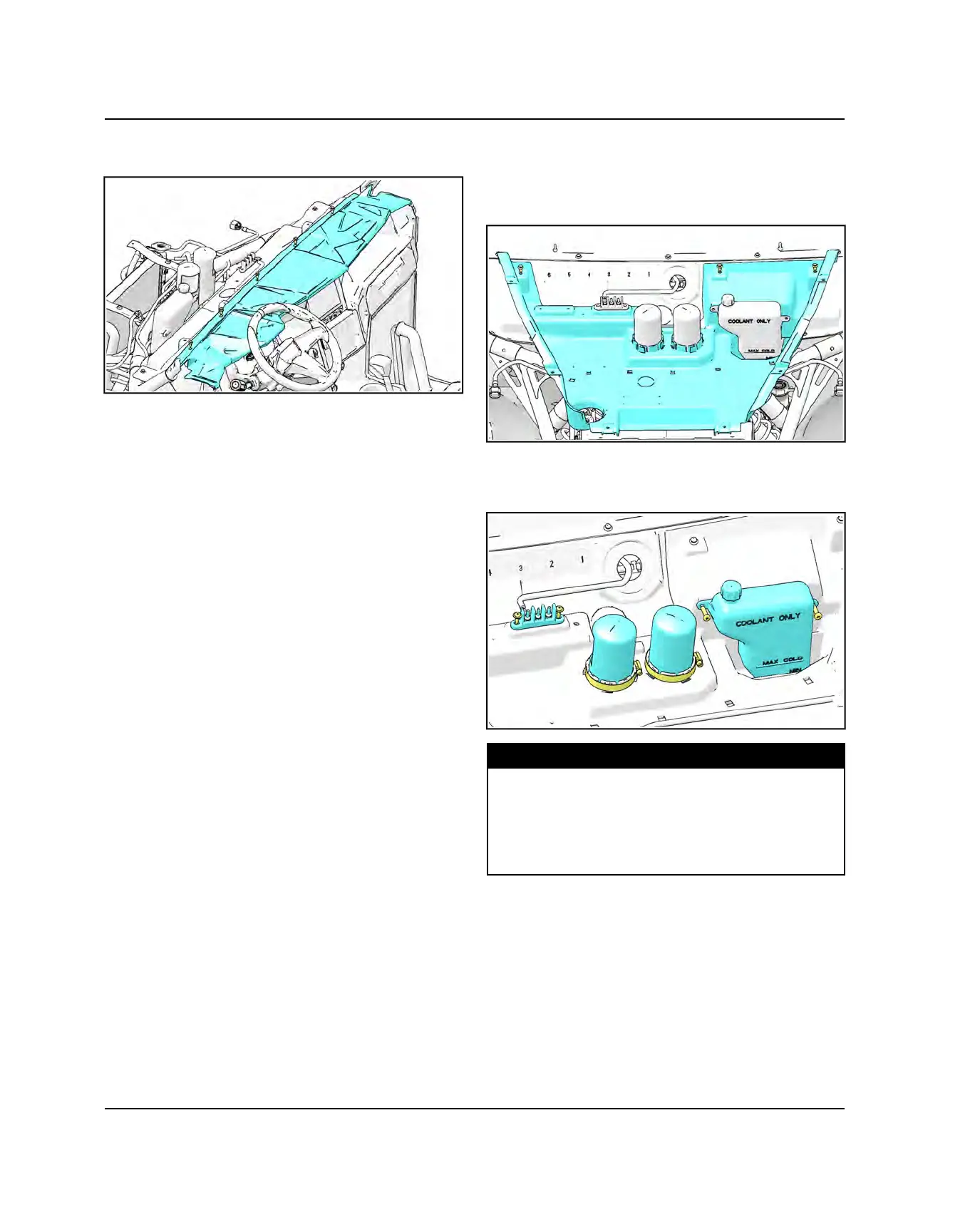

EXTERIOR BODY COMPONENT
INSTALLATION
1. If removed, install fasteners holding the hood liner to
the vehicle.
2. Install the fasteners and clamps securing the terminal
block, intake duct, and coolant surge. Torque
fasteners to specification.
TORQUE
Terminal Block Fasteners:
3 lb-ft (4 Nm)
Intake Duct Hose Clamp:
3 lb-ft (4 Nm)
Coolant Surge Tank Fasteners:
2 lb-ft (2.7 Nm)
