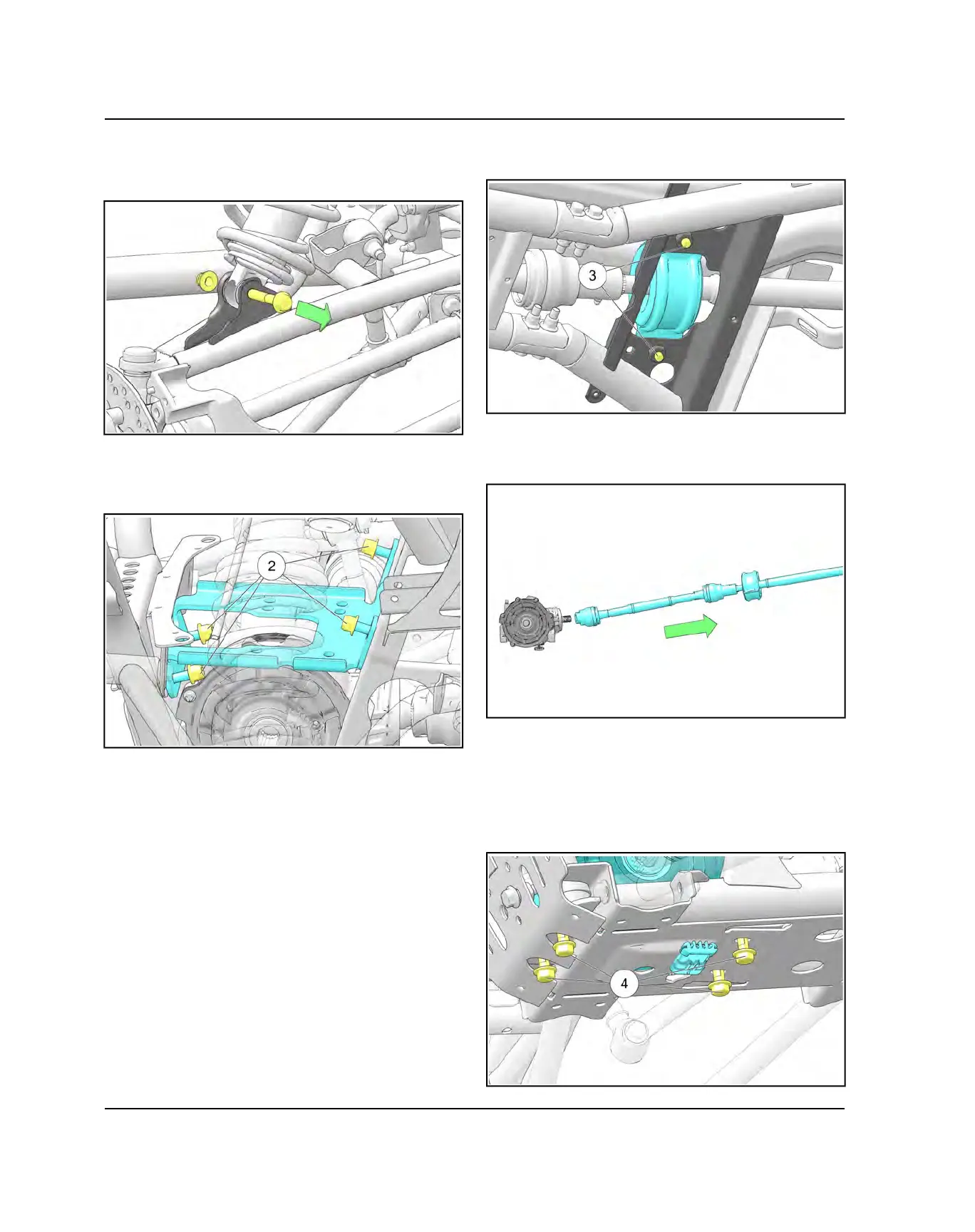

6. Disconnect contactor connector.
7. Remove the lower fastener on the passenger front
shock.
8. Remove Winch from passenger side.
9. Remove winch mounting plate from frame by
removing four 15mm nuts
w
.
10.Remove both front drive shafts from the front
gearcase. Refer to “Front Drive Shaft
Removal”page procedure.
11. Remove Skid plate.
12.Remove two 15mm fasteners
e
securing support
bearing.
13.Without removing the front propshaft from the support
bearing, slide the assembly rearward to disengage
the front propshaft from the gearcase input shaft.
14.Disconnect the wire harness for the front gearcase
and remove the harness from the retaining dart.
15.Remove the vent line from the front gearcase and
plug vent line fitting.
16.Remove the four fasteners
r
securing the front
gearcase to the frame.
