10
9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.
10.37

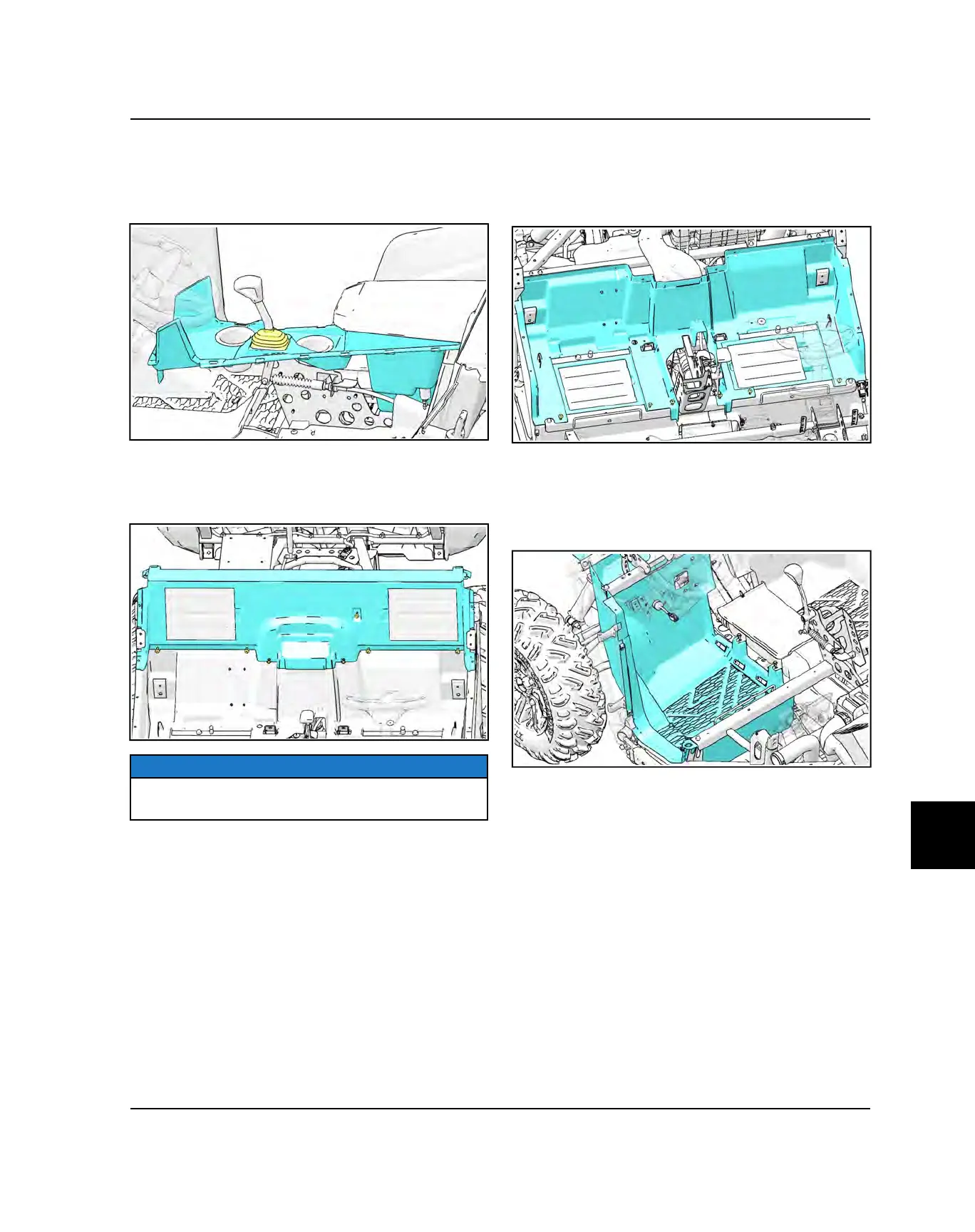

9. Remove the shift boot from the center console top
and remove the remaining fasteners holding center
console top to the vehicle. Disconnect the 12 V power
connectors and remove the center console top from
the vehicle.
10.Remove the fasteners holding the rear upper close-
off panel to the vehicle. Disconnect the ECU and
remove the rear upper close-off panel from the
vehicle.
NOTICE
If necessary, loosen/remove the fasteners holding the
door latch mounts to the vehicle to aid in panel removal.
11. Remove the fasteners holding the rear lower close-off
panel to the vehicle. Remove the seat belt buckles,
seat belt shoulder strap mounts and brackets, and
fuse box from the panel. Remove the lower close-off
panel from the vehicle.
12.Remove the brake pedal, accelerator pedal, and
mounting bracket. Refer to “Brake Pedal
Removal”page 9.38 procedure.
13.Remove the remaining fasteners holding the RH and
LH main floors to the vehicle.
BODY / FRAME
