PB4SQ™ Booster Pump
|
Installation and Operation Manual
13,15
3,4,5
3,4
3,4
3,4
1,3
2,3
13, 14 (4 ea)
6
7,8,9
8,9,10
8
8,9,10
10
12
12 (4 ea)
9,10
11
1,3 (4 ea)

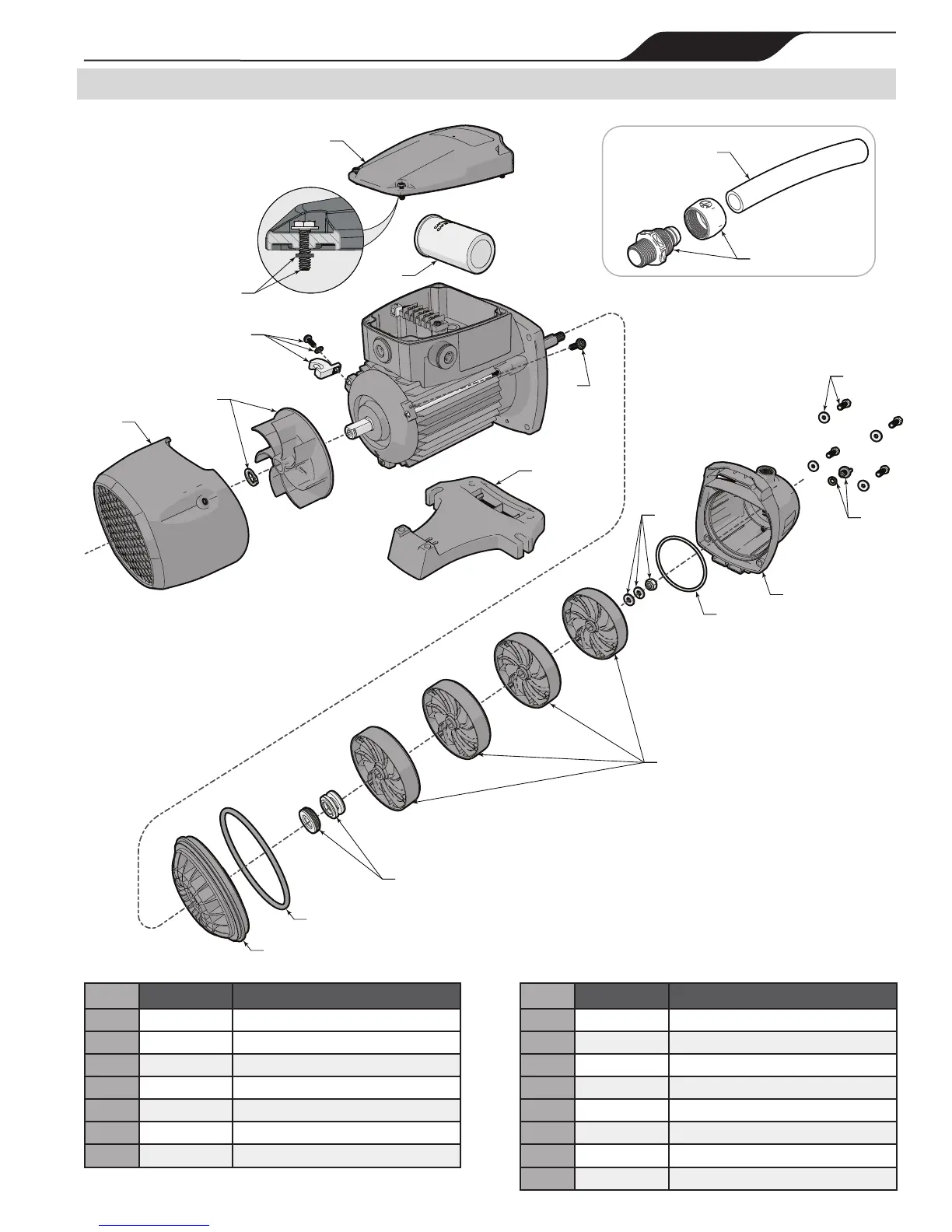

Section 6. Replacement Parts
ITEM Part # Description
1
R0722900 Capacitor Housing Cover
2
R0734500 Capacitor 30MFD 400V
3
R0734200 Motor Kit
4
R0722600 Fan Cover
5
R0723000 Motor Fan
6
R0722700 Base
7
R0747800 Mechanical Seal
ITEM Part # Description
8
R0723200 Backplate Kit
9
R0734300 Seal Replacement Kit
10
R0723100 Pump Body
11
R0722800 Impeller and Diffuser Kit
12
R0734400 Pump Hardware Kit
13
R0617100 Quick Connect Install Kit
14
R0621000 Quick Connect Set
15
P19 Reinforced Hose 6 ft.

Polaris PB4SQ Specifications

General

Type	Booster Pump
Voltage	115/230V
Max Head	60 ft
Inlet Size	1.5 inches
Outlet Size	1.5 inches
Horsepower	0.75 HP
Motor Type	TEFC
