ENGLISH
Polaris
®
PB4SQ™ Booster Pump
|
Installation and Operation Manual
Section 2. Overview
2.1 INTRODUCTION
This manual contains information for the proper
installation, operation and maintenance of the Polaris
PB4SQ booster pump.
Running the booster pump without a ltration pump
will damage the booster pump. Improper operation
of the booster pump will void the warranty.
CAUTION

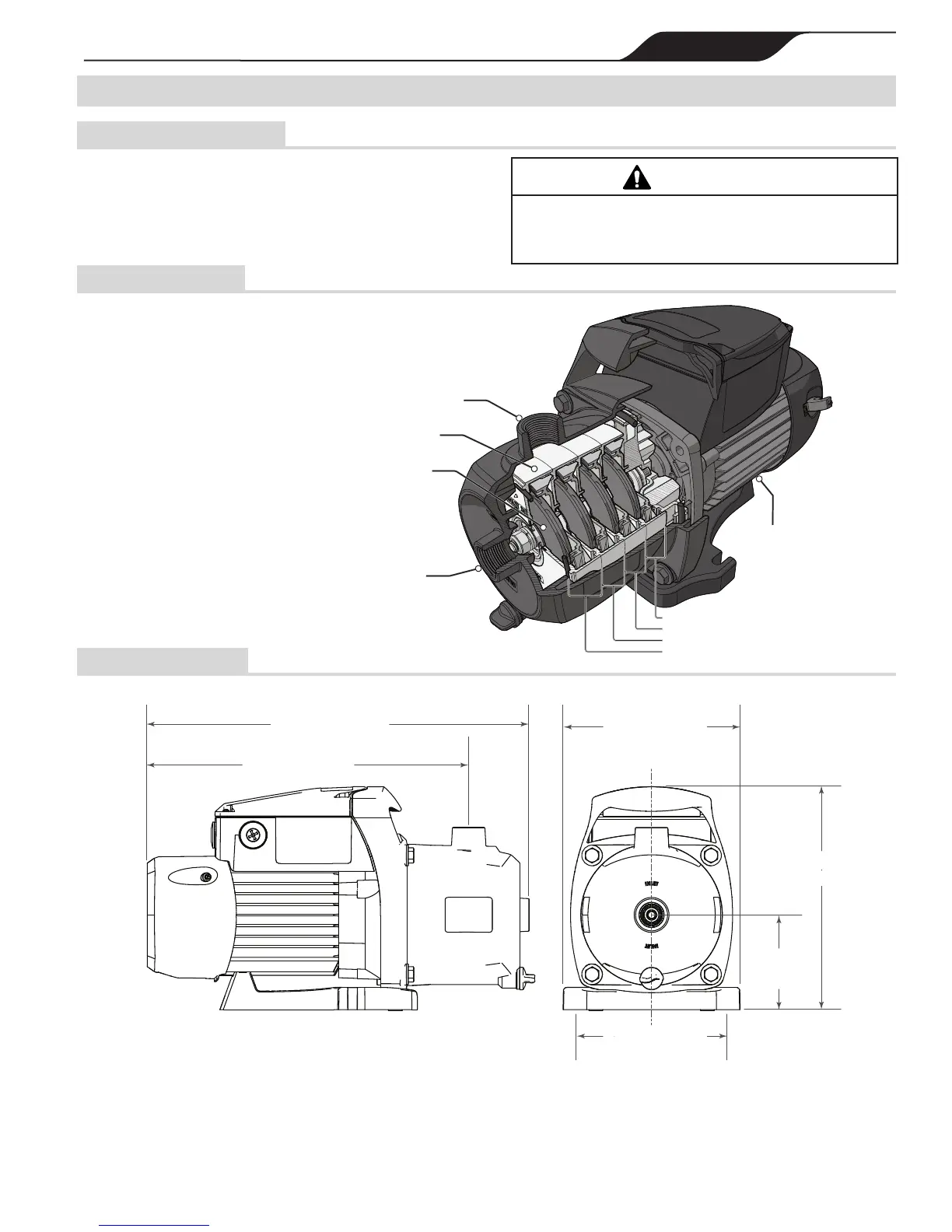

2.2 Description
The Polaris PB4SQ Booster Pump,
supplies high pressure water for the
operation of pressure driven pool
cleaners. The PB4SQ is a multistage
booster pump. Hydraulic efciency is
optimized by passing water through
four pressurization stages. At each
stage, water is moved through an
individual impeller and diffuser,
progressively increasing outlet
pressure without increasing motor
Revolutions Per Minute (RPM). This
allows a pressure operated cleaner
to run with optimal power while
minimizing energy consumption. The
pump is not self priming and should
only be used when the pool ltration
pump is on
2.3 Dimensions
16 3/16" (411 mm)
9 7/16"
(240 mm)
4"
(102 mm)
13 5/8" (346 mm)
16 3/16" (411 mm)
7 1/2" (191 mm)
6 3/8" (162 mm)
Anchor bolt hole centers
9 7/16"
(240 mm)
4"
(102 mm)
13 5/8" (346 mm)
Impeller
Diffuser
Outlet
Inlet
Stage 4
Stage 3
Stage 2
Stage 1
Electric Motor
