2.20
MAINTENANCE
Breather Filter Inspection

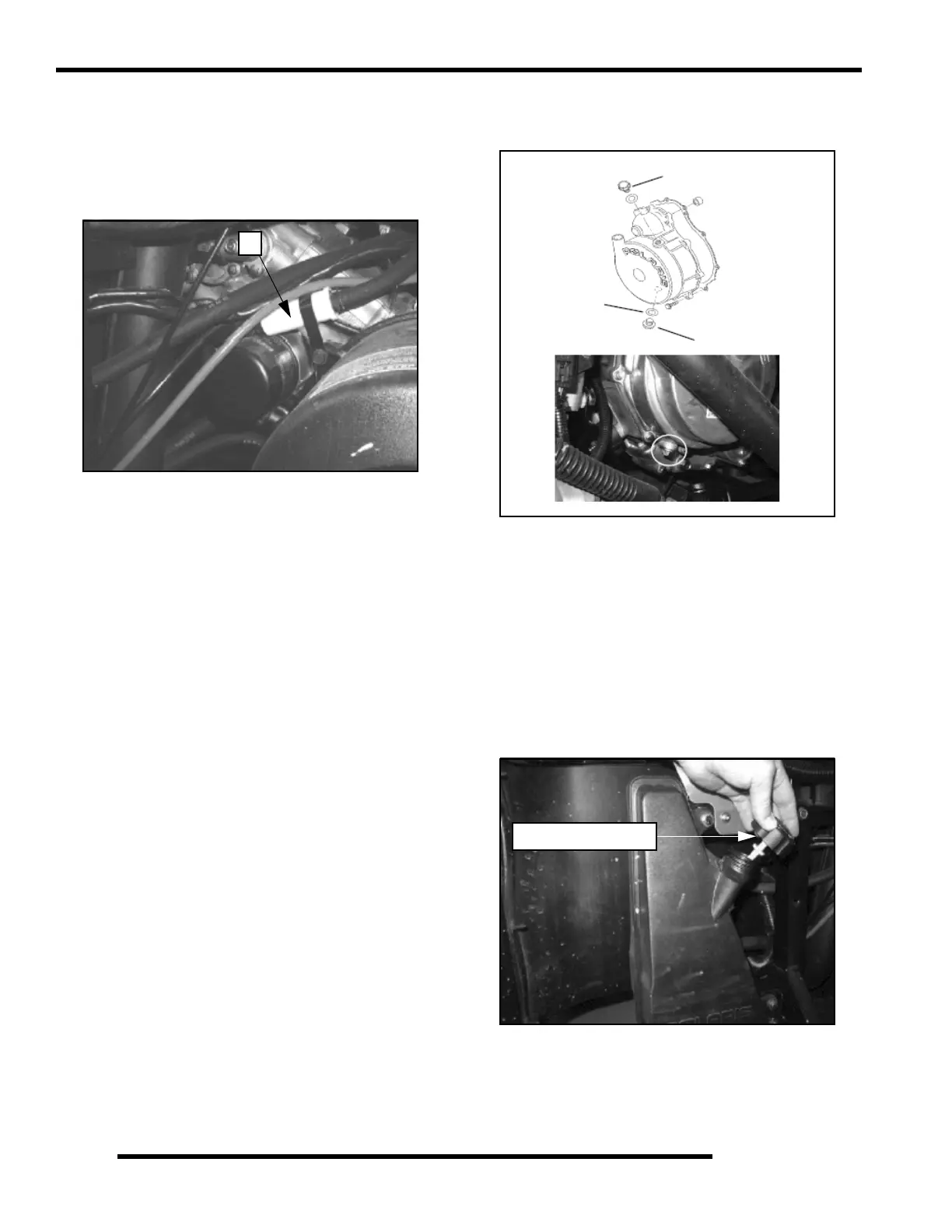

The engines are equipped with a breather filter. The in-line filter
is similar in appearance to a fuel filter, and is visible on the left
side (Location A). Follow right hand breather line out of the side
of the airbox and locate filter. Blow through gently in direction
of arrow on filter to check for clogging. Replace as needed.
In-line breather filters should be installed with the arrow
pointing toward the engine (away from the air box).
NOTE: In-line breather filter service life is extended
when the foam air box pre-filter is in place and
maintained properly. Never operate the engine
without the pre-filter.
Breather Hose
Be sure breather line is routed properly and secured in place.
CAUTION: Make sure lines are not kinked or pinched.
Flywheel Housing
• Drain the housing periodically to remove moisture.
• Drain the flywheel housing after operating the vehicle
in very wet conditions. This should also be done before
storing the vehicle. The drain screw is located at the
bottom of the flywheel housing. Remove the plug.
Reinstall the plug once housing has been drained.
•After travelling in wet areas the engine housing and
starter should always be drained completely by
removing the housing.
• Do not open the crankcase drain unless the engine has
ingested water. Some engine oil will be lost if
crankcase drain is opened.
Engine Oil Level
The oil tank is located on the left side of the vehicle. To check
the oil level:
1. Set machine on a level surface.
2. Start and run engine for 20-30 seconds. This will return oil
to its true level in the oil tank. About a cup of oil will remain
in the crankcase.
3. Stop engine, remove the bench seat.
4. The oil tank is located on the driver side. Remove dipstick
and wipe dry with a clean cloth.
5. Reinstall dipstick, screwing into place.
A
Timing Plug
Gasket
Drain Plug
Engine Oil Dipstick
