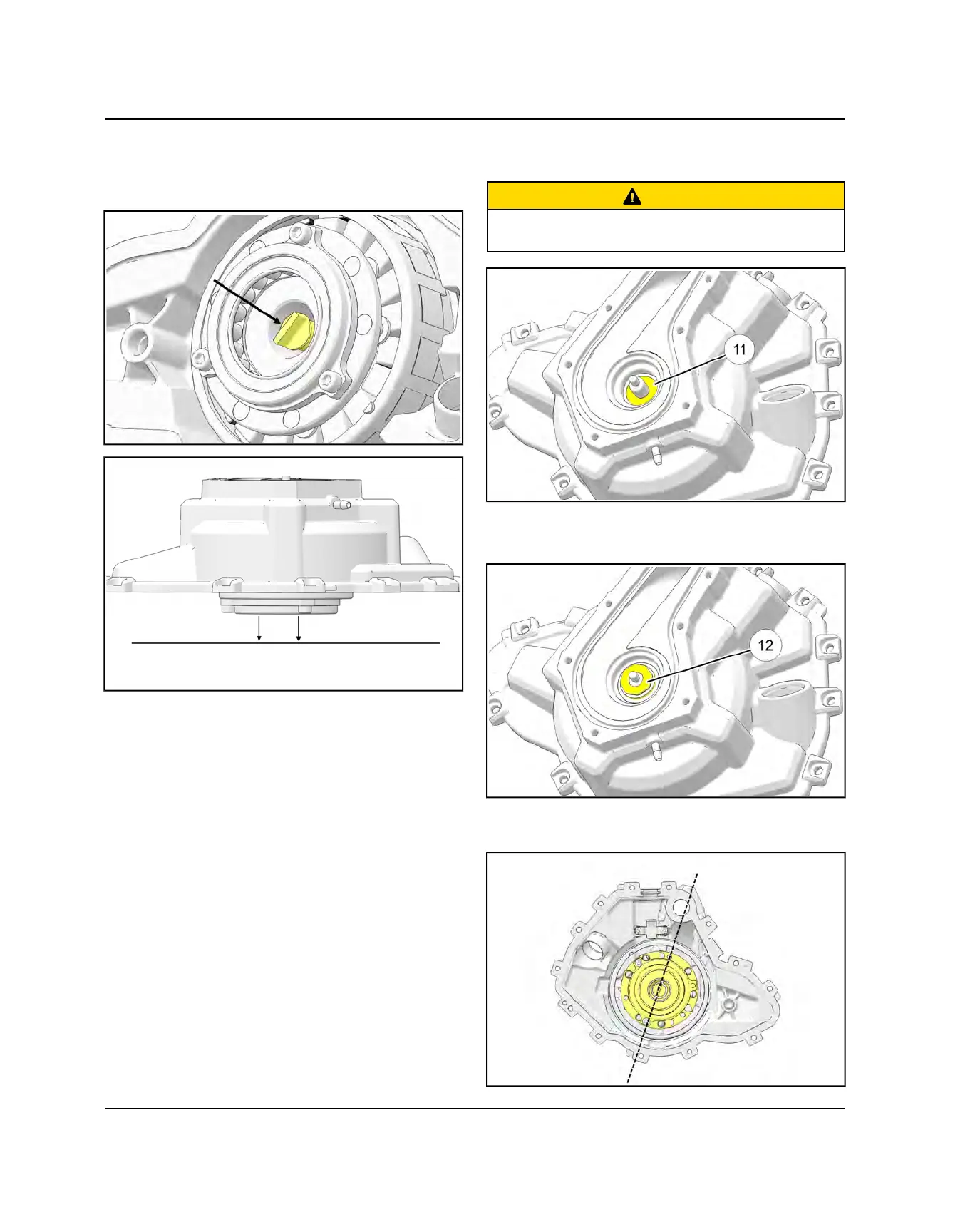

25. Install the water pump drive shaft holding tool in kit
PU-50869. Hold the tool in position and flip the
assembly up-side-down so the special tool PU-
50869 is supporting the assembly.
26. Lubricate the new water pump oil seal with clean
engine oil.
27. Use the water pump oil seal installation tool in kit PU-
50869 to fully install the new water pump oil seal
s
.
CAUTION
Be sure the oil seal is fully seated in cover or severe
engine damage may result.
28. Use the water pump mechanical seal installation tool
in kit PU-50869 to fully install the new water pump
mechanical seal
d
until it is fully seated in the cover.
29. Install a new stator cover gasket onto the engine.
30. Align the water pump drive slot as shown below.
