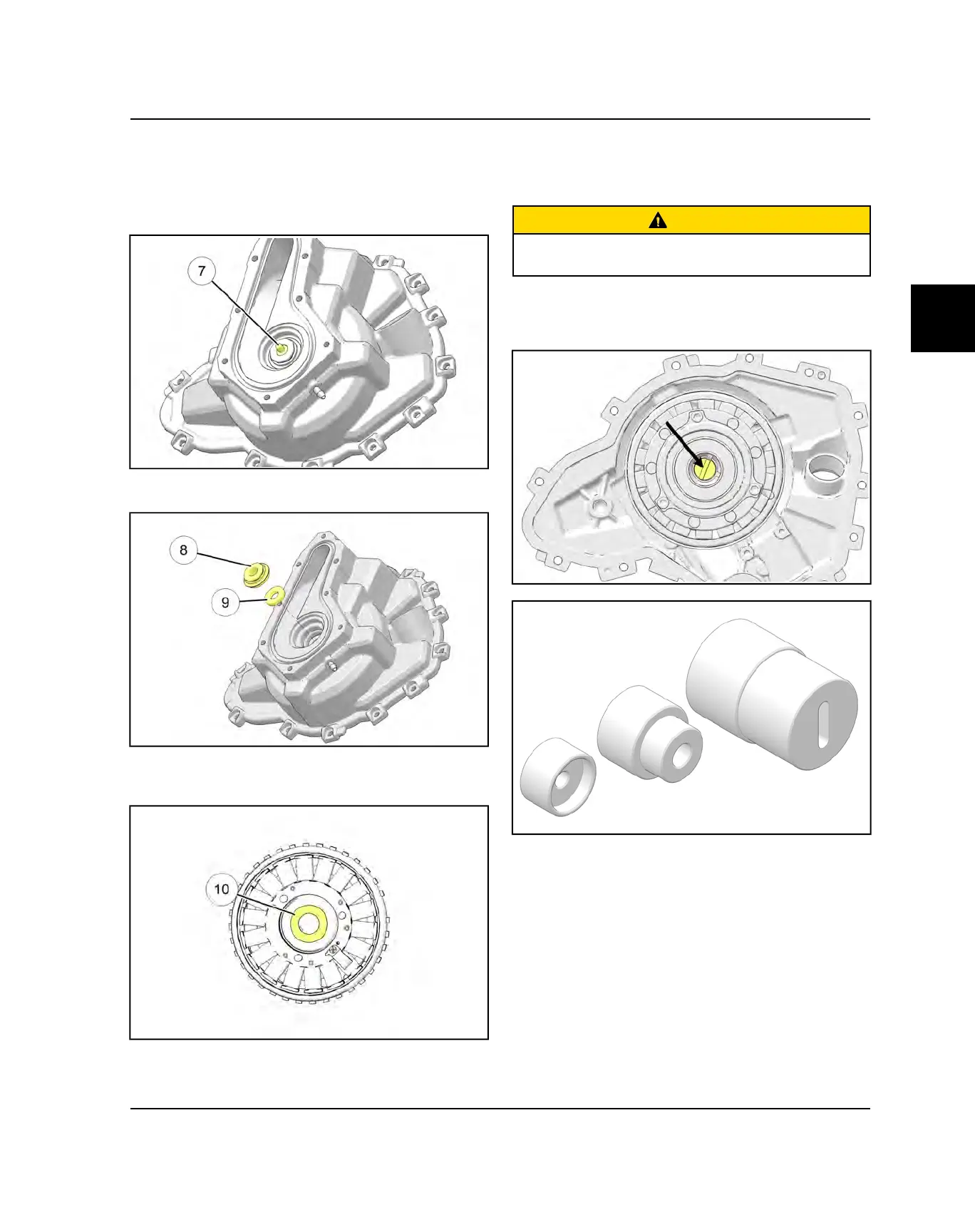

17. Bring the stator cover assembly to a clean work
bench.
18. Using a brass drift, remove the water pump drive
shaft
u
. Be sure not to damage the threads. Inspect
shaft for wear or damage, replace if necessary.
19. Extract the mechanical seal
i
and the oil seal
o
from the stator cover.
20. Press out the water pump drive shaft bearing
a
from
the stator cover. Discard bearing and replace with
new.
Water Pump Assembly
21. Thoroughly clean the stator cover.
22. Press in a new water pump drive shaft bearing
a
until it is fully seated in the cover.
CAUTION
Be sure bearing is fully seated in cover or severe
engine damage may result.
23. Clean and de-grease the water pump drive shaft (H).
24. Press in the water pump drive shaft into the bearing
using PU-50869 Item #1.
