Polaris RANGER 570 2020

3
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
3.91

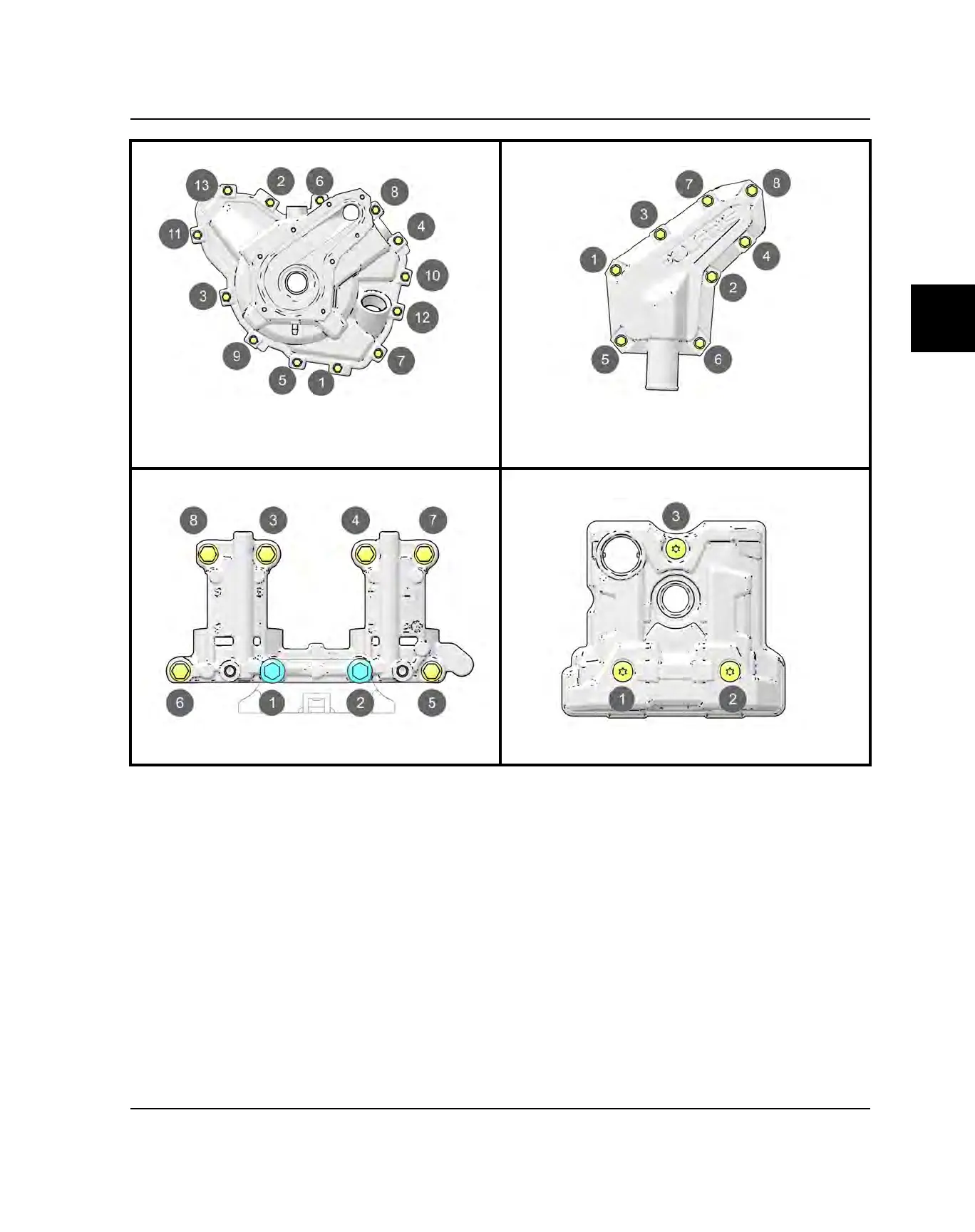

STATOR COVER WATER COVER
Stator Cover Bolts
9 ft-lbs (12 Nm)
Water Cover Bolts
9 ft-lbs (12 Nm)
(Apply Loctite® 204™ to
bolt threads)
CAM CARRIER
VALVE COVER
Camshaft Carrier Bolts
7 ft-lbs (10 N·m)
Valve Cover Bolts
7 ft-lbs (10 N·m)
ENGINE / COOLING SYSTEM
