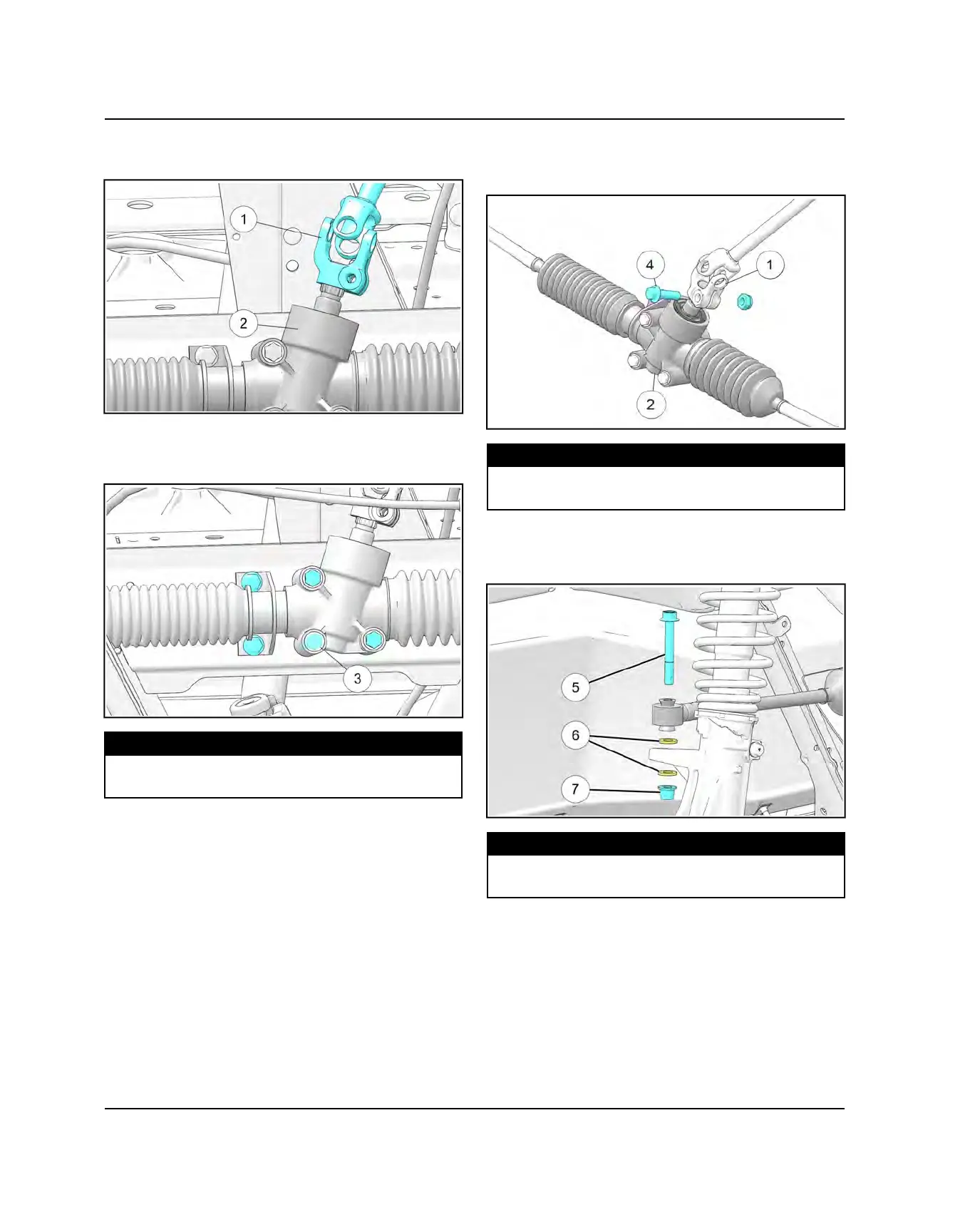

2. Install the steering rack in the vehicle. Align the
splines of the steering shaft
q
to the steering rack
w
.
3. Install the fasteners
e
, washers, and nuts attaching
the steering rack to the chassis. Torque to
specification.
TORQUE
Steering Rack Mounting Fasteners:
16 ft-lbs (22 N·m)
4. Install the pinch bolt
r
retaining the steering shaft
q
to the steering rack assembly
w
. Torque to
specification.
TORQUE
Steering Shaft Pinch Bolt:
46 ft-lbs (62 N·m)
5. Install the fasteners
t
, washers
y
, and nuts
u
retaining the both tie rod ends to the steering knuckle.
Torque to specification.
TORQUE
Tie Rod End Fastener:
40 ft-lbs (54 N·m)
6. Install cotter pins in both tie rod end fasteners.
7. Verify that steering alignment is within specifications.
If not, perform steering alignment.
