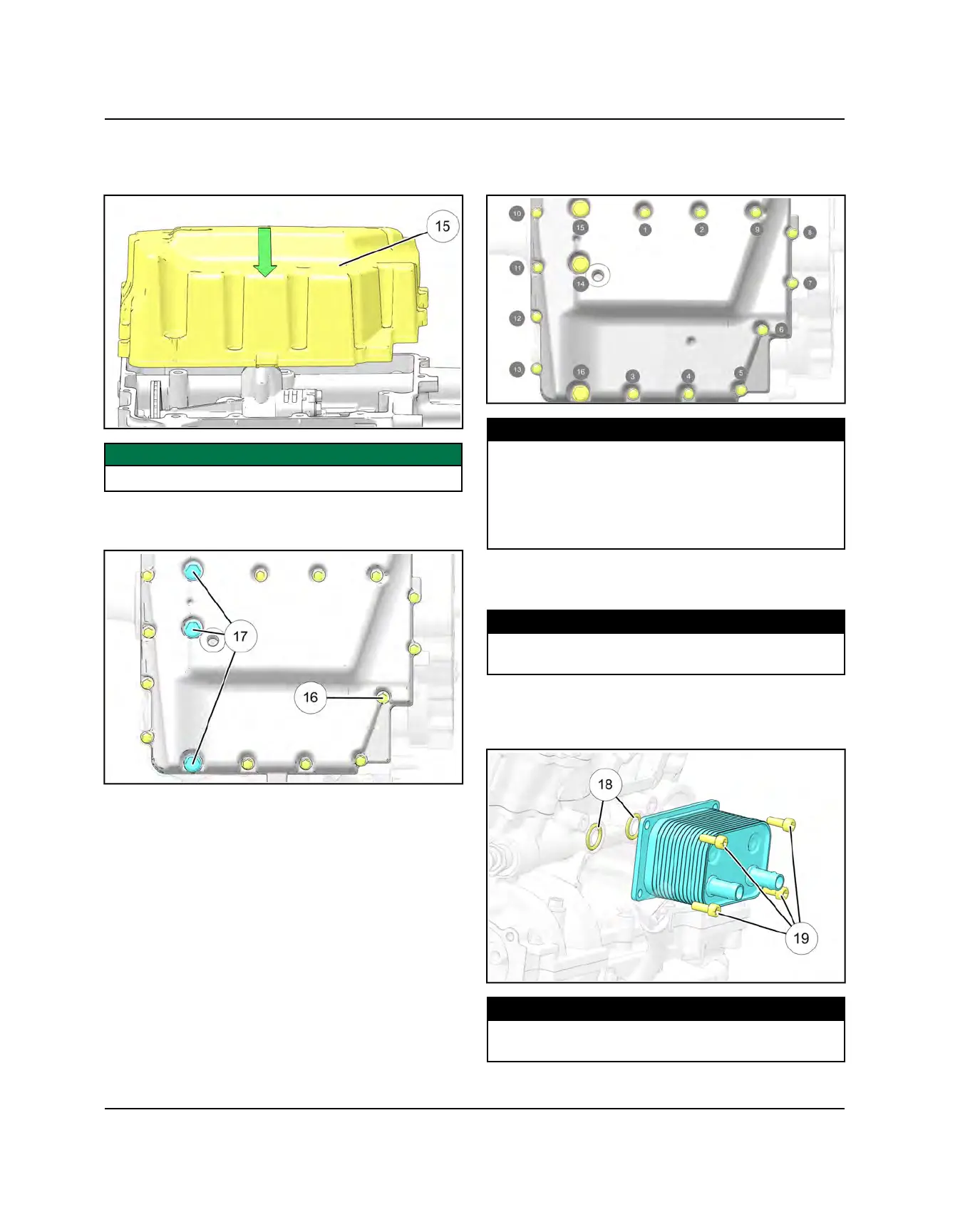

23.Apply a thin, continuous film of Crankcase Sealant
(2871557) to sump cover mating surface and install
the oil sump cover
h
onto the crankcase.
IMPORTANT
Do not allow sealant to dry before assembly.
24.Install the thirteen M6
j
and three M8 bolts that
retain the oil sump cover
k
to the crankcase.
25.Torque the oil sump cover bolts in sequence to
specification. Repeat the sequence to verify final
torque.
TORQUE
Oil Pan Bolts:
M8 Bolts:
26 ft-lb (35 Nm)
M6 Bolts:
9 ft-lb (12 Nm)
26.Reinstall the crankcase drain plug if previously
removed. Torque drain plug to specification.
TORQUE
Crankcase Drain Plug:
12 ft-lbs (16 Nm)
27.Reinstall the oil cooler
l
, if previously removed. Use
new O-rings
1(
upon installation. Torque fasteners to
specification.
TORQUE
Oil Cooler bolts:
7 ft-lb (10 Nm)
ENGINE / COOLING SYSTEM
