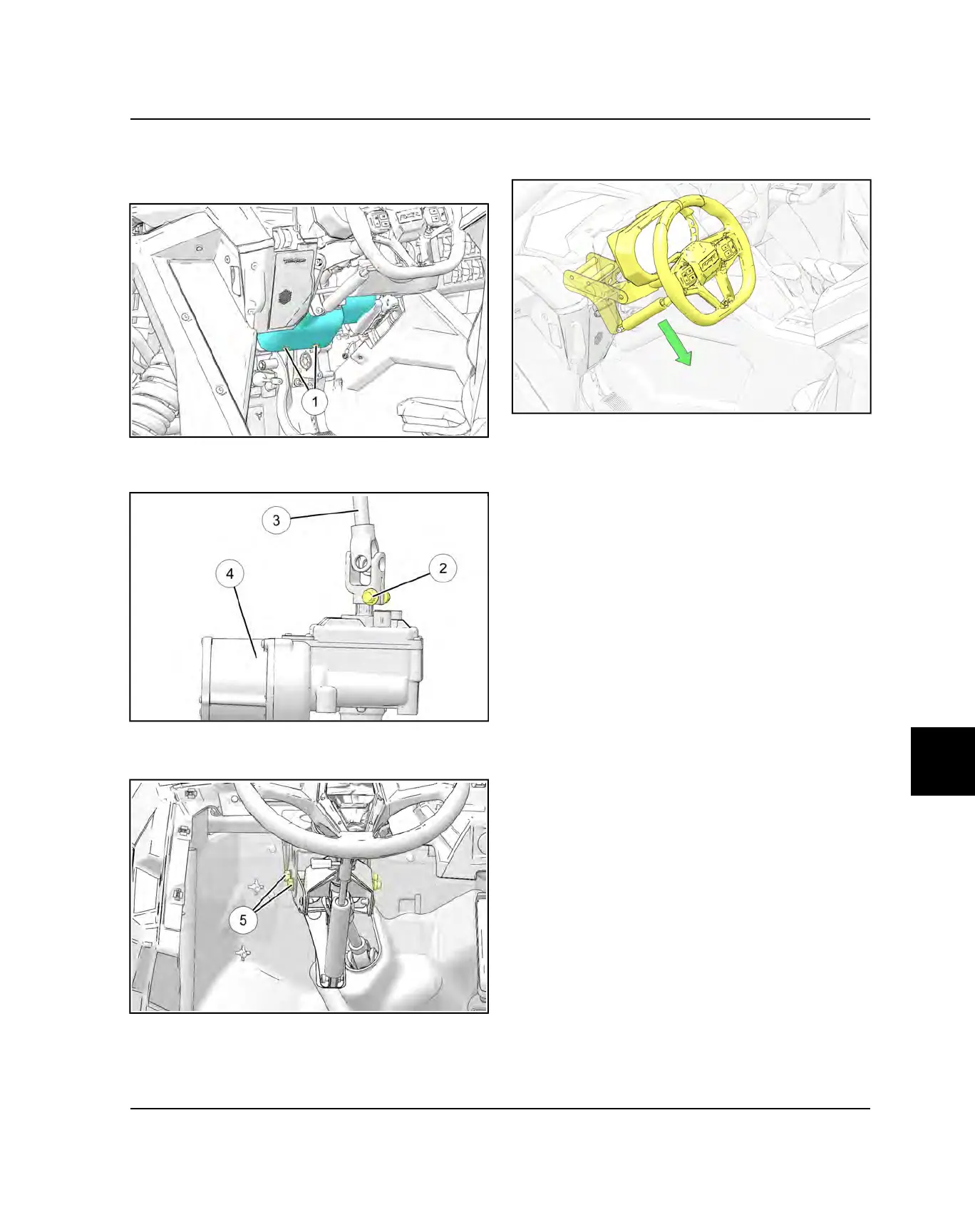

UPPER STEERING SHAFT REMOVAL
1. Remove the two Torx fasteners
q
retaining the black
plastic cover and remove the cover from the vehicle.
2. Remove the pinch bolt retaining the upper steering
shaft to the power steering unit.
3. Lift the steering wheel up and remove the fasteners
t
that retain the steering column.
4. Disconnect electrical harness from the C4 gauge.
5. Remove the steering shaft, steering column, gauge,
and steering wheel from the vehicle as an assembly.
6. If replacing the upper steering shaft or steering wheel,
refer to Steering Wheel Removal page 9.6.
