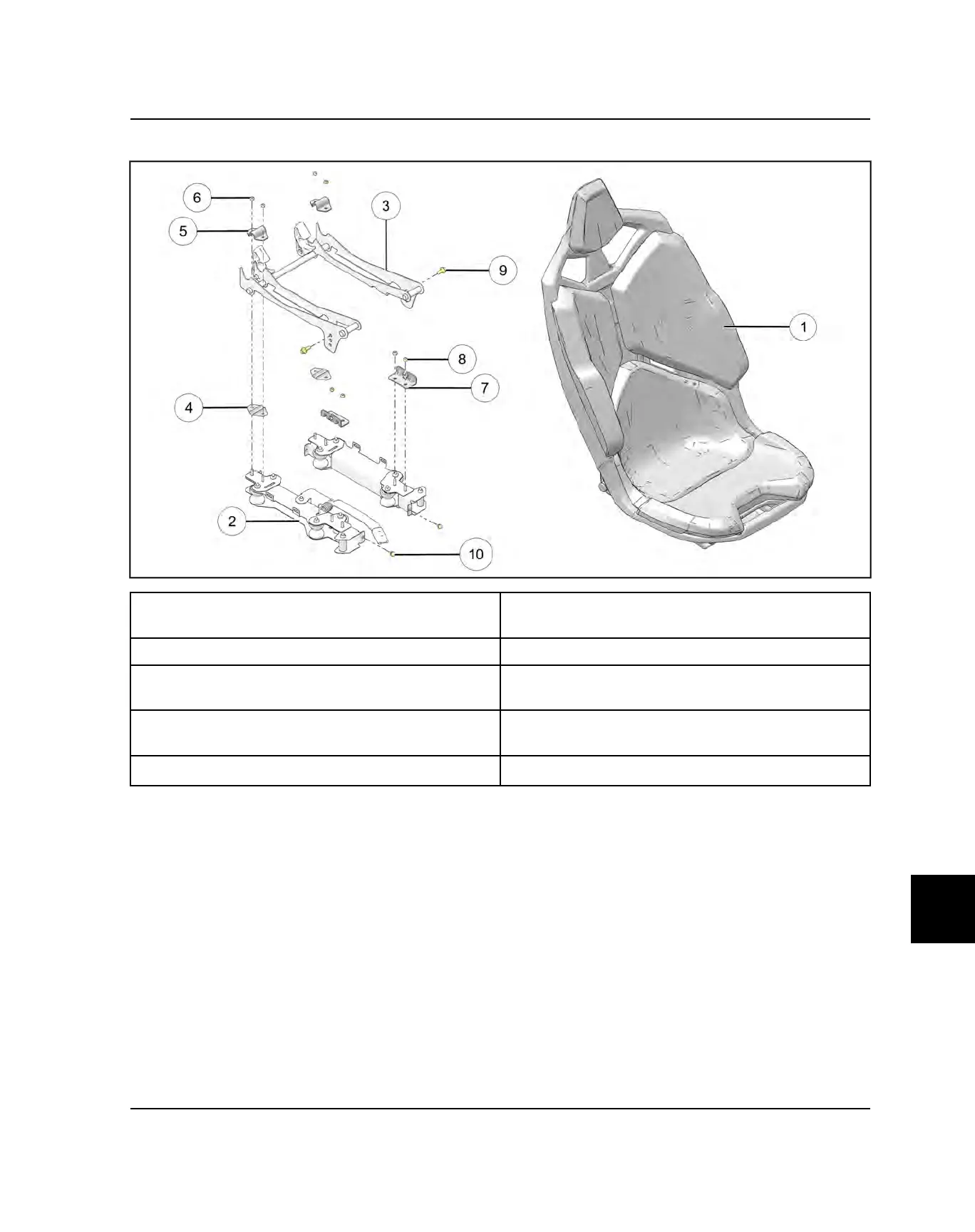

SEAT ASSEMBLY
q
Seat Assembly
y
Nyloc Nut - 6 mm x 1
7 ft-lbs (10 Nm)
w
Seat Slider Frame
u
Slide/Tilt Bracket
e
Slide/Tilt Receiver
i
Nyloc Nut - 6 mm x 1
7 ft-lbs (10 Nm)
r
Lower Hinge Bushing
o
Fastener - M8 x 1.25 x 20 (10.9)
15 ft-lbs (20 Nm)
t
Upper Hinge Bracket
a
Bumper Grommet
