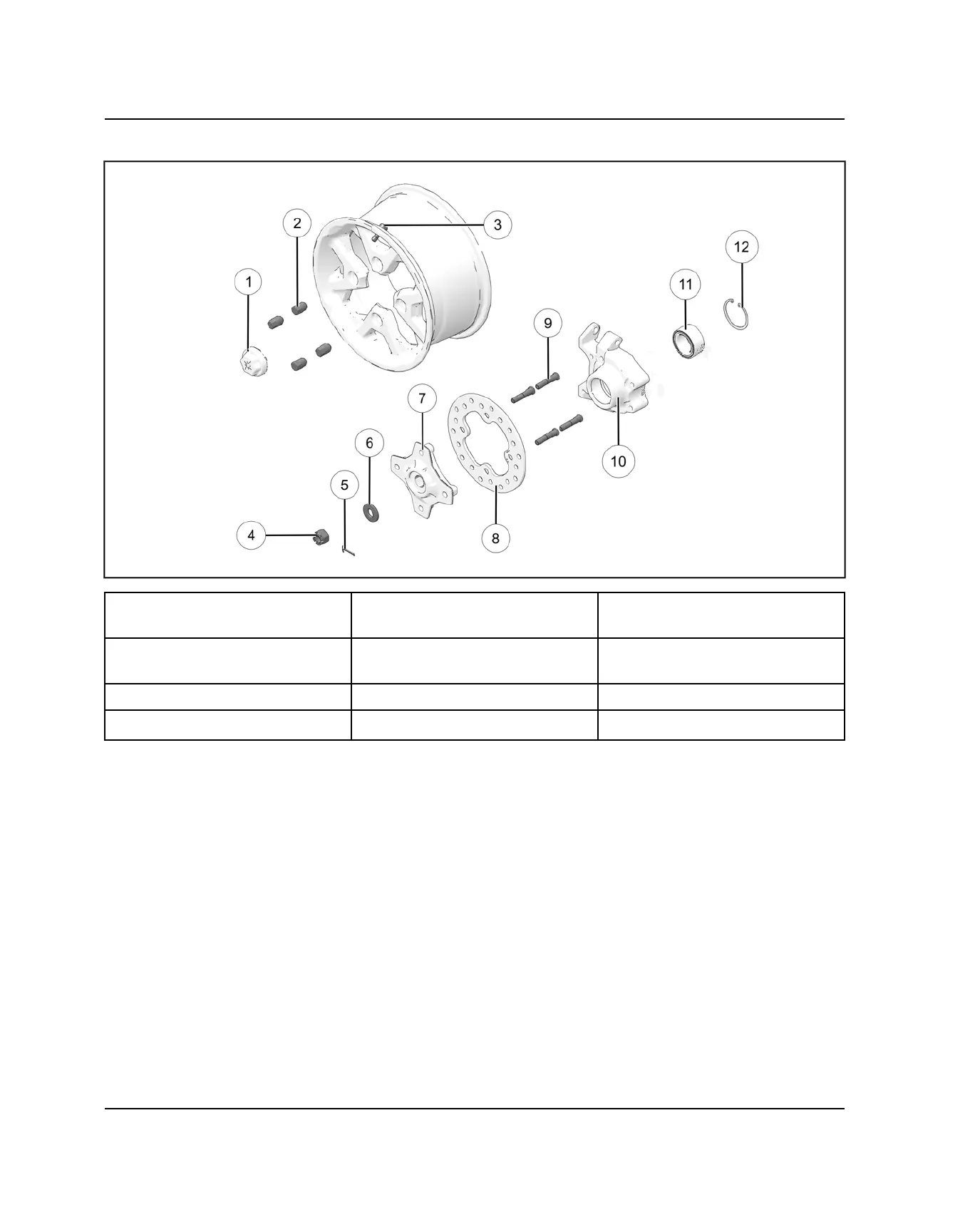

REAR HUB ASSEMBLY VIEW
q
Wheel Cap
w
Wheel Lug Nuts
120 ft-lbs (163 Nm)
e
Valve Stem
r
Cotter Pin
t
Hub Castle Nut
180 ft-lbs (244 Nm)
y
Cone Washer
u
Wheel Hub
i
Brake Disc
o
Wheel Studs
a
Bearing Carrier
s
Wheel Bearing
d
Snap Ring
FINAL DRIVE
