Polaris RZR PRO XP 4 2021

11
9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
11.9

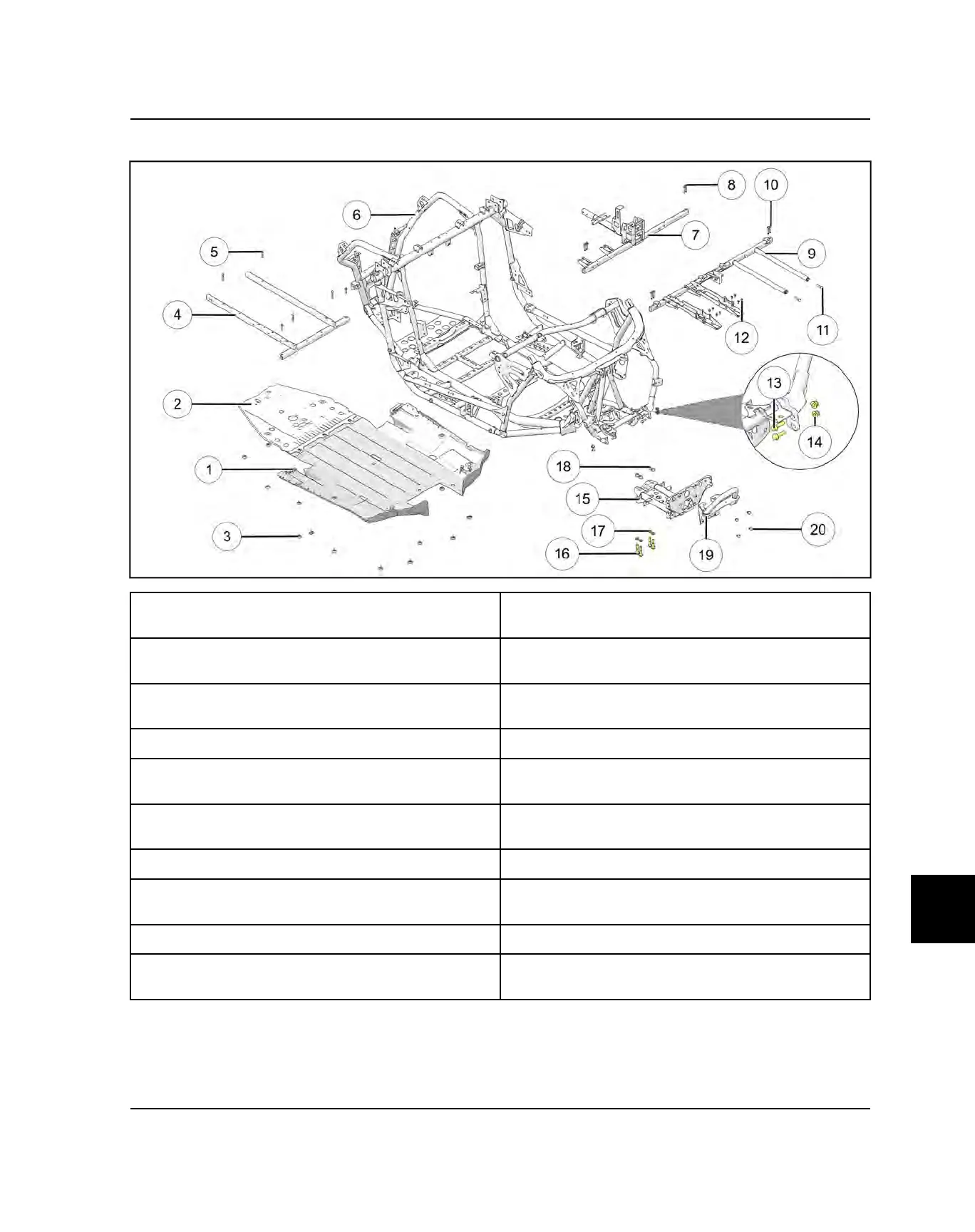

CHASSIS / MAIN FRAME
q
Front Skid Plate
s
Slider Rail Fasteners
30 ft-lbs (40 Nm)
w
Rear Skid Plate
d
Passenger Seat Bracket Fasteners
9 ft-lbs (12 Nm)
e
Skid Plate Fasteners
9 ft-lbs (12 Nm)
f
Main-to-Front Frame Fasteners
33 ft-lbs (45 Nm)
r
Cargo Box Support Bracket
g
Flanged Nyloc Nut - M10 x 1.5
t
Cargo Box Support Bracket Fasteners
15 ft-lbs (20 Nm)
h
Front Frame Assembly
y
Main Frame Assembly
j
Front Frame Fasteners
148 ft-lbs (200 Nm)
u
Shift Linkage Support Bracket
k
Washer - 15 x 28 x 2.5
i
Shift Linkage Support Bracket Fasteners
15 ft-lbs (20 Nm)
l
Flanged Nut - M14 x 2
o
Seat Base Support Bracket
1(
Front Bumper
a
Seat Base Support Bracket Fasteners
15 ft-lbs (20 Nm)
2)
Front Bumper Bracket Fasteners
30 ft-lbs (40 Nm)
BODY / FRAME
