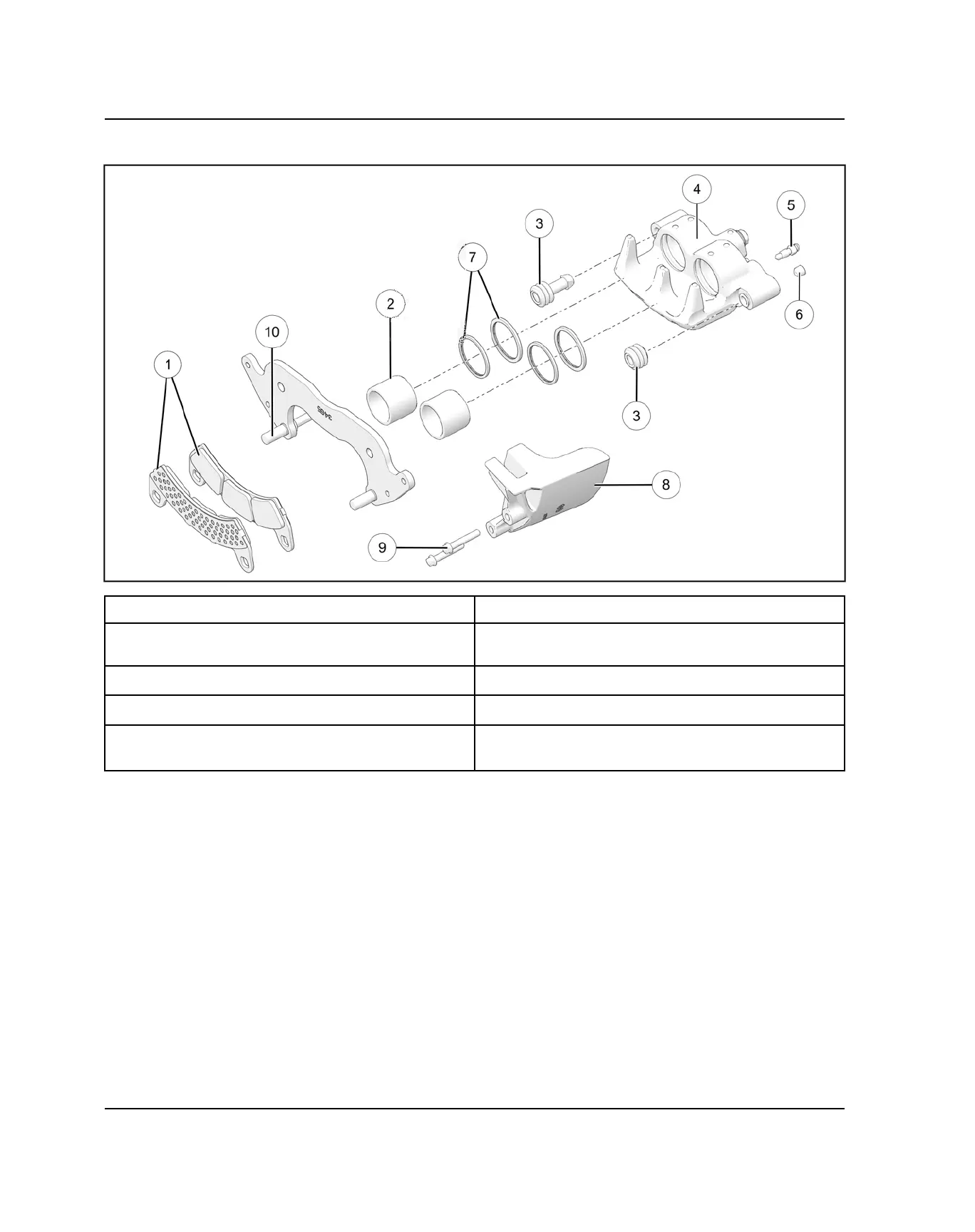

FRONT CALIPER ASSEMBLY VIEW (4-SEAT)
q
Brake Pads
y
Set Screw
w
Pistons
lubricate with DOT 4 Brake Fluid
u
Piston O-Rings
lubricate with DOT 4 Brake Fluid
e
Boots
i
Brake Scraper
r
Caliper Assembly
o
Scraper Bolts
t
Bleeder Screw
a
Mount Pins
apply Silicone Grease on install
