9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
12.5

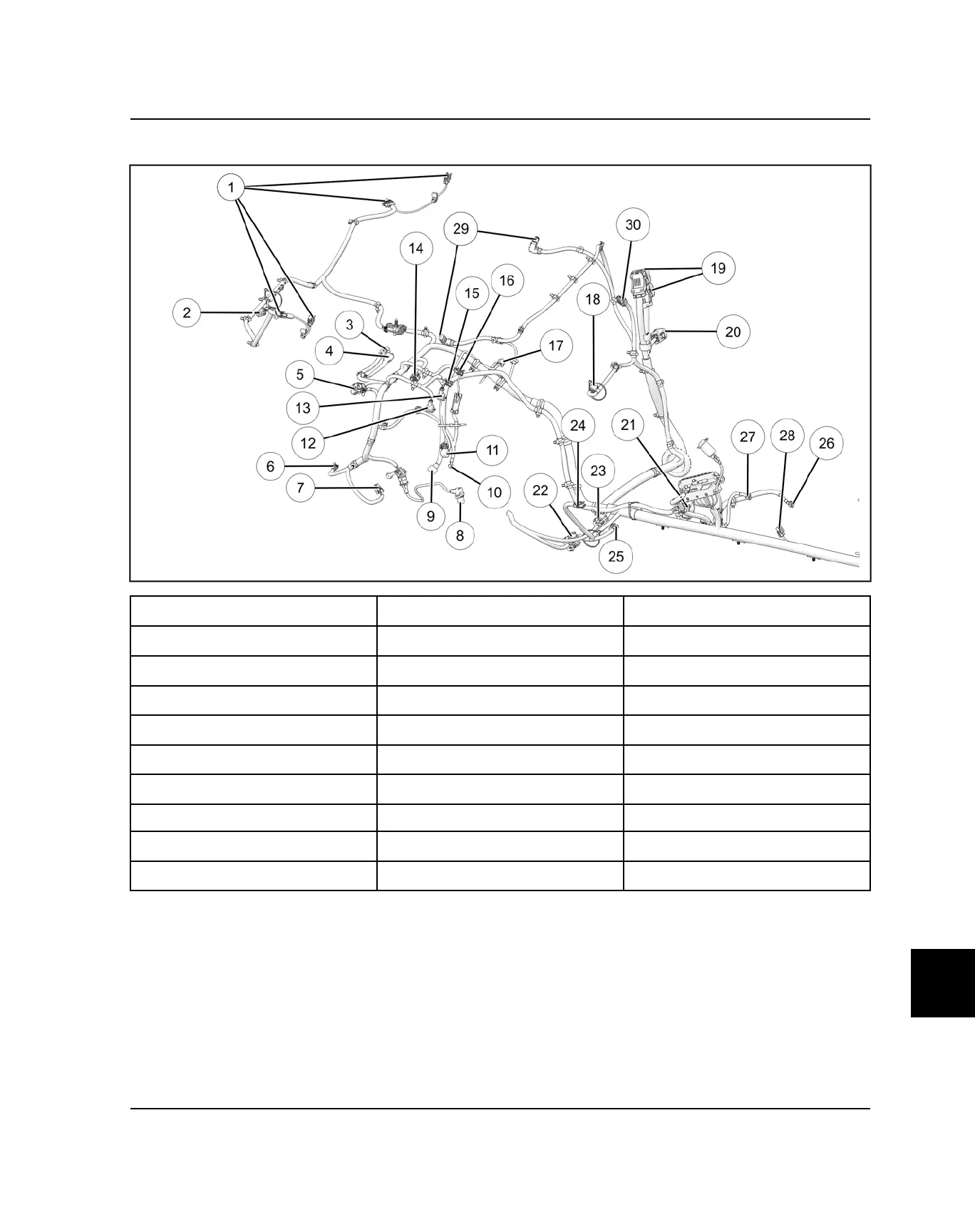

ELECTRICAL COMPONENT LOCATIONS (REAR)
q
Tail Light Harness
s
Knock Sensor
2!
Starter Solenoid
w
Back Up Camera
d
MAG Injector
2@
Stator 1
e
Electronic Throttle Body
f
PTO Injector
2#
Stator 2
r
Boost Pressure Sensor
g
TMAP Sensor
2$
Fuel Pump and Sender
t
Oxygen Sensor
h
MAG Coil
2%
Charge Air Cooler Pump
y
Vehicle Speed Sensor
j
PTO Coil
2^
Battery (+)
u
Transmission Switch
k
Fuel Pressure Sensor
2&
Battery (-)
i
Crankshaft Position Sensor
l
Waste Gate Control
2*
Seat Belt Switch
o
Starter (+)
1(
ECU
2(
Shock Actuator
a
Engine Ground
2)
Fuel Pump Driver Module
3)
Barometric Air Pressure Sensor
ELECTRICAL
