8.25

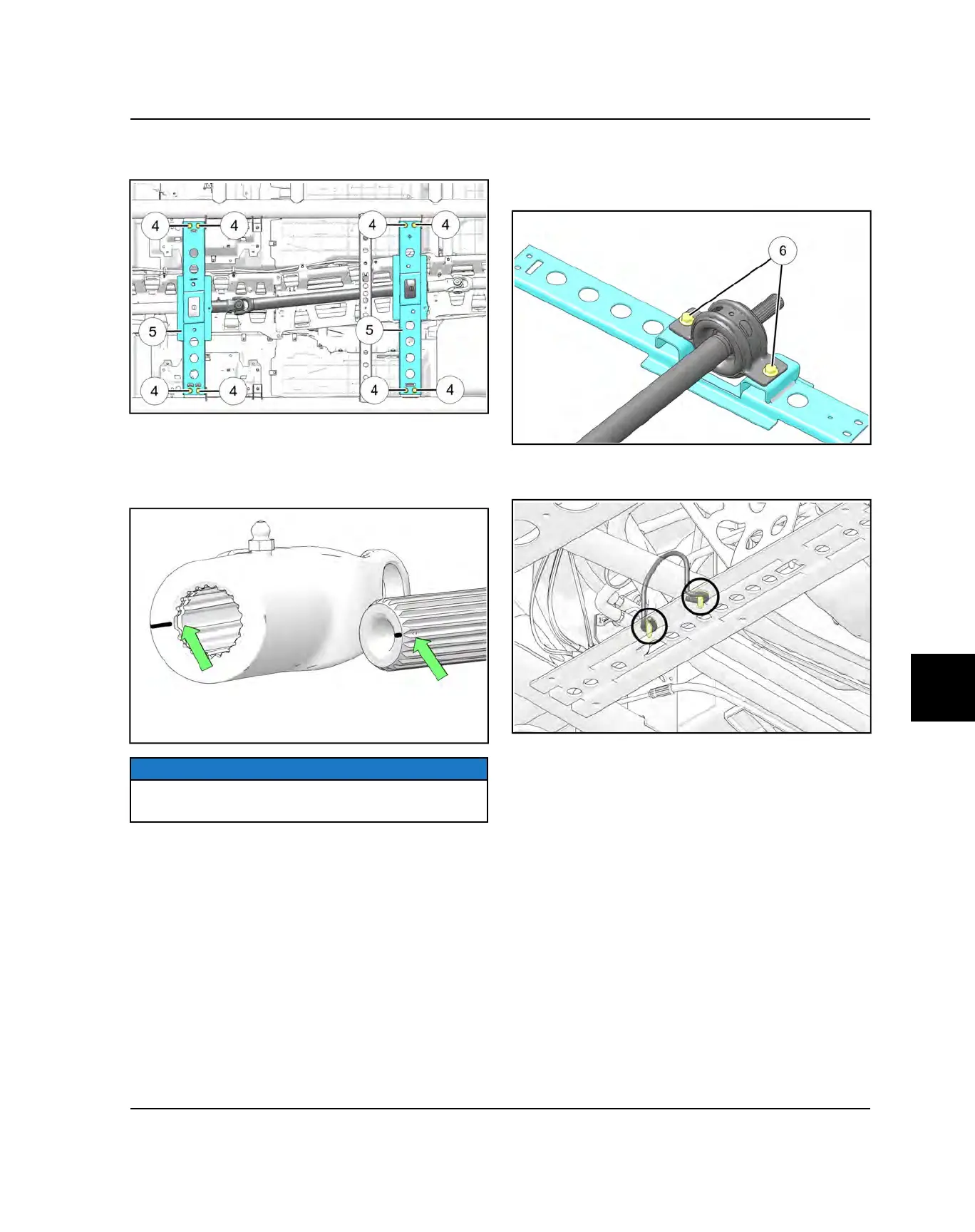

4. Remove four fasteners
r
from each prop shaft
mounting plate
t
.
5. Disconnect prop shafts from each other. Remove
middle prop shaft, and front prop shaft through the
bottom of the vehicle.
6. Mark prop shafts for reassembly.
NOTICE
The prop shafts have a master spline and will only go
on one way.
7. Remove two fasteners
y
retaining each prop shaft
bearing to its mounting plate. Take to avoid incorrect
installation, mark each plate as “front plate” or “rear
plate”.
8. Remove the two fasteners retaining roll hoop to the
frame. Remove roll hoop.
9. Remove rear prop shaft through the bottom of the
vehicle.
FINAL DRIVE
