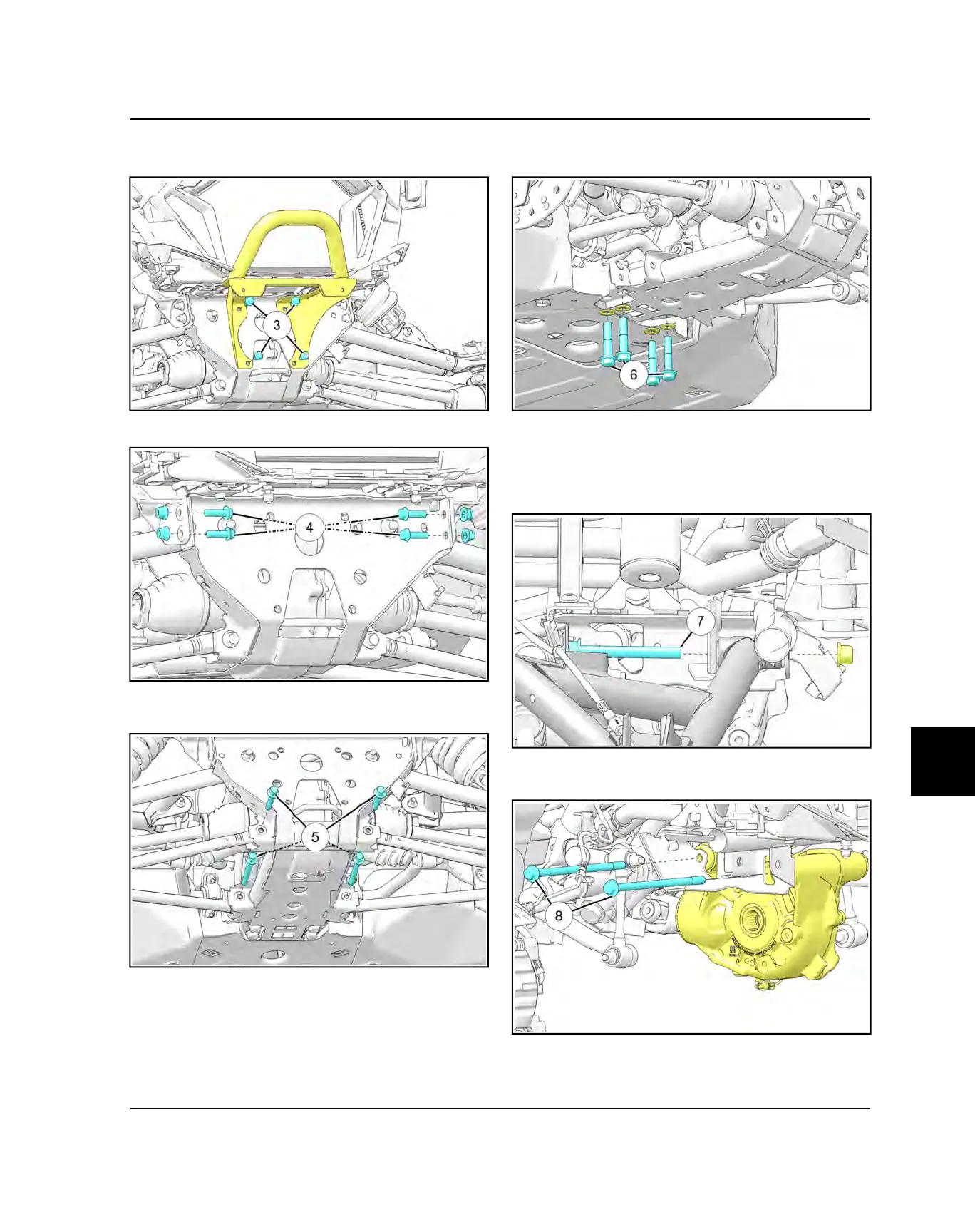

6. Remove two plastic clips that retain bumper to
valence and four fasteners
e
.
7. Remove front four bolts from sub frame
r
.
8. Remove four control arm bolts
t
and remove control
arms from sub frame bracket.
9. Remove four rear bolts
y
from front sub frame to
main frame.
10.Remove front sub frame.
11. Remove roll pin from front driveshaft.
12.Remove upper control arm front bolt and pry A arm
up to remove front diff mounting bolt
u
.
13.Remove gearcase fasteners
i
and remove gearcase
from vehicle.
14.Remove Steering shaft from Rack.
