9
9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
9.29

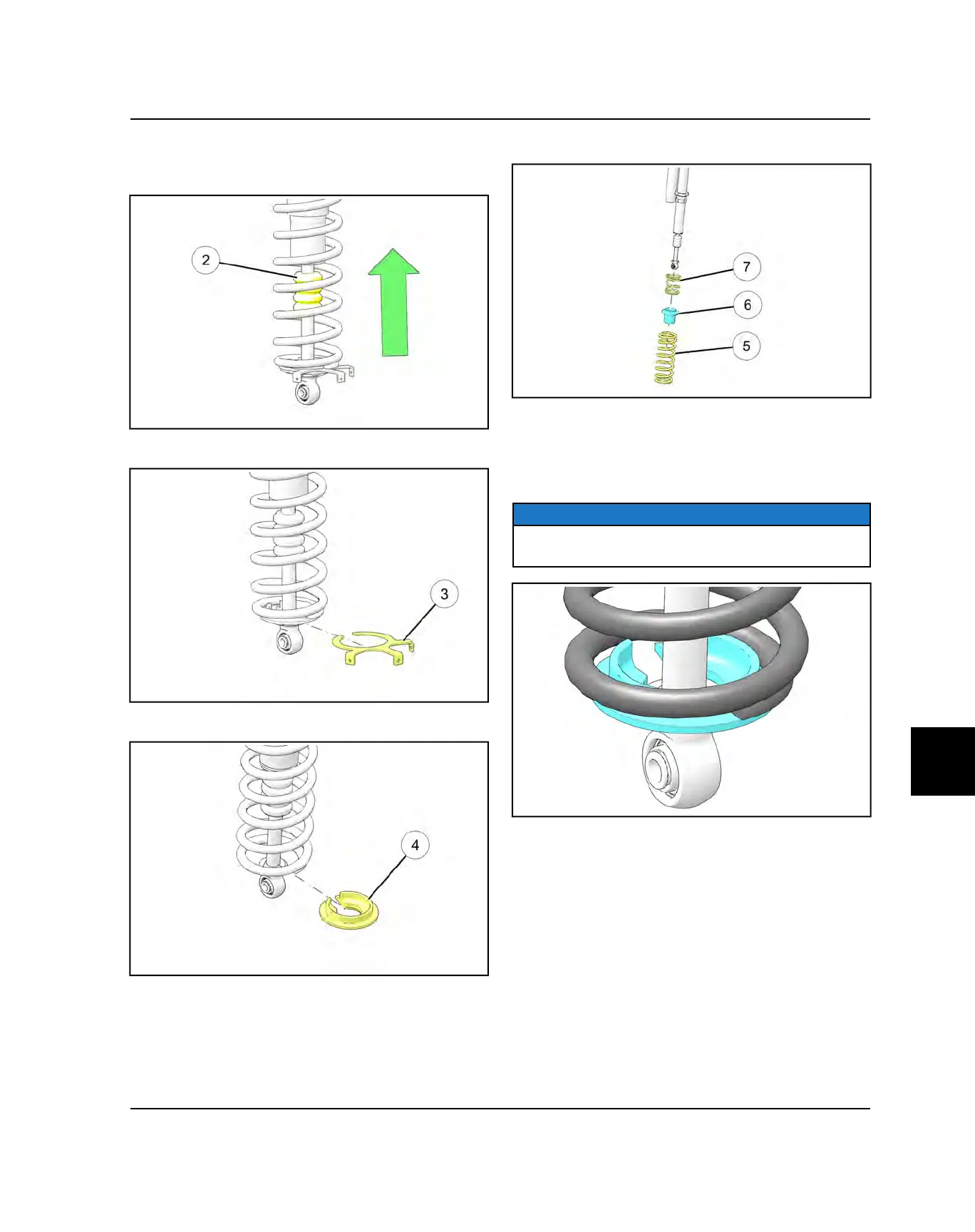

4. Gently pry the bump stop
w
toward the top of the
shock to clear the lower spring perch being careful
not to scratch or damage the shock shaft.
5. Remove mud guard ring
e
.
6. Remove bottom spring perch
r
.
7. Remove main spring
t
.
8. Remove spring spacer
y
.
9. Remove tender spring
u
.
10.Installation is performed by reversing the removal
procedure.
NOTICE
The spring retainer gap should be 180° from the end of
the spring upon installation.
11. Adjust the shocks. Reference Shock Adjustment
page 2.51.
STEERING / SUSPENSION
