Assembly 6.
The compact headend must be mounted in a well-ventilated room. The ambient temperature must not exceed
45 °C. It must be ensured that the air can circulate freely through the ventilation holes, especially in horizontal
19" mounting. There must be at least 15 cm of space around the device, so that the air can circulate properly.
For mounting or when working on the wiring, the mains plug must be pulled.
= Heat build-up !!!
Grounding 6.1.
The device must be grounded in accordance with EN 60728-11.
- Strip approx. 15 mm of the cable insulation of the grounding cable (4mm
2
).
- Push stripped end under the earth screw and tighten the screw.

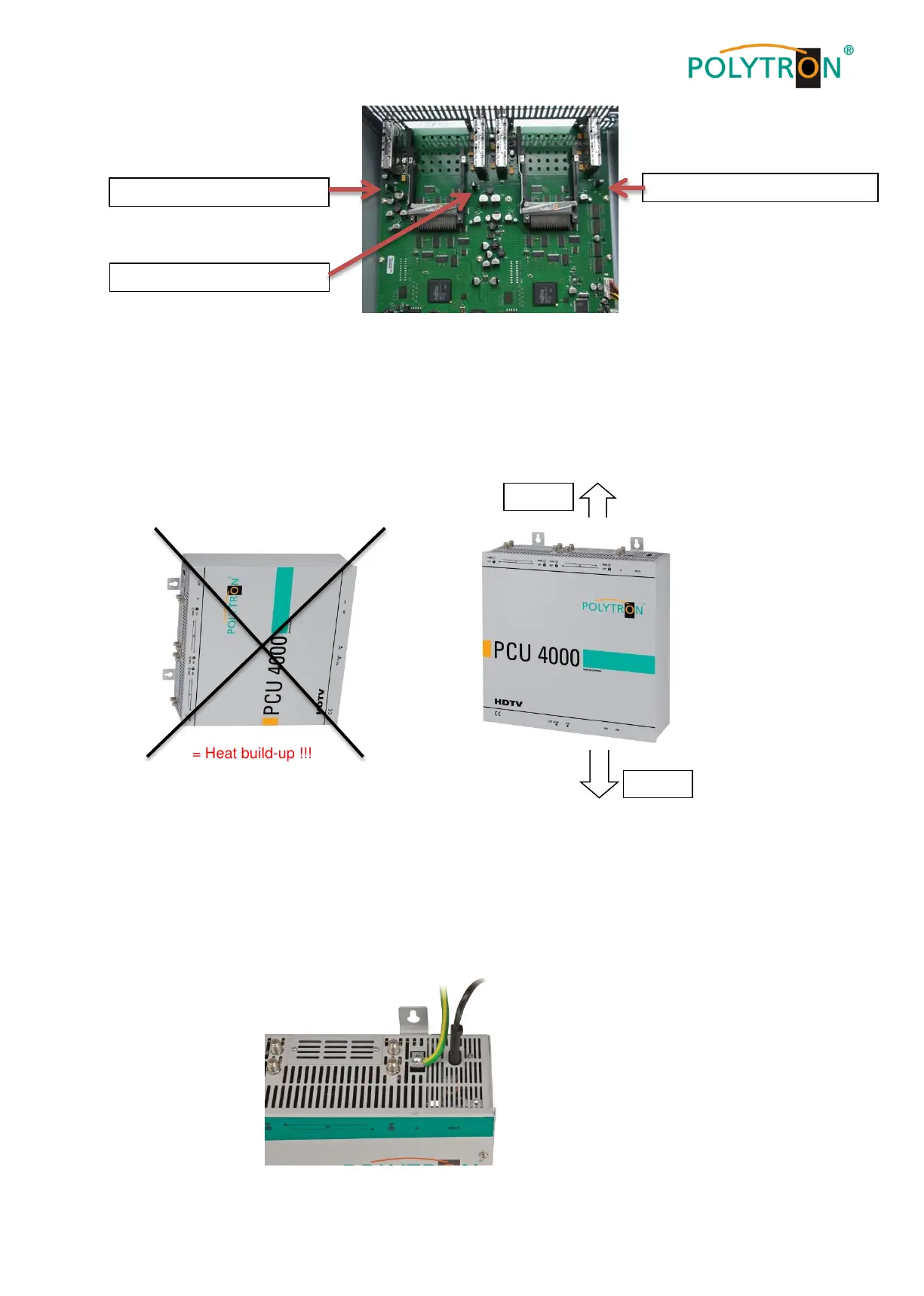

J1 > 12V on/off SAT-Tuner 1
J2 > 12V on/off SAT-Tuner 2
J3 > 12V on/off Tuner 4 terr.
