The guidelines shown apply to the signal-to-noise ratio SNR.
The corresponding values of the FEC (forward error correction) have to
be taken from the tables of the satellite operators. If e.g. the
transponder has an FEC of 5/6, the SNR display must be at least 9 dB
to guarantee good signals.
8.2.2. Input parameters for the terrestrial range

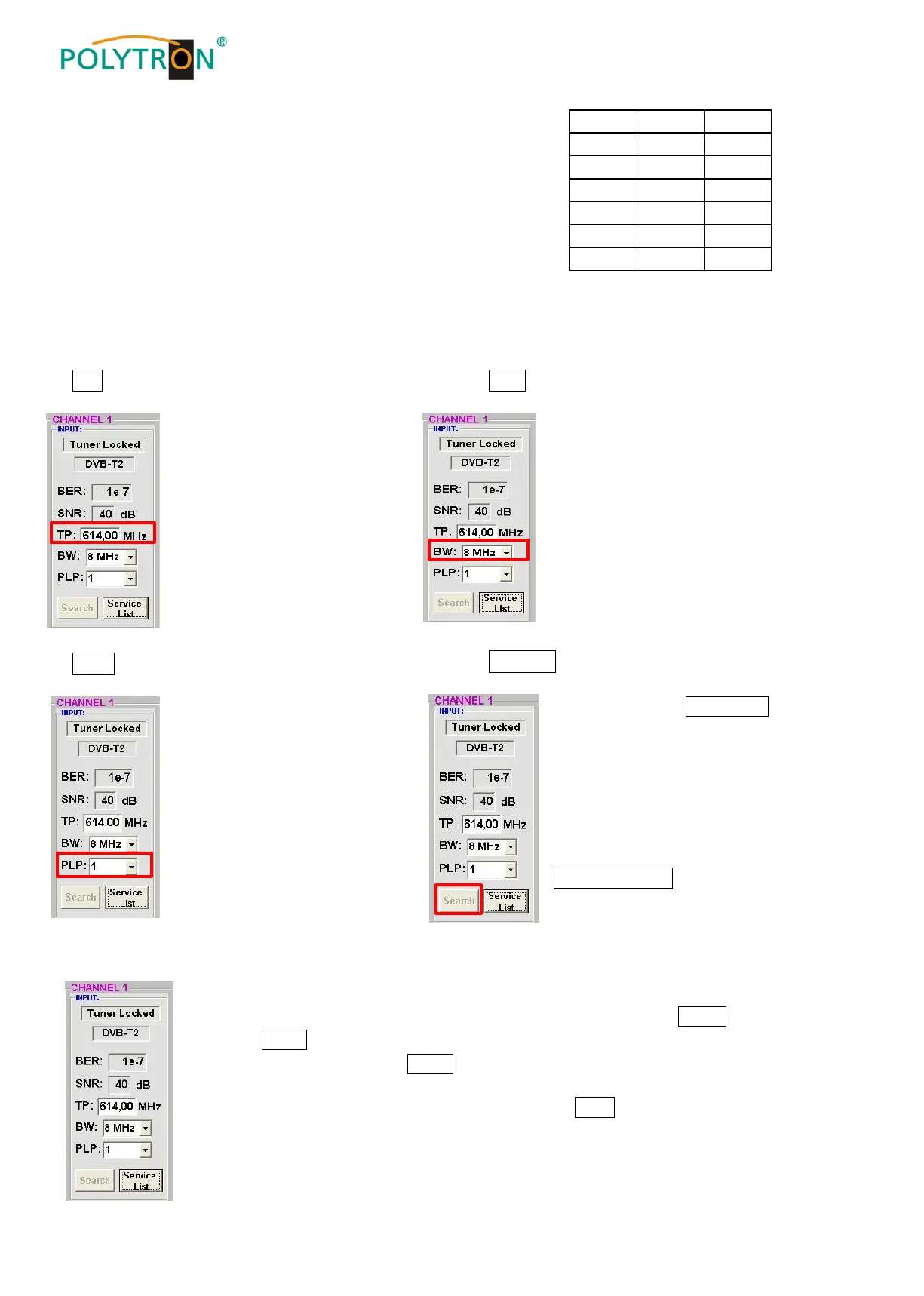

TP > Input Frequency
The kind of input signal
will be identified automatically.
Select input frequency
BW > Channel Bandwidth
7 or 8 MHz
PLP > Select Service (DVB-T2)
Search > Searching
After the button Search has been
activated, the data is accepted and the
desired channel is set.
Select PLP
If the tuner finds the channel
Tuner Locked is displayed in the upper
field.
Receiving Conditions
The quality of the input signal can be evaluated using the bit error ratio BER and the signal-to-
noise ratio SNR .
Recommendation: bit error ratio BER should be ≤1e-6
For DVB-T, the limit value for the signal-to-noise ratio SNR at DVB-T is 26 dB
and 32 dB for DVB-T2.
FEC gut sehr gut
1/2 5-7dB 8-11dB
2/3 7-9dB 10-13dB
3/4 8-10dB 11-14dB
5/6 9-11dB 12-15dB
7/8 10-12dB 13-16dB
To Next Page
