Installation 7.
Connection of the input signals
Connect SAT signals directly or via splitter to the SAT tuner inputs. At input 1 and 2 there are 12 V DC for the
supplying of the LNB. DVB-T and DVB-C need to be connected to the terrestrial inputs. At the terrestrial input
4 there are 12 V DC for a terrestrial pre-amplifier.
Please note that the consumption of each input must not exceed 250 mA.
A total of 500 mA is available.
Insertion of the CI modules

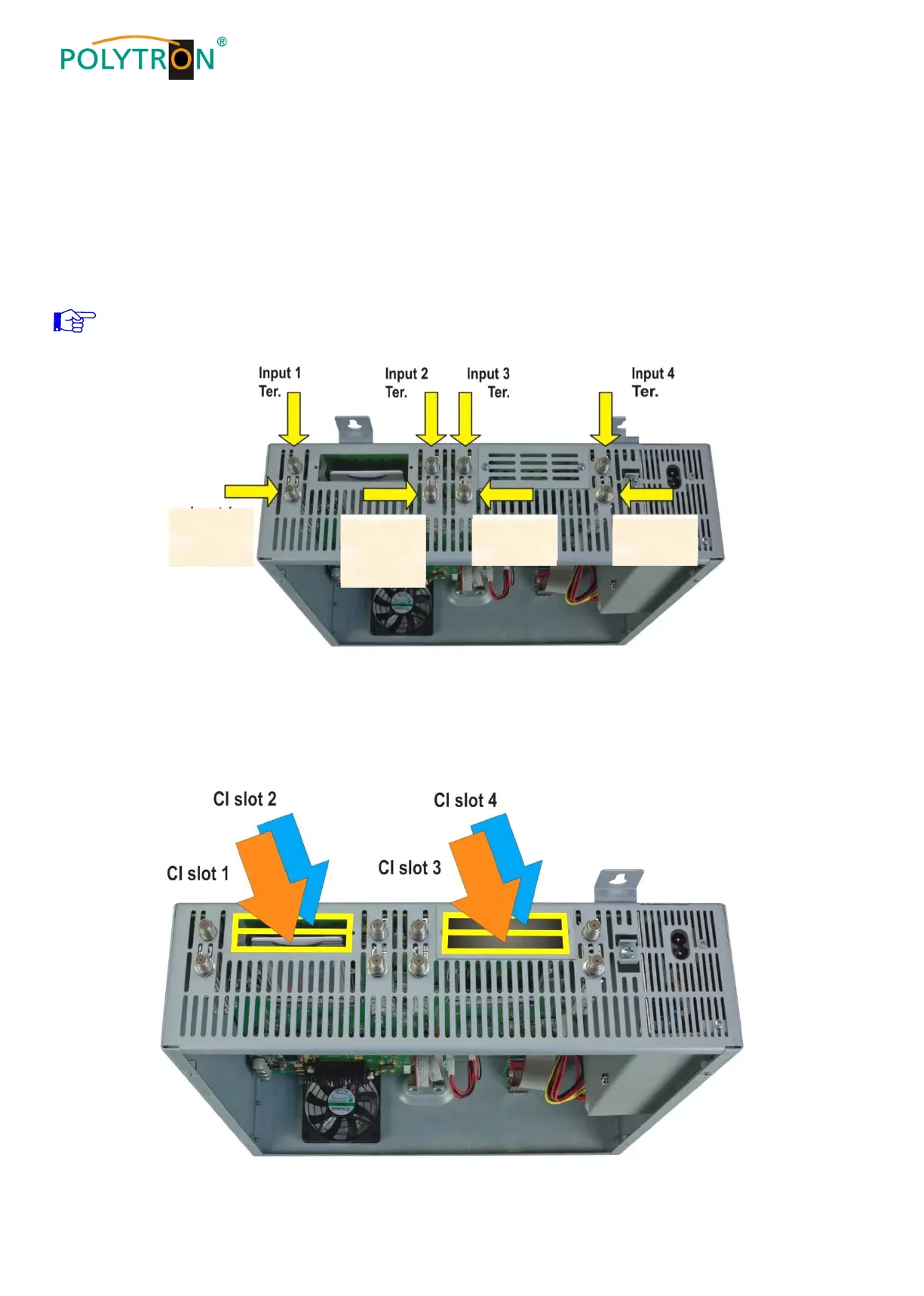

To insert the CI modules, the covers must be removed. Use the picture to see how the CI slots are assigned
to the SAT inputs. Always insert the module with the address facing forwards (in the direction of the lid).
