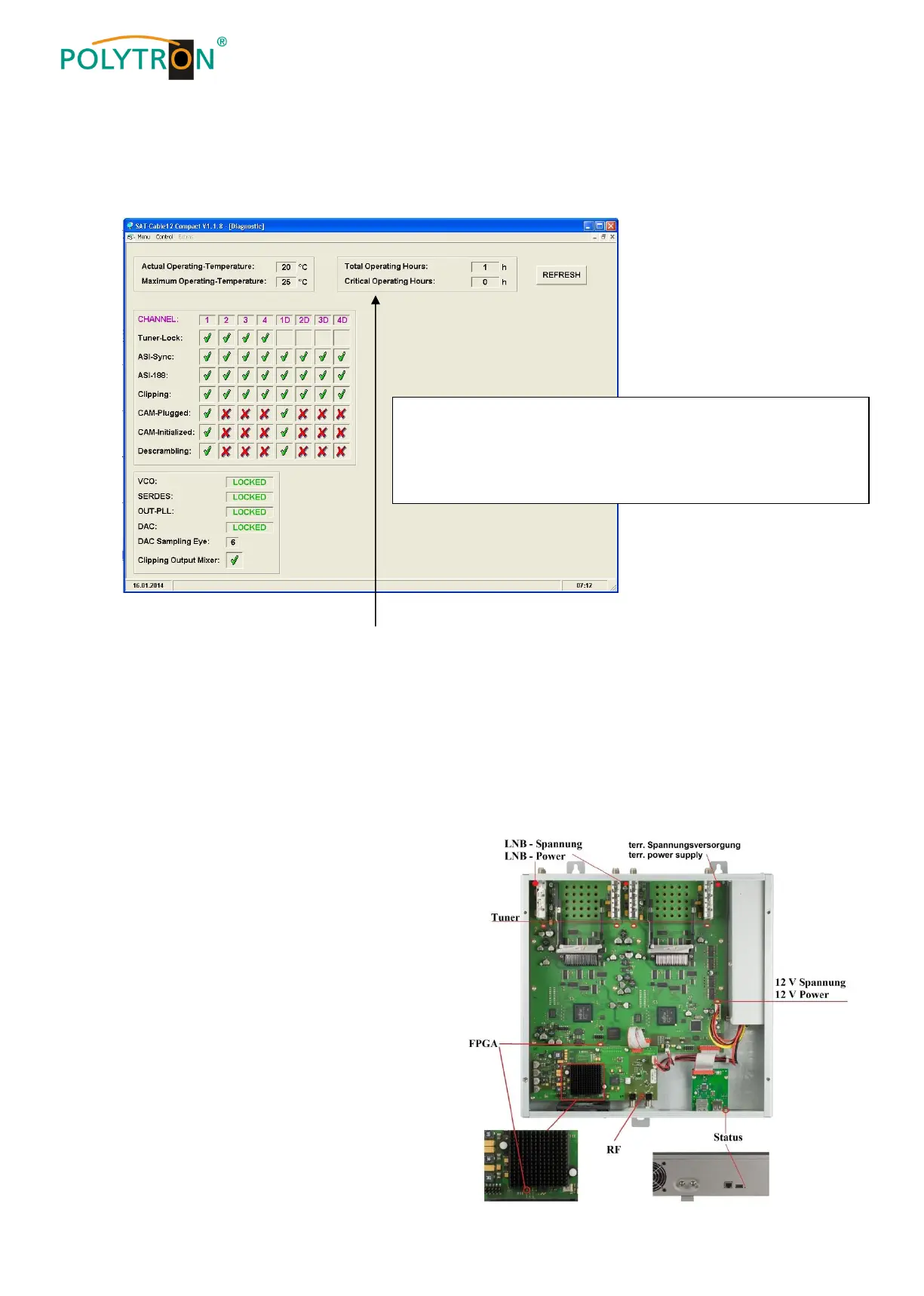

Diagnostics 8.6.
The "Diagnostic“ menu is for service purposes and can be helpful during error analysis by telephone on the
Hotline+49(0)7081-1702-0. The displayed data can be updated with REFRESH.
Menu Header Display:
Actual Operating Temperature: approx. current ambient temperature
Total Operating Hours: operating hours
Maximum Operating Temperature: maximum measured ambient temperature
Critical Operating Hours: operating hours at ambient temperature of over 45°C
The temperatures shown only correspond to the actual values in the case of correct, vertical installation with a
closed housing cover.
LED key 8.7.
LNB green: 12V output voltage
off: no output voltage
Tuner green continuous: tuner logged
green flashing: tuner not logged
FPGA green: configured, ready to operate
off: fault
12 V green: 12 V power adaptor O.K.
off: power adaptor fault
RF green: output O.K.
off: fault
Status green: all tuners logged, ready for use
orange : different functions in programming
CAM-Plugged: Shows whether the CAM module has been inserted.
CAM-Initialized: Shows whether the CAM module was detected.
Descrambling: Shows whether the program has been decrypted.
