PoolPak HCD 2600 - Unit Dimension Details

18 EGW06-PCPEG-20140813
TM
TM

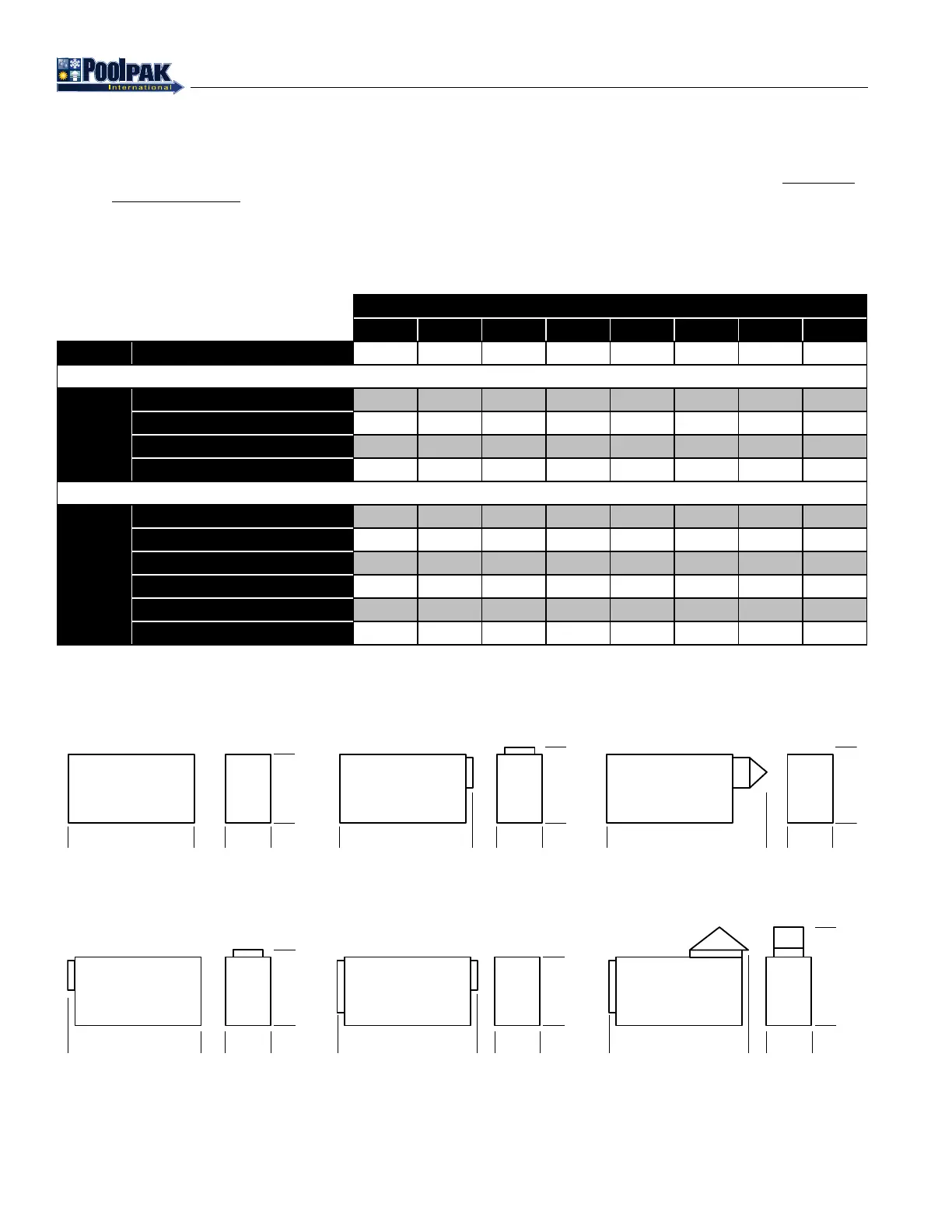

POOLCOMPAK UNIT DIMENSIONS
The latest detailed unit dimensional data may be found in the PoolComPak™ Series AWH/HCDH, AWV/HCDV All
Models R-410A Dimensional Drawings publication (EG6_Dim_All) which can be downloaded from in the PoolPak™
Engineering Library (www.poolpak.com).
PoolComPak™ Horizontal Dimensions
Table 3-3. AW/HCD Horizontal Unit Overall Dimensions
Model Number
550 800 1200 1400 1800 2600 3500 4000
Width Basic (W) 33.9 33.9 33.9 44.1 44.1 44.1 44.1 44.1
Height
Basic (H) 30.6 30.6 30.6 30.5 30.5 48.6 48.6 48.6
Top Return (Hr) 32.6 32.6 32.6 33.0 33.0 51.1 51.1 51.1
Top OA (Ho) 41.1 41.1 41.1 43.0 43.0 61.1 61.1 61.1
Top OA Rainhood (Hro) 50.9 50.9 50.9 52.8 52.8 70.8 70.8 70.8
Length
Basic (L) 60.1 60.1 60.1 72.0 72.0 92.1 92.1 92.1
Rear Return (Lr) 61.8 61.8 61.8 74.7 74.7 94.8 94.8 94.8
Front OA (Lo) 70.8 70.8 70.8 84.8 84.8 104.8 104.8 104.8
Rear Return & Front OA (Lro) 72.1 72.1 72.1 87.0 87.0 107.1 107.1 107.1
Front OA Rainhood (Lrt) 88.0 88.0 88.0 99.9 99.9 120.0 120.0 120.0
Top OA Rainhood(Lrr) 71.3 71.3 71.3 88.2 88.2 108.3 108.3 108.3
Figure 3-1 AW/HCD Horizontal Unit Elevation and End Views
LW
Basic (No OA)
RA Rear or TopRA Rear or Top, OA Front
H
Lo W
Lr W
OA Front or Top - No Rain HoodOA Front - Rain Hood, RA Bottom
Ho
Hr
Lro W
H
RA Rear, OA Top - Rain Hood
Lrr W
Hro
Lrt W
H
PCP_EG_ElevationEndViewDimensions_20140108.eps
Section III: Performance and Sizing
