Section III: Performance and Sizing
ELECTRIC DUCT HEATER
General Duct Heater Information
Power wiring should incorporate properly sized fuses or motor rated circuit breakers. A disconnect must be tted within
easy access and sight of the unit. Supply voltage must be maintained within +/- 10% of design voltage on both single and
three phase units. Cycles must be within +/- 5% of design. Failure to operate within these ranges can adversely affect
performance, cause failure of the equipment, and may void warranty terms.

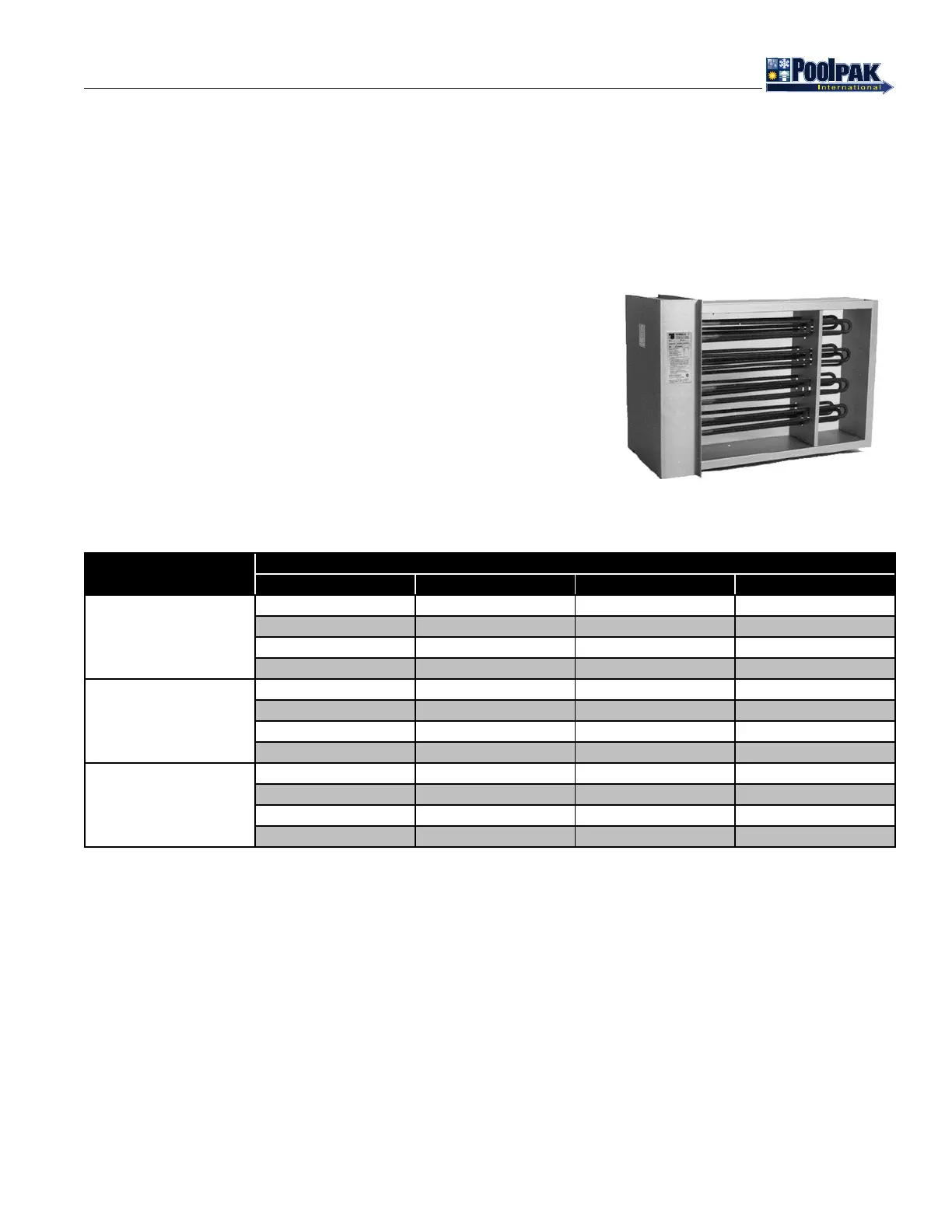

Figure 3-5. Duct Heater
• Tubular, sheathed elements
• Galvanized steel cabinet
• Duct-mounted, anged type
• Airow in either direction
• UL and CSA approved heater
• Airow proving switch
• Auto and manual reset, high temperature limits
• Magnetic contactors
• 24 volt control circuit and transformer
• Standard heater for indoor installation in non-insulated duct
Duct Heater Sizes
Table 3-9. Duct Sizes
Duct Heater Installation
1. Flange both ends of the ducts outwards on three sides to match heater anges as shown.
2. Fasten heater to duct using sheet metal screws for smaller heaters or bolts for larger ones.
3. Seal opening with suitable sealing compound.
4. If needed use additional hangers to support heater.
5. Electrical power connections must be made within NEC standards and local electrical codes.
6. Refer to the Field Wiring Diagram at the back of this manual for controls connection.
Reference Dimensions: Fan Outlet
AWH/HCDH 550/800/1200: 9-1/4 x 10-3/8 inches
AWH/HCDH 1400/1800/2600: 12-1/2 x 13-1/2 inches
AWH/HCDH 2600/3500: 17 x 19 inches
Duct heater width = 8, 10 or 12 inches depending on heater kW; Flange width = 1 inch
VOLTS/HZ/PH
Duct Size
12” X 12” 15” X 15” 20” X 20” 28” X 28”
208/60/1 or 230/60/1
5KW-1STG 10KW-1STG 20KW-1STG ---
10KW-2STG 15KW-1STG 30KW-1STG ---
--- 15KW-2STG 30KW-2STG ---
--- 20KW-2STG 40KW-2STG ---
208/60/3 or 230/60/3
5KW-1STG 10KW-1STG 20KW-1STG 30KW-1STG
10KW-2STG 15KW-1STG 30KW-1STG 45KW-1STG
--- 15KW-2STG 30KW-2STG 45KW-2STG
--- 20KW-2STG 40KW-2STG 60KW-2STG
460/60/3 or 575/60/3
5KW-1STG 10KW-1STG 20KW-1STG 30KW-1STG
10KW-2STG 15KW-1STG 30KW-1STG 45KW-1STG
--- 15KW-2STG 30KW-2STG 45KW-2STG
--- 20KW-2STG 40KW-2STG 60KW-2STG
