Potec PLC-8000 - Reticle Chart Function

- 21 -
17. Reticle Chart Function
 Auxiliary lens: Red/Green Glasses(PLC-8000), Polarizing Glasses(PLC-8000pola)
 Right eye see the vertical bar and left eye see the horizontal bar.
 Basically, the two bars are moved symmetrically from the center coordinates of the
LCD.
 Displayed by moving 0.5cm increments based on Distance 5m.
 When you pressed Single Mask button once: Unit and number are not displayed on
the lower right.
 When you pressed Single Mask button twice: Unit and number are displayed on the
lower right.

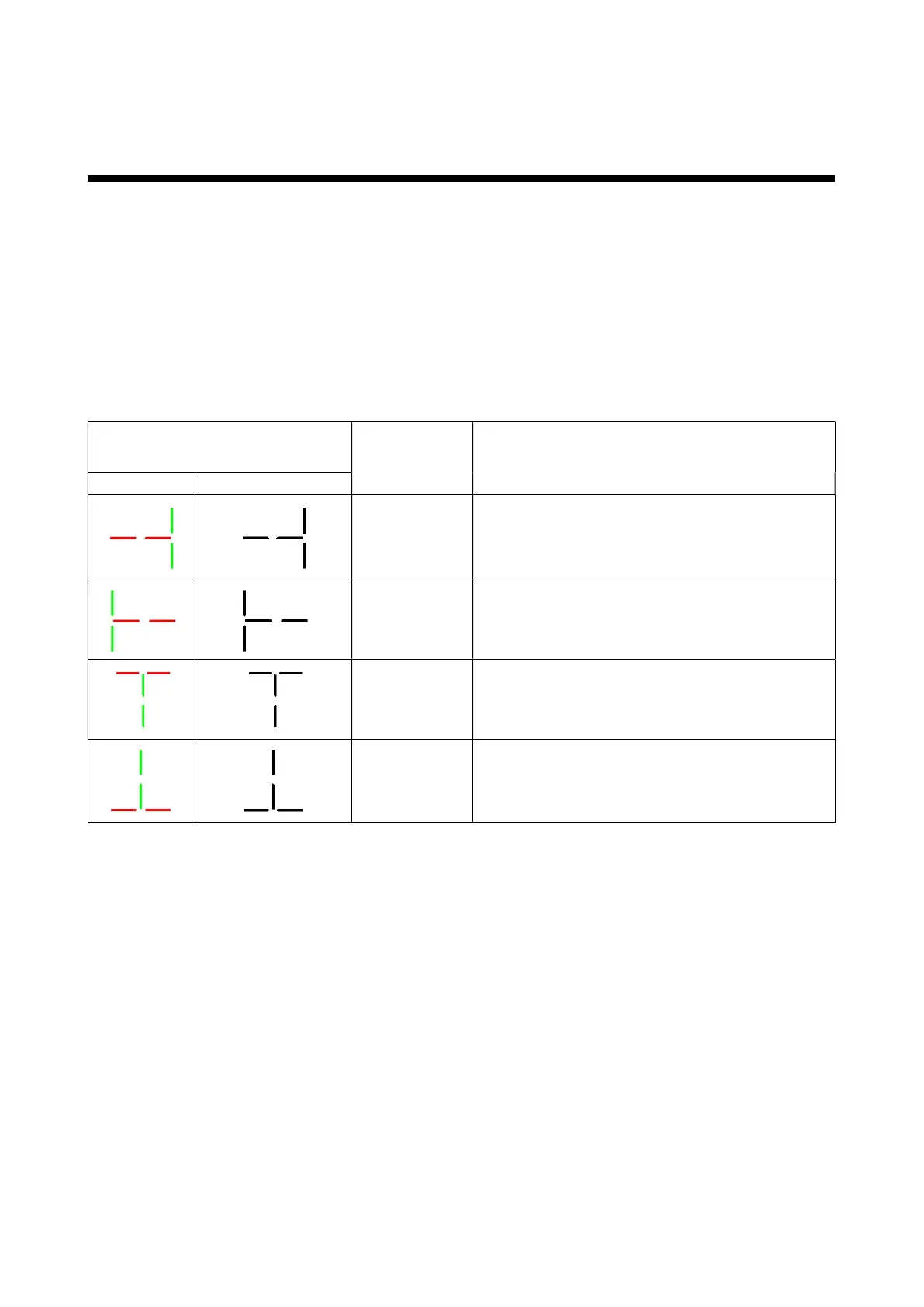

Subject’s vision
Button Correction
PLC-8000 PLC-8000pola
Mask_Right Add the BO prism powers until a cross is
formed.
Mask_Left Add the BI prism powers until a cross is
formed.
Mask_Up
Add the BD prism power to the right eye and
BU prism power to the left eye until a cross is
formed.
Mask_Down
Add the BU prism power to the right eye and
BD prism power to the left eye until a cross is
formed.
