Potter PFC-6200 - Twin Relay Module - 4 Inch Mount (TRM-4); Monitored Output Module - 4 Inch Mount (MOM-4)

3-20


   
          

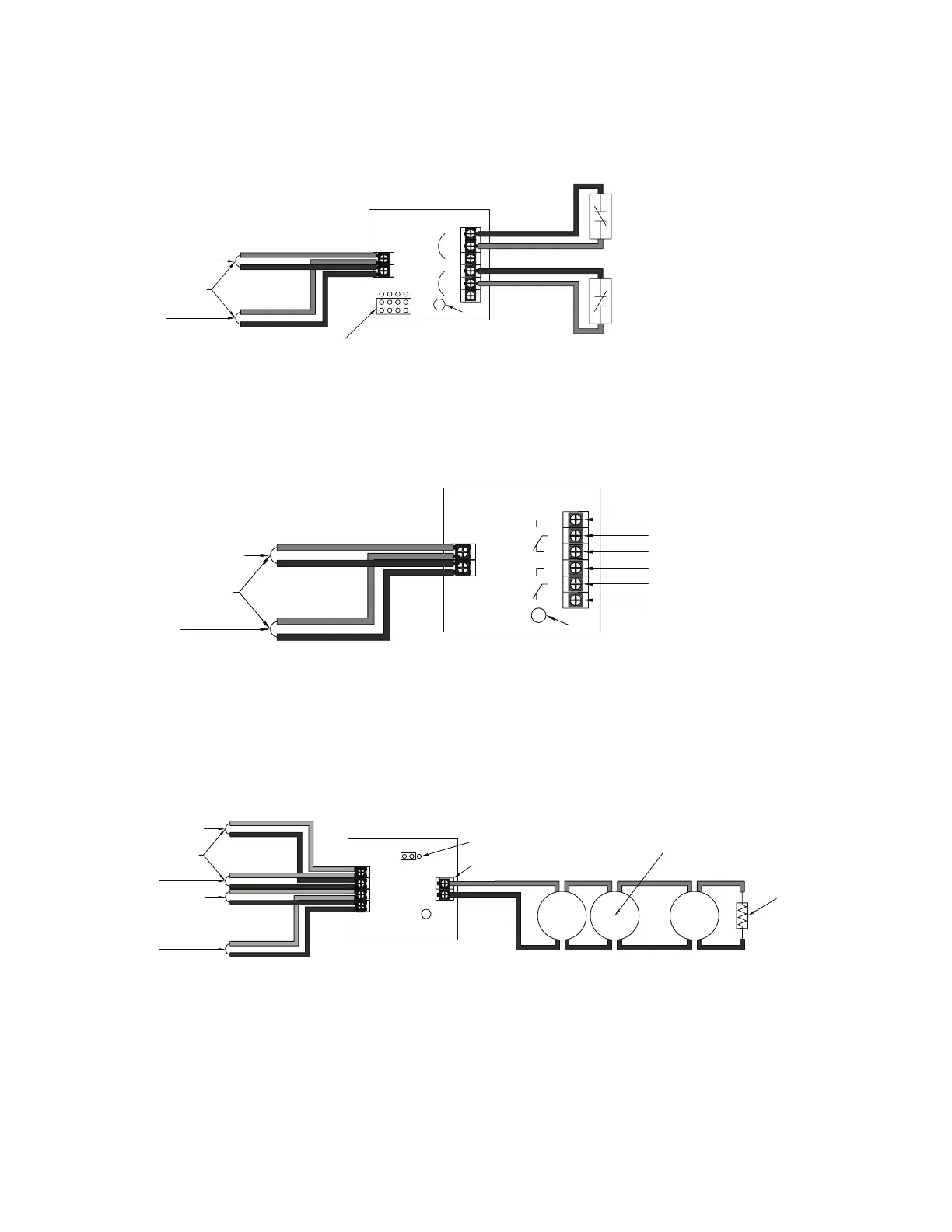

DCM-4 with Two Class B CircuitsFigure 16.
S-
S+
SLC Loop
T
o Next Module
From F A CP or Previous Module
Dual Contact Module
Model No. DCM-4
LED
Note: The resistance of external wiring shall be less that 100Ω.
The capacitance of external wiring shall be less than 1 micro farads.
JP1
Select Style 4
NO1
C1
Z1
NO2
C2
Z2
Address #
Address #+1
DWG #593-16
Twin Relay Module – 4 inch mount (TRM-4)


Example of TRM-4 WiringFigure 17.
S-
S+
SLC Loop
T
o Next Module
From FA CP or Previous Module
Twin Relay Module
Model No. TRM-4
LED
NO1
C1
NC1
NO2
C2
NC2
Contact Rating:
24VDC / 2.0A
125VAC / .5A
Normally Open 1
Common 1
Normally Closed 1
Normally Open 2
Common 2
Normally Closed 2
DWG. #593-17
Monitored Output Module – 4 inch mount (MOM-4)


Example of MOM-4 with NAC Connections Figure 18.
Monitored Output Module
Model No. MOM-4
Note: The resistence of external wiring shall be less that 100Ω.
The capacitance of external wiring shall be less than 1 micro farads.
From FACP or Previous Module
T
o Next Module
From FACP or Previous Module
T
o Next Module
24-
24+
S-
S+
A-
A+
SLC Loop
LED
JP1
Select DC
Notication Appliance
5.1KΩ 1/2W EOLR
_
+
_
+
_
+
Output Rating:
24VDC / 2.0A
DWG #593-18
